5OM-1732 3-1-19 元件配置图 1208-001 A Side B Side K3 K4 K1B K75 K77 侧面面板后 A 面 Symbol Block Parts Name Model Part No. Qt Main Applications K3 BA K3 G9SA-321-T075 1 K4 BA K4 G98X-NSA 222-T03RC 1 K1B BA RELA Y G7J-4A-B 1 K77 BA …
5OM-1732
3-1-18
元件配置图
1208-001

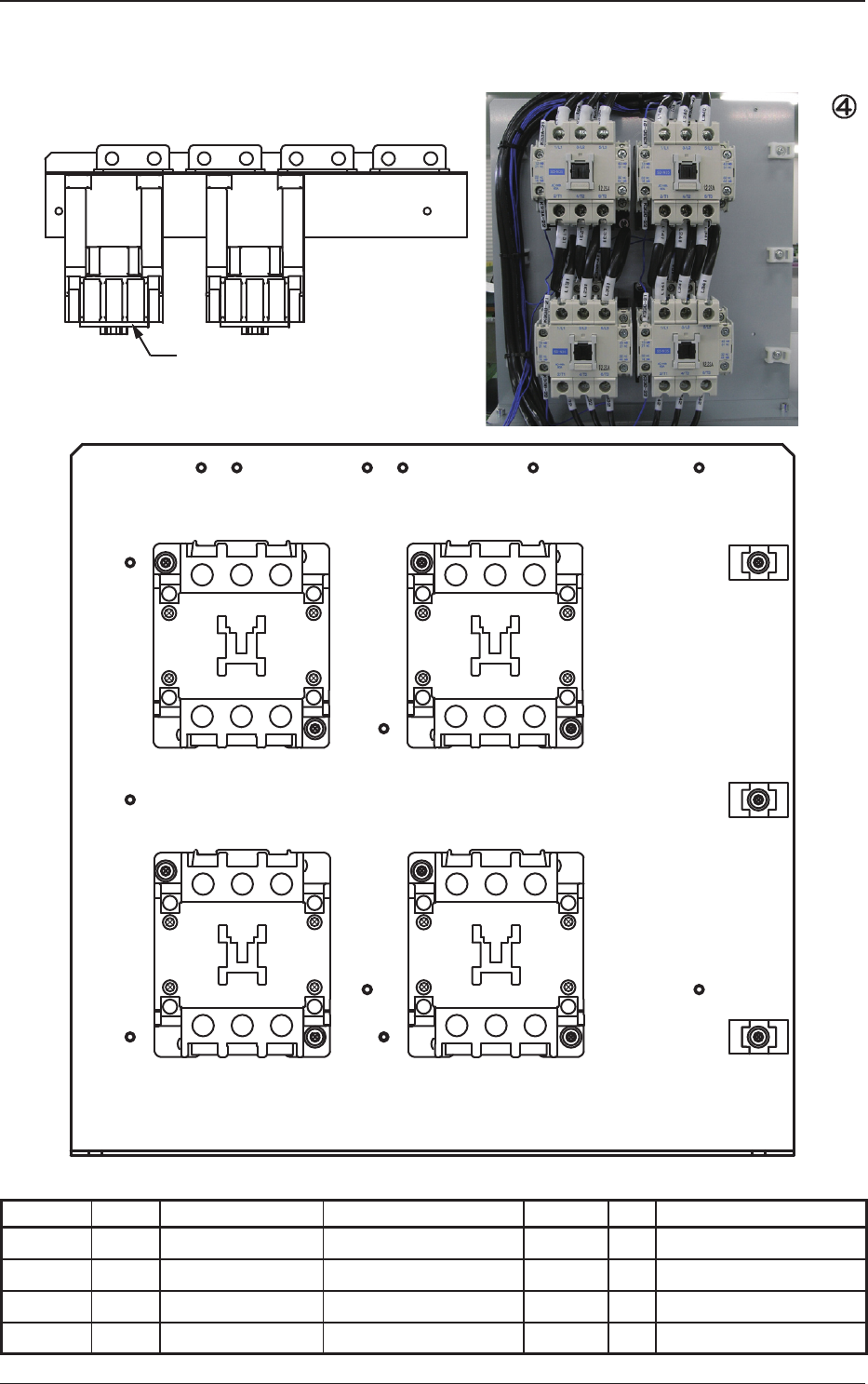

K33A K33C
K33B K33D
Inside
侧面面板中
Symbol Block Parts Name Model Part No. Qt Main Applications
K33A BA EM-CONTACTOR SD-N35CX 1 STAGE1 Servo
K33B BA EM-CONTACTOR SD-N35CX 1 STAGE1 Servo
K33C BA EM-CONTACTOR SD-N35CX 1 STAGE2 Servo
K33D BA EM-CONTACTOR SD-N35CX 1 STAGE2 Servo
5OM-1732
3-1-19
元件配置图
1208-001

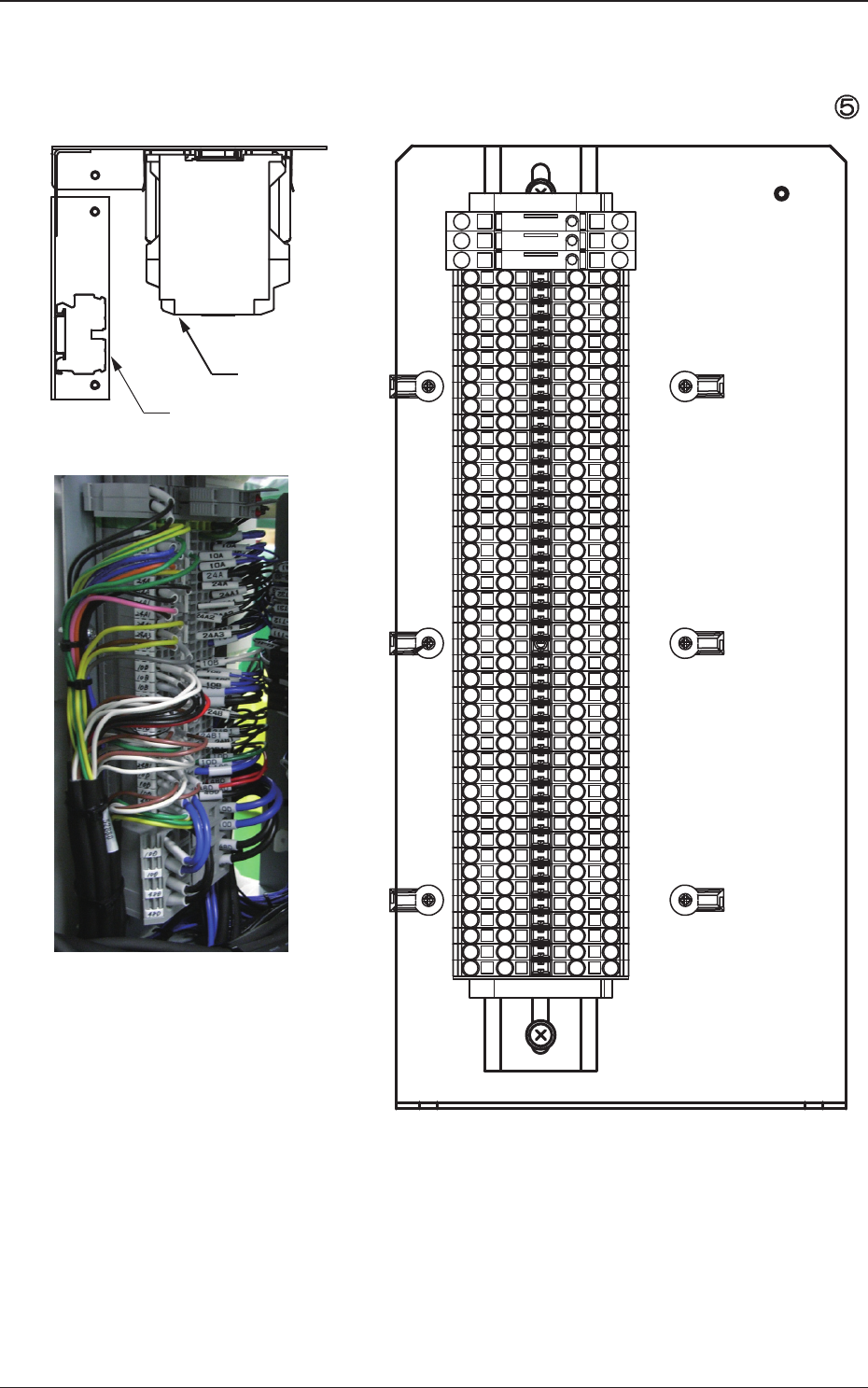

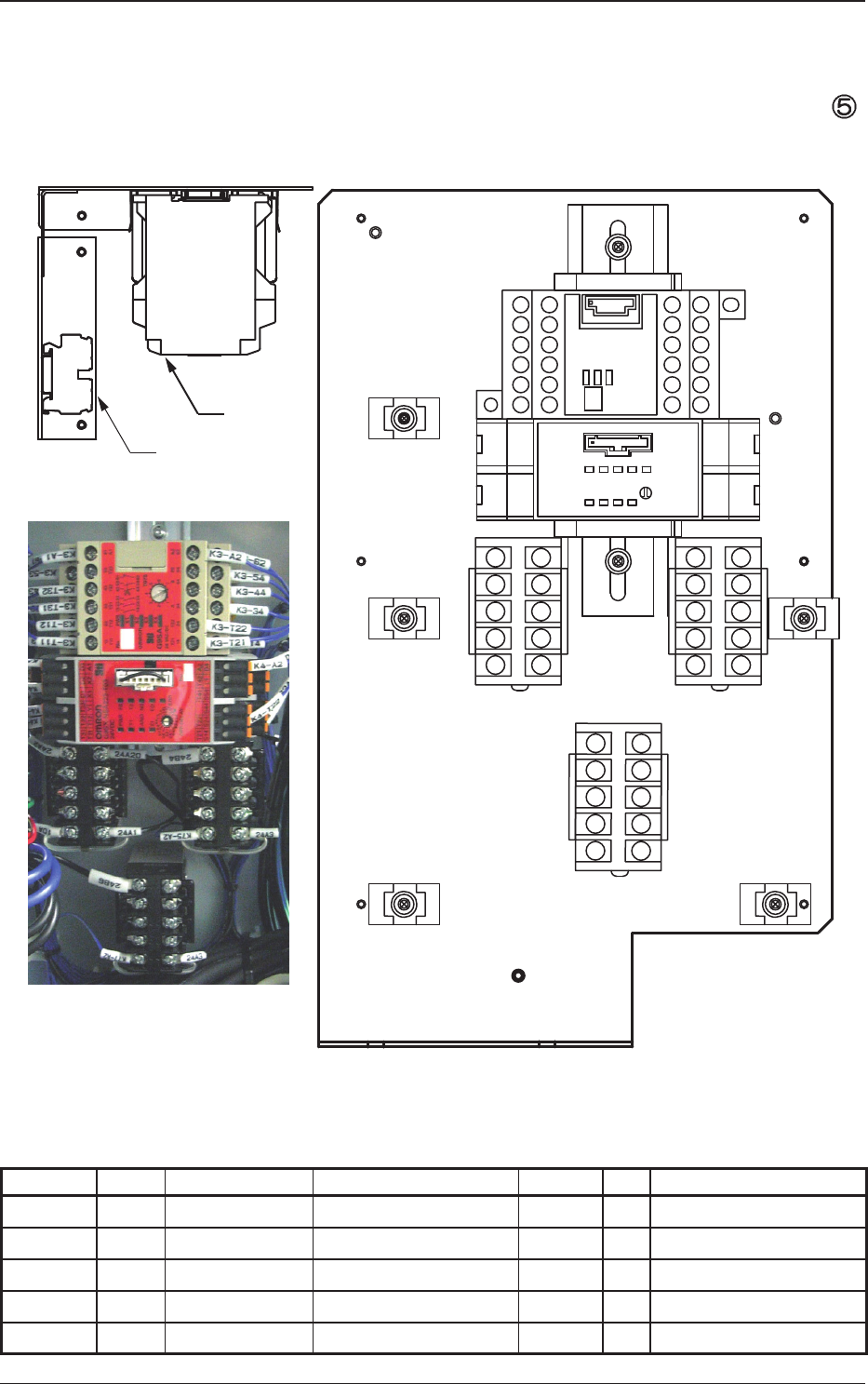

A Side
B Side
K3
K4
K1B
K75
K77
侧面面板后 A 面
Symbol Block Parts Name Model Part No. Qt Main Applications
K3 BA K3 G9SA-321-T075 1
K4 BA K4 G98X-NSA 222-T03RC 1
K1B BA RELAY G7J-4A-B 1
K77 BA RELAY G7J-4A-B 1
K75 BA RELAY G7J-4A-B 1
5OM-1732
3-1-20
元件配置图
1208-001
A Side
B Side
侧面面板后 B 面
