RV-1-Rev00.pdf - 第8页
A1 X ビームユニット X beam unit ｲﾗｽﾄ番 号 Ref.No. 部品コード Parts Code 部品名 Parts Name Serial No. 個数 Q'ty 備考 Remarks 同期 Repl. 1 EZ1- 492 - 189 - 13 ﾓ - ﾀ - ASSY (Y A ｼﾞｸ ) ASSY , MOTOR 1 2 EZ1- 492 - 189 - 23 ﾓ - ﾀ - ASSY (Y B ｼﾞ…

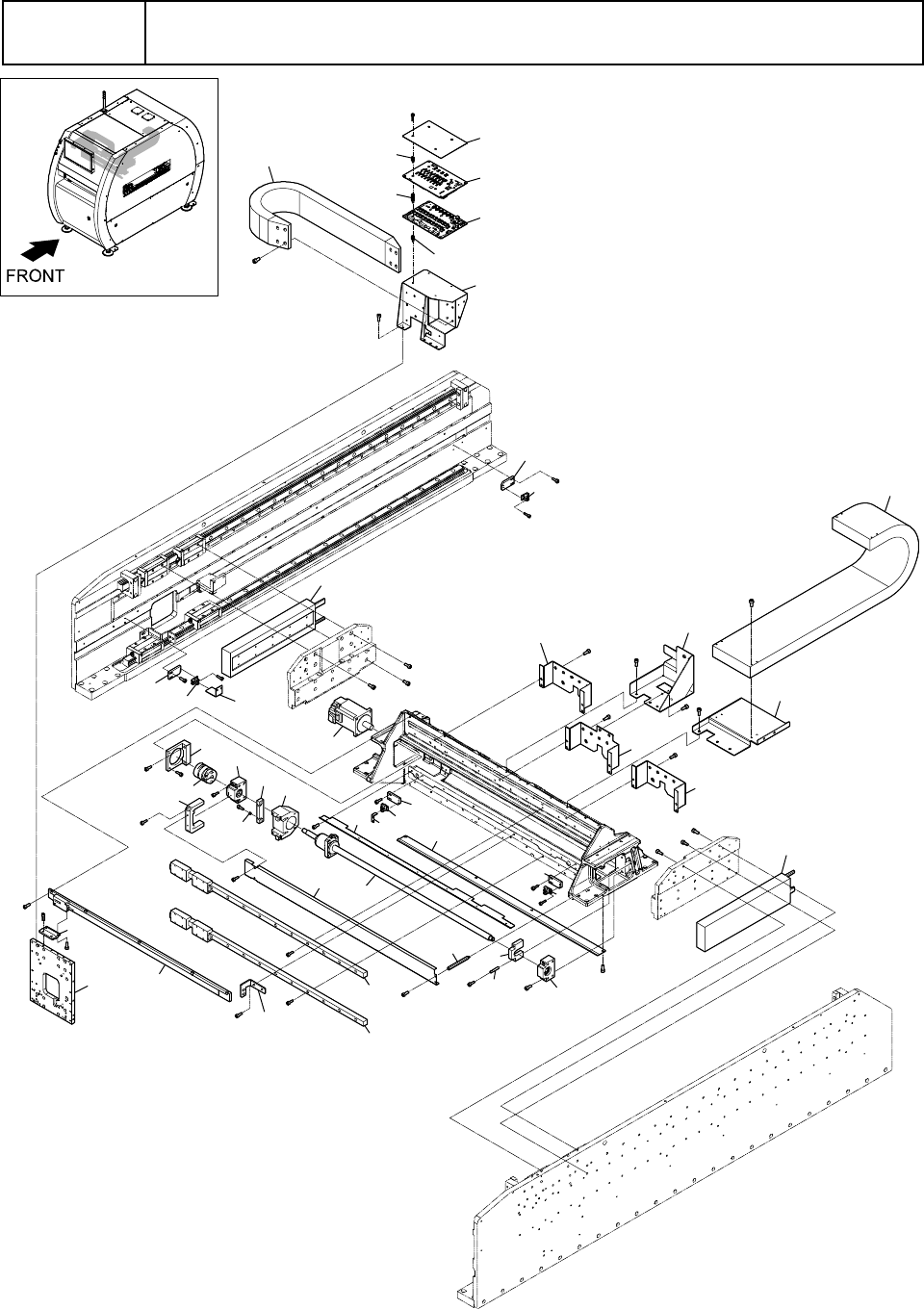

A1
X
ビームユニット
X beam unit
3
12
20
40
1
1
8
36
38
29
17
19
16
15
27
5
6
23
22
22
39
25
10
14
21
26
9
7
24
13
4
18
4
18
2
1
18
28
30
32
34
33
37
30
31
4
18
4
35
A-4
A1
X
ビームユニット
X beam unit
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 EZ1-492-189-13
ﾓ-ﾀ-
ASSY (YA
ｼﾞｸ
)
ASSY, MOTOR
1
2 EZ1-492-189-23
ﾓ-ﾀ-
ASSY (YB
ｼﾞｸ
)
ASSY, MOTOR
1
3 EZ1-492-272-11
ｽｹ-ﾙ ﾕﾆﾂﾄ
(ABS ST748A-600A-L)
SCALE UNIT (ABS ST748A-600A-L)
1
4 EZ1-492-322-11
ﾏｲｸﾛ ﾌｵﾄ ｾﾝｻ
(EE-SX974-C1)
SENSOR,PHOTOMICRO(EE-SX974-
C1)
4
5 EZ1-855-282-11
ｻ-ﾎﾞ ﾓ-ﾀ
-
(HF-MP43)
MOTOR, SERVO (HF-MP43)
1
6 EZ2-594-325-11
ｶﾂﾌﾟﾘﾝｸﾞ
(SFC-035DA2-10B-14B)
COUPLING (SFC-035DA2-10B-14B)
1
7 EZ4-452-178-02
X
ｽﾄﾂﾊﾟ- ﾌﾞﾛﾂｸ
X STOPPER BLOCK
1
8 EZ4-452-208-02
ﾀﾞｸﾄ ｽﾃ-
(2)
DUCT STAY (2)
1
9 EZ4-452-253-02
X
ｼﾞｸ ｽﾄﾂﾊﾟ-
(L)
X STOPPER (L)
1
10 EZ4-452-254-02
X
ｼﾞｸ ｽﾄﾂﾊﾟ-
(R)
X STOPPER (R)
1
11 EZ4-452-256-02
ﾀﾞｸﾄ ｽﾃ-
(3)
DUCT STAY (3)
1
12 EZ4-452-261-01
X
ｼﾞｸ ｾﾝｻ- ﾄﾞｸﾞ
SENSOR DOG (X)
1
13 EZ4-452-262-01
X
ｼﾞｸ ﾓ-ﾀ- ﾌﾞﾗｹﾂﾄ
X MOTOR BRACKET
1
14 EZ4-452-263-02
X
ﾍﾞ-ｽ ｼﾞﾖｲﾝﾄ
X BASE JOINT
1
15 EZ4-452-266-01
ﾎﾞ-ﾙ ﾈｼﾞ ｶﾊﾞ-
(1)
BALL SCREW COVER (1)
1
16 EZ4-452-267-01
ﾎﾞ-ﾙ ﾈｼﾞ ｶﾊﾞ-
(2)
BALL SCREW COVER (2)
1
17 EZ4-452-268-02
ﾀﾞｸﾄ ｽﾃ-
(1)
DUCT STAY (1)
1
18 EZ4-452-276-02
ｾﾝｻ ﾌﾞﾗｹﾂﾄ
SENSOR BRACKET
4
19 EZ4-452-281-01
ｱﾝﾀﾞ ｶﾊﾞ-
UNDER COVER
1
20 EZ4-452-290-02
ﾍﾂﾄﾞ ﾍﾞ-ｽ
BASE, HEAD
1
21 EZ4-455-747-01
ﾎﾞ-ﾙﾈｼﾞ
(SBK1520YS-3.6RRGT+714)
SCREW (SBK1520YS-3.6RRGT+714)
1
22 EZ4-455-748-01
LM
ｶﾞｲﾄﾞ
(SHS15V2UU+720-2)
LM GUIDE (SHS15V2UU+720-2)
2
23 EZ4-455-749-01
ｻﾎﾟ-ﾄ ﾕﾆﾂﾄ
(BF12)
SUPPORT UNIT (BF12)
1
24 EZ4-455-750-01
ｻﾎﾟ-ﾄ ﾕﾆﾂﾄ
(BK12)
SUPPORT UNIT (BK12)
1
25 EZ4-455-755-01
ｽﾍﾟ-ｻ
(SMKB4-30)
SPACER (SMKB4-30)
2
26 EZ4-455-756-01
ｽﾍﾟ-ｻ
(SMKB4-4)
SPACER (SMKB4-4)
2
27 EZ4-455-757-01
ﾛﾂｶｸ
ｼﾁﾕｳ
(SLSBWF7-72)
SUPPORT (SLSBWF7-72),
HEXAGON
2
28 EZ4-455-751-01
ｹ-ﾌﾞﾙﾍﾞｱ
(TKP35H22-30W63R75-1*)
BARE(TKP35H22-30W63R75-17L-F*)
1
29 EZ4-455-790-02
ｹ-ﾌﾞﾙﾍﾞｱ
(TKP13H10-20WR28-34L*)
BARE (TKP13H10-20WR28-34L-FO-*)
1
A-5
A1
X
ビームユニット
X beam unit
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
30 EZ4-459-210-21
ﾛﾂｶｸ
ｼﾁﾕｳ
(M4-10)
SUPPORT (M4-10), HEXAGON
8
31 EZ4-459-210-11
ﾛﾂｶｸ
ｼﾁﾕｳ
(M4-20)
SUPPORT (M4-20), HEXAGON
4
32 EZ4-459-207-03
LED
ﾄﾞﾗｲﾌﾞ
ｷﾊﾞﾝ
ｶﾊﾞ
-
COVER, LED DRIVE PC BOARD
1
33 EZ1-734-191-11
LED MASTERSLAVE
ｼﾕｳｺﾞｳ
ﾊｲｾﾝﾊﾞﾝ
PWB, LED MASTERSLAVE
COMBINED
1
34 EZ1-888-211-11
LED MASTER
ﾊｲｾﾝﾊﾞﾝ
PWB, LED MASTER
1
35 EZ4-452-273-01
Y
ｾﾝｻ- ﾄﾞｸﾞ
(1)
Y SENSOR DOG (1)
1
36 EZ4-452-275-02
X
ｹ-ﾌﾞﾙ ﾍﾞｱ ﾌﾞﾗｹﾂﾄ
(2)
BRACKET, X CABLE BARE (2)
1
37 EZ4-452-276-02
ｾﾝｻ
ﾌﾞﾗｹﾂﾄ
SENSOR BRACKET
1
38 EZ4-452-279-03
Y
ｹ-ﾌﾞﾙ ﾍﾞｱ ﾌﾞﾗｹﾂﾄ
Y CABLE BARE BRACKET
1
39 EZ4-452-269-01
X
ｺﾃｲｸﾞ
X RETAINER
1
40 EZ4-452-264-02
ｽｹ-ﾙ ﾌﾞﾗｹﾂﾄ
(X)
SCALE BRACKET (X)
1
EZ3-278-403-11
ｺﾞｸﾃｲﾄｳﾛﾂｶｸｱﾅﾂｷﾎﾞﾙﾄ
(CBSTS4-6)
BOLT, HEXAGON SOCKET (CBSTS4-
6
4
EZ4-456-435-11
ｸﾐｺﾐ
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(CBST3-12)
BOLT (CBST3-12), HEXAGON HOLE
4
EZ4-700-040-31
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M5X15)
BOLT (M5X15), HEXAGON SOCKET
28
EZ4-700-042-41
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
(M4X15)
BOLT (M4X15), HEXAGON SOCKET
24
EZ4-701-097-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾎﾞﾙﾄ
M4X45
BOLT (M4X45), HEXAGON SOCKET
2
EZ7-683-403-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
3X6
BOLT,HEXAGON SOCKET 3X6
8
EZ7-683-418-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X6
BOLT,HEXAGON SOCKET 4X6
11
EZ7-683-419-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X8
BOLT,HEXAGON SOCKET 4X8
5
EZ7-683-420-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X10
BOLT,HEXAGON SOCKET 4X10
4
EZ7-683-421-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X12
BOLT,HEXAGON SOCKET 4X12
18
EZ7-683-428-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X40
BOLT, HEXAGON SOCKET 4X40
2
EZ7-683-434-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
5X8
BOLT,HEXAGON SOCKET 5X8
12
EZ7-683-435-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
5X10
BOLT,HEXAGON SOCKET 5X10
4
EZ7-683-447-04
6
ｶｸｱﾅﾂｷ
ﾎﾞﾙﾄ
5X50
BOLT,HEXAGON SOCKET 5X50
2
EZ7-683-459-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
6X25
BOLT,HEXAGON SOCKET 6X25
2
EZ7-683-465-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
6X40
BOLT,HEXAGON SOCKET 6X40
6
EZ4-452-347-01
ｼﾘｱﾙ
NO.
ﾗﾍﾞﾙ
(
ﾑｼﾞ
) (1446)
LABEL (PLAIN),SERIAL NO.(1446)
1
EZ4-455-994-01
ｹｲｺｸ
ﾗﾍﾞﾙ
(
ｹｶﾞ
ﾌｸｺﾞｳ
)
LABEL (HURT), WARNING
2
A-6
