A 19 斜めカメラ Oblique camera ｲﾗｽﾄ番 号 Ref.No. 部品コード Parts Code 部品名 Parts Name Serial No. 個数 Q'ty 備考 Remarks 同期 Repl. 1 EZA- 1920 - 886 -A LED AGG MOUNT LED AGG MOUNT 1 2 EZA- 1923 - 522 -B LED TOP COMPL LED TOP COMPL 1 …

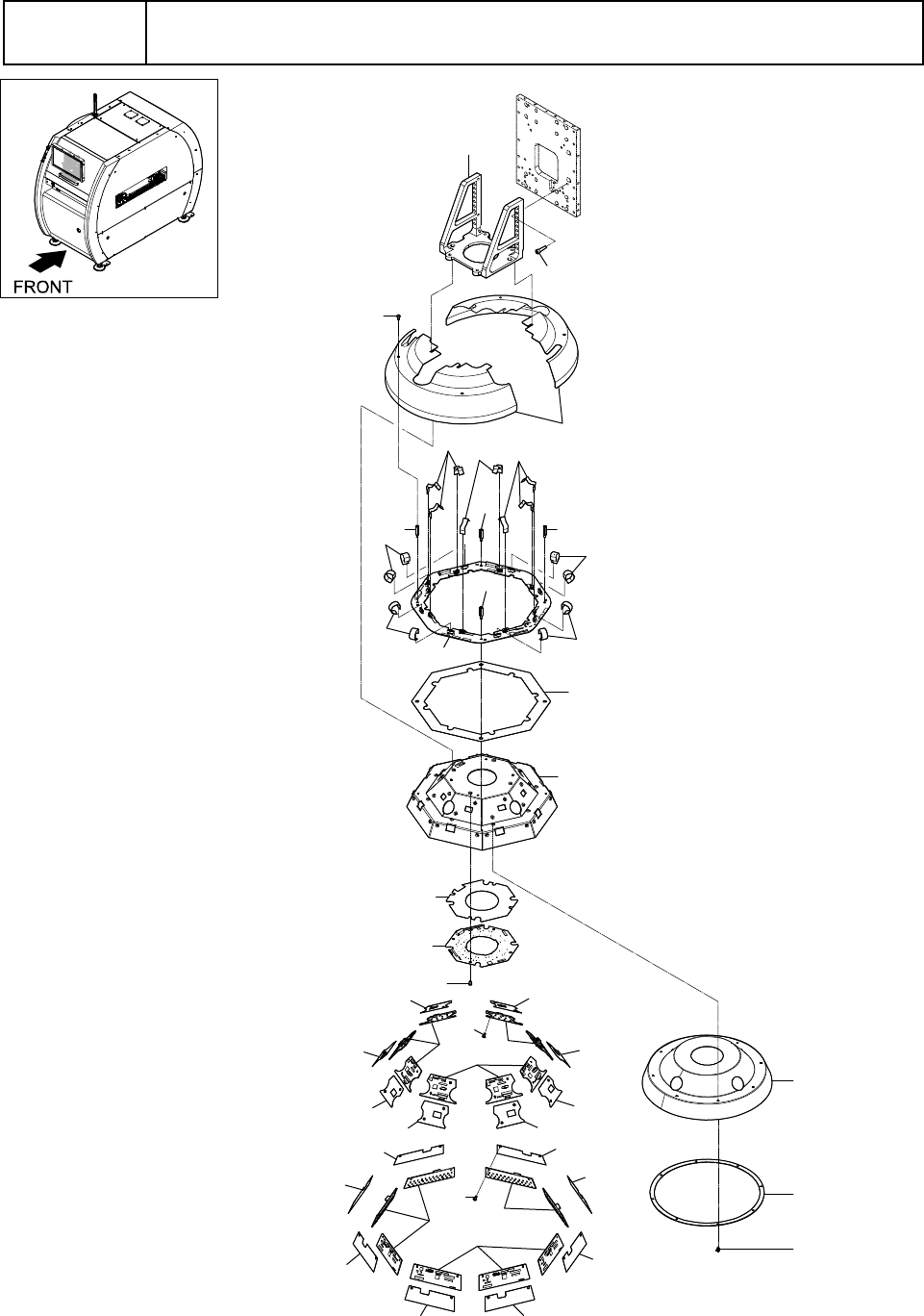

A19
斜めカメラ
Oblique camera
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 EZA-1920-886-A
LED AGG MOUNT
LED AGG MOUNT
1
2 EZA-1923-522-B
LED TOP COMPL
LED TOP COMPL
1
3 EZA-1923-523-B
LED MID COMPL
LED MID COMPL
8
4 EZA-1923-524-B
LED LOW COMPL
LED LOW COMPL
8
5 EZ1-837-348-11
ﾌﾚｷｼﾌﾞﾙ ﾌﾗﾂﾄ ｹ-ﾌﾞﾙ
(8P)
CABLE, FLEXIBLE FLAT (8P)
8
6 EZ1-837-349-11
ﾌﾚｷｼﾌﾞﾙ ﾌﾗﾂﾄ ｹ-ﾌﾞﾙ
(10P)
CABLE, FLEXIBLE FLAT (10P)
8
7 EZ4-452-180-02
ｾﾞﾂｴﾝ ｼ-ﾄ
INSULATING SHEET
1
8 EZ4-486-581-41
ｼﾁﾕｳ
(SUM-18)
SUPPORT (SUM-18)
4
9 EZ4-452-298-03
ｷﾊﾞﾝ ﾍﾞ-ｽ
BASE, PC BOARD
1
10 EZ4-452-299-03
ｶｸｻﾝﾊﾞﾝ
(RING)
ILLUMINATOR (RING)
1
11 EZ4-452-300-01
ｶｸｻﾝﾊﾞﾝ
ｵｻｴ
RETAINER, ILLUMINATOR
1
12 EZ4-452-301-04
ﾀｲﾈﾂ ﾃ-ﾌﾟ
(LOW)
TAPE (LOW), HEAT-RESISTING
8
13 EZ4-452-302-03
ﾀｲﾈﾂ ﾃ-ﾌﾟ
(MID)
TAPE (MID), HEAT-RESISTING
8
14 EZ4-452-303-04
ﾀｲﾈﾂ ﾃ-ﾌﾟ
(TOP)
TAPE (TOP), HEAT-RESISTING
1
15 EZ4-452-315-01
ｼﾖｳﾒｲ
ﾌﾞﾗｹﾂﾄ
BRACKET, ILLUMINATION
1
16 EZ4-456-217-01
ｼﾖｳﾒｲ ｶﾊﾞ-
(
ｻｲﾄﾞ
ｶﾒﾗ
)
ILLCOVER (SIDE CAMERA)
2
17 EZ4-462-661-01
ｺﾞｸﾃｲﾄｳ
ﾎﾞﾙﾄ
(CBSR3-6)
BOLT, SUPER LOW HEAD (CBSR3-6)
48
18 EZ7-683-440-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
5X20
BOLT,HEXAGON SOCKET 5X20
4
A-64

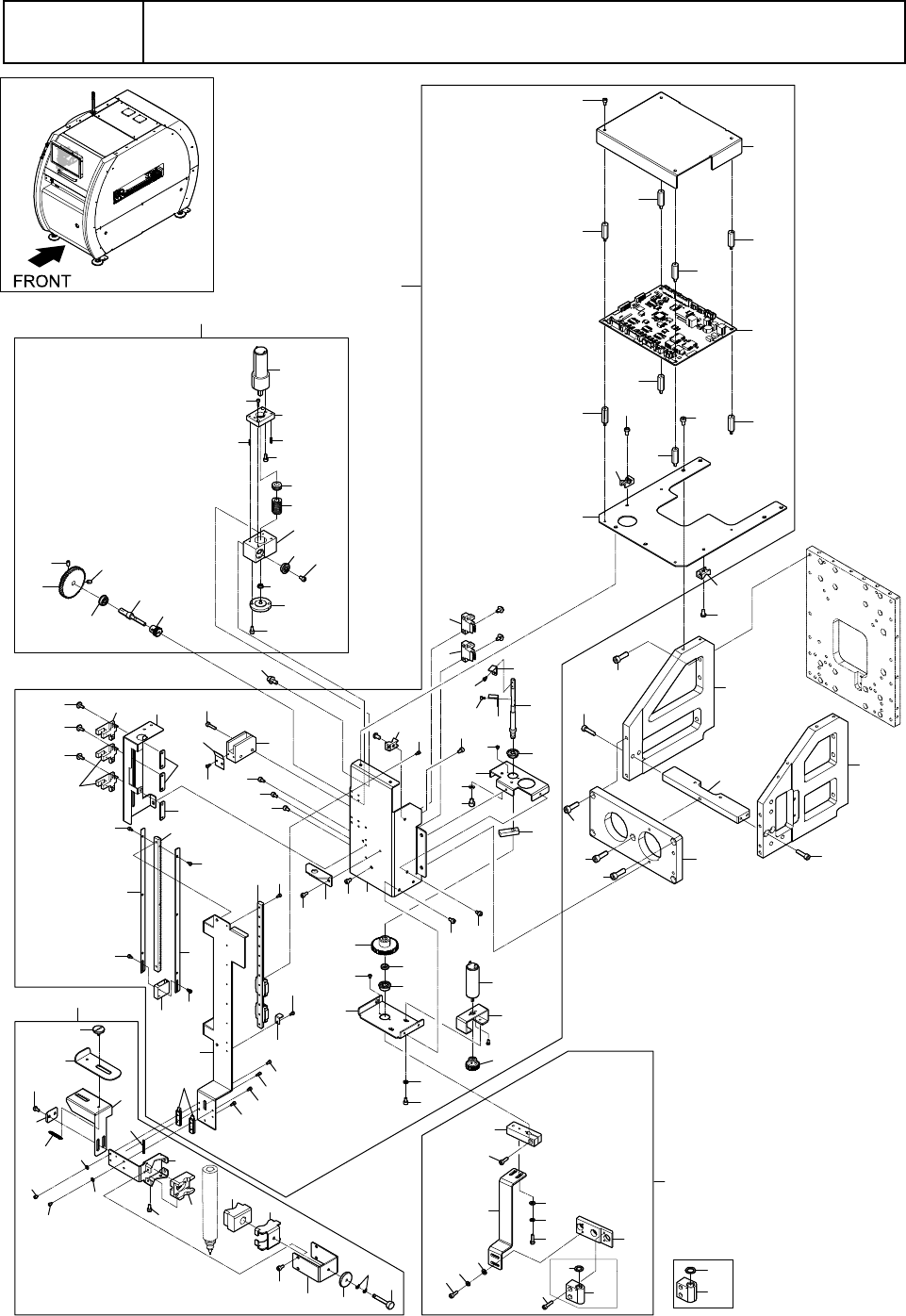

A20
マーキングユニット
Marking unit
38
46
5
38
38
38
1
10
38
11 7
7
95
99
99
16
16
25
52
46
46
46
27
52
46
52
52
15
43
11
11
28
83
83
38
38
38
51
34
34
52
52
56
24
61
58
64
66
98
91
90
88
88
92
96
94
49
29
26
93
101
89
97
89
100
44
45
39
36
86
52
52
47
52
20
14
54
72
42
17
53
52
65
52
52
18
31
46
19
46
46
72
54
59
63
67
57
74
69
71
70
74
68
73
60
62
21
13
12
35
30
6
75
87
33
9
22
40
13
46
83
51
85
85
85
85
84
8
8
15
82
3
2
85
4
23
48
77
48
82
55
78
55
82
48 80
81
50
37
32
76
79
82
A-65
