4 Setting up and commissioning
4.4 Main power supply
User Manual SIPLACE Nozzle Cleaning Station 09/2019 39
4.4 Main power supply
DANGER
Dangerous voltage levels!
The machine is supplied with 1 x 220 V~ ± 10 %, 50/60 Hz or optionally with 1 x 110 V~ ±
10%; 50/60 Hz mains voltage. This means that some parts of the system carry potentially
lethal voltages - even when switched off at the main power switch.
Incorrect handling of the nozzle cleaning station can therefore result in death or severe in-
jury or considerable damage to equipment.
The following components still carry potentially lethal voltages even if the main power
switch is switched off:
► Always follow the applicable accident prevention and DIN regulations (particularly
EN60204, part 1 or IEC 60204, part 1) and the applicable regulations in your own
country.
► The safety door to the power supply must ONLY be opened by appropriately qualified
and trained personnel.
4.4.1 Checking the main power supply

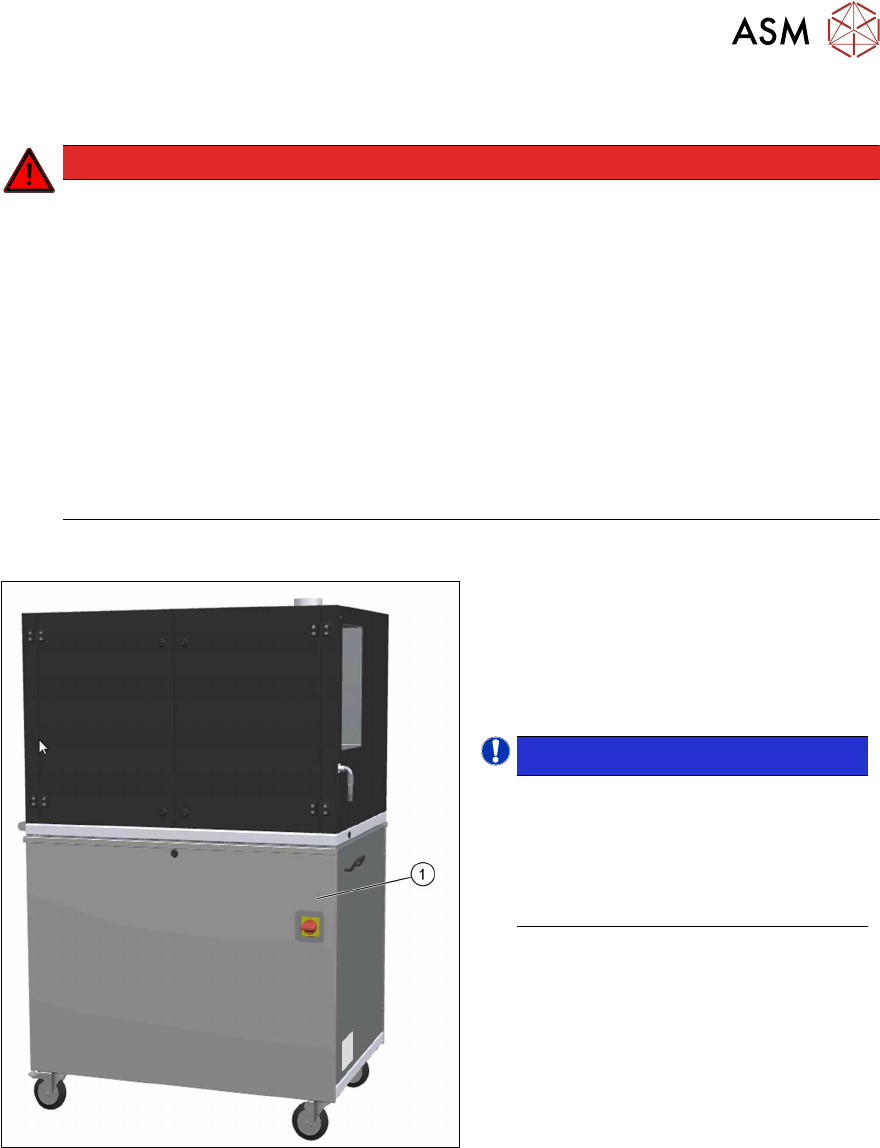

Fig.21: NCS - main power supply
Check whether the main power supply(1)
complies with the prescribed machine spe-
cifications (see table in section 3.2.3 "Com-
pressed air supply and compressed air spe-
cification" [}27]).
NOTICE!
Load peaks in power supply
For technical reasons, load peaks
occur in the power supply.
Please contact your power company to
clarify the mains impedance, if neces-
sary
.
4 Setting up and commissioning
4.5 Setting up the nozzle cleaning station
40 User Manual SIPLACE Nozzle Cleaning Station 09/2019
4.5 Setting up the nozzle cleaning station
Fig.22: NCS - roller and clamping system
► Move the nozzle cleaning station to it fi-
nal location and secure it in position us-
ing the clamping at the rollers.
Fig.23: NCS - leveling aid
► Open the front cover.
► Align the NCS by the screws until the
bubble sits in the middle of the level.
4 Setting up and commissioning
4.5 Setting up the nozzle cleaning station
User Manual SIPLACE Nozzle Cleaning Station 09/2019 41
Fig.24: NCS - main connections
► Connect the NCS(1) to your local duct
system (tube Ø100mm).
► Connect compressed air supply(2).
► Connect power supply(3).
NOTICE!
Protective earth (PE)
Connect the protective earth (PE) line
according to applicable local regula-
tions.
.
NOTICE
Standard "E" type socket
The electrical connection of the device is adapted to the standard "E" type sockets. If you
need to use a different standard, replace the supplied plug with a suitable replacement.
DESIGNATION → POTENTIAL
1 → L
2 → N
YELLOW-GREEN → PE
