4 Setting up and commissioning
4.5 Setting up the nozzle cleaning station
User Manual SIPLACE Nozzle Cleaning Station 09/2019 45
4.5.1.2 Fitting the tip cleaning module
The assembly of the tip cleaning modules can be done from the front of the NCS and requires no
additional tools.

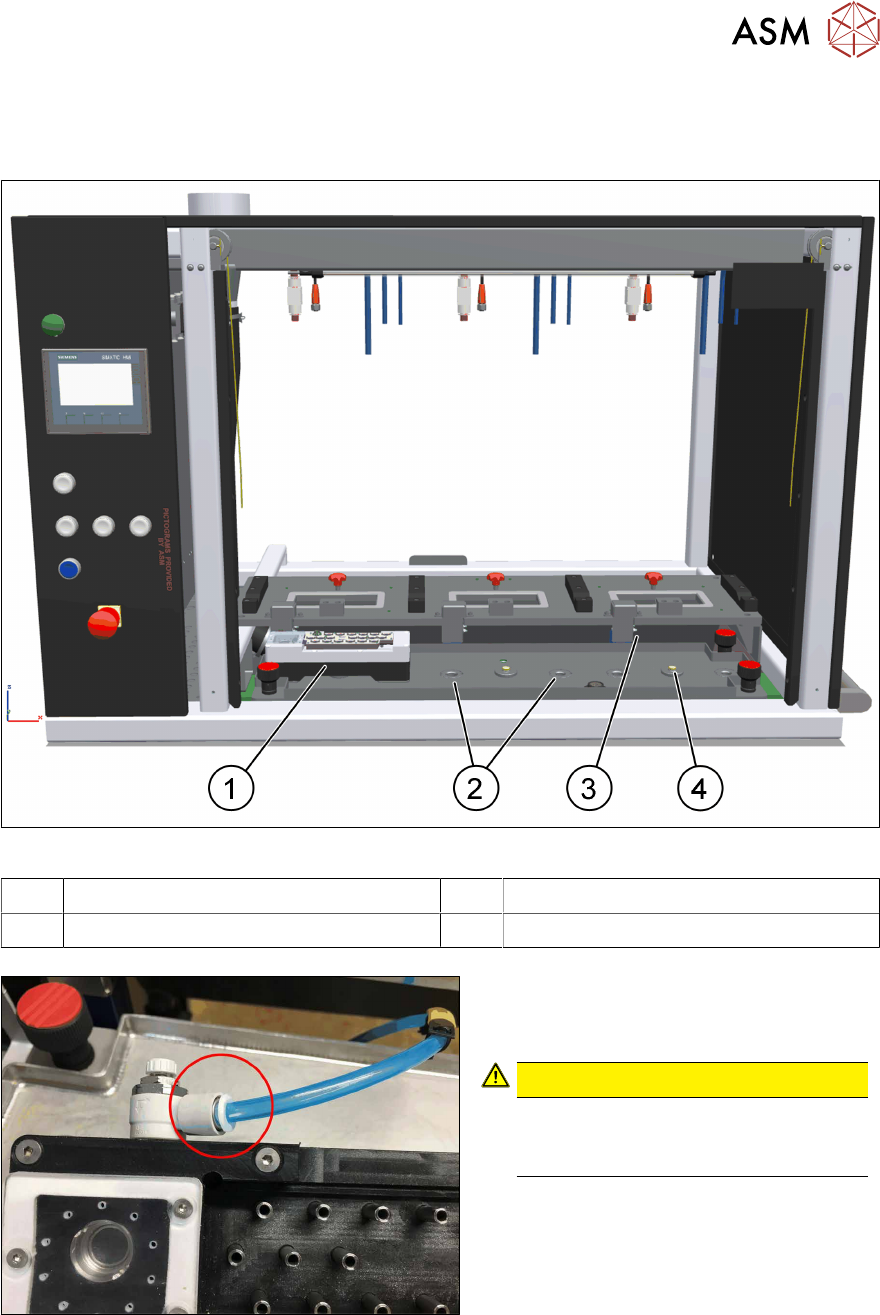

Fig.30: NCS - tip cleaning cell
1 Tip cleaning module 2 Drainage and fixing of the module
3 Supply of the cleaning solution 4 Sensor for module recognition
Fig.31: Connection
► Plug in the connection for the supply of
the cleaning agent.
CAUTION!
Prevent fluid injection
Make sure that all connections carry-
ing liquid are firmly in place.
.
4 Setting up and commissioning
4.5 Setting up the nozzle cleaning station
46 User Manual SIPLACE Nozzle Cleaning Station 09/2019
Fig.32: O-rings
► Dampen the o-ring at the left and right
with water.
► Position both connector over the drain
holes in the base plate.
Fig.33: Module on base plate
► Turn the module and push it firmly in
place so the underside sits plane on
the base plate.
5 Tasks at the nozzle cleaning station
5.1 Filling and draining the Container
User Manual SIPLACE Nozzle Cleaning Station 09/2019 47
5 Tasks at the nozzle cleaning station
5.1 Filling and draining the Container
The cleaning of SIPLACE ceramic nozzles requires 3 different liquids and runs in 4 steps.
●
Nozzle tip cleaning (KG15+ from ASM)
●
Nozzle tip rinsing (Demi water)
●
Nozzle shaft cleaning (Vigon SC)
●
Nozzle drying (compressed air)
All liquids must be replaced frequently as they saturate more and more over the time used. The
cycle time to exchange the liquids depends heavily on the surrounding conditions and the degree
of pollution. In average they should be exchanged after 1000 – 1500cycles.
Liquid Qty Part number
NCS additive KG15 nozzle tip cleaner 5l 03172986-xx
Zestron Vigon SC different Local distributor
Demineralized water different Local supplier
5.1.1 Container for demineralized water
The demineralized water containers are in the lower part at the back of the NCS.
DANGER
Risk of damage / life!
Before changing the cleaning modules, stop the machine operation and disconnect it from
the power supply with the main power switch.
CAUTION
Hazardous material
The demi in the wastewater container can contain residues of KG15+, solder paste and
metal particles from components.
► Observe the applicable safety data sheet and consider existing local regulation for dis-
posing of hazardous materials.
NOTICE
Level control
The level in the demi container is sensor controlled. If the level drops below the sensor the
NCS stops operation.
Make sure that there is enough liquid in the container.
