USER
SETUP
Chapter Issue 3, August 14 Reel to Reel Manual 2.5
cover the vacuum holes that are redundant behind the rear clamps.
34. If required, adjust the transport carriage belts to suit the product reel, see
Adjustments and Settings - Transport Carriage Belts in the Technical Refer-
ence chapter of this manual.
35. Ensuring that the reel of product material is correctly aligned to the machine,
feed the product reel into the machine on the inroad conveyor ensuring that
the product reel is between the two product guides without any ripples or
creases.
36. Continue to feed the product reel past the rising table, ensure that the
Product Guides
View on Left Hand Side of the Machine
USER
SETUP
2.6 Reel to Reel Manual Chapter Issue 3, August 14
product reel is fed under the front and rear board clamps.
37. Feed the product reel through the four clamps on the outroad conveyor.

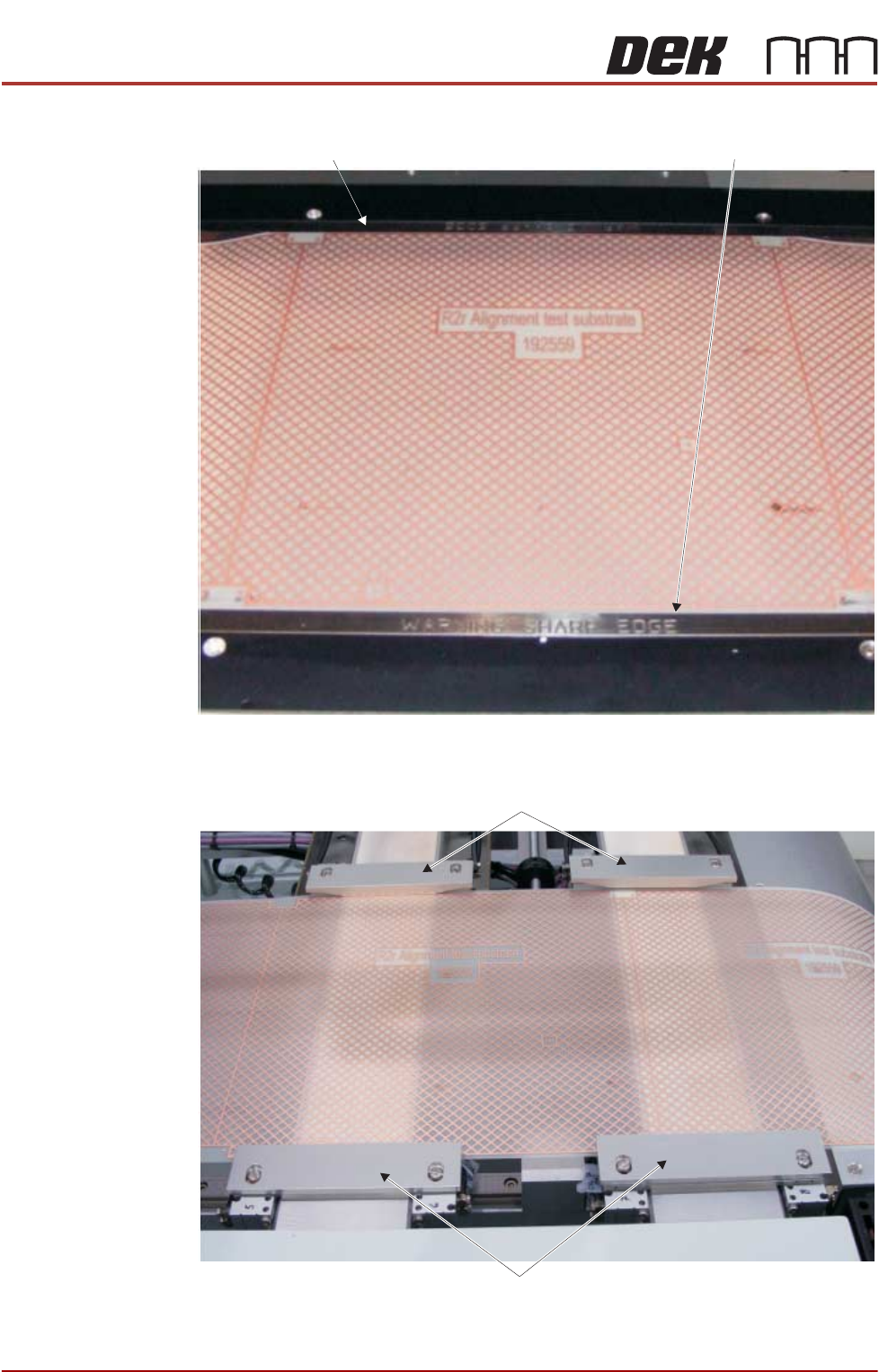

Front Board ClampRear Board Clamp
View on the Tooling Area of the Machine
Rear Clamps
Front Clamps
View on Right Hand Side of the Machine
USER
SETUP
Chapter Issue 3, August 14 Reel to Reel Manual 2.7
38. Move the product reel to align the product to the centre of the tooling and
board clamps. Ensure that the image on the product reel is slightly to the
left as the product reel can only be jogged towards the outroad.
39. Insert the screen into the machine.
40. Close the front cover.
41. Press the System button.
42. Select Back.
43. Select Load Screen.
44. Select Setup Product.
45. Select Reel to Reel.
46. Ensure that Index Length is set to the correct length for the product.
47. Ensure that Product Length is set to the correct length for the product.
48. Ensure that Feeder Speed and Feeder Acceleration are correct according
to the job sepcification sheet.
49. Ensure that Backoff Length is correct for the product.
NOTE
The backoff length creates a loop of product reel that has print material on
it. The loop prevents this from coming into contact with the screen.
50. Select Move to Fiducial Board 1.
51. If the fiducial is not in the centre of the view screen, select Jog Feeder.
52. Press the right hand jog button to move the product reel until the fiducial
comes in to the centre of the view screen.
NOTE
The product reel can only be jogged towards the outroad conveyor. To
reverse, select Board Clamps and pull the product reel back manually.
