Guarantees the quality of the products you produce
and deliver. The Post-Seal In-Tape Inspection eliminates
quality defects - bringing customer complaints and eld
recall rates close to 0 PPM. The PHIXEL IHW has a fast
convertible for 7-13-inch” carrier tape reel diameter and
auto conversion for dierent carrier tape widths up to
32mm. With AOI cellular network architecture for recipe
management and Advanced Defect Classication (ADC)
by hybrid analysis, the Post-Seal In-Tape Inspection
outperforms market competition to go above and
beyond your customers’ requirements.
The only post-tape
inspection equipment on
the market providing full
inspection capability
18
ITEC - PRODUCT PORTFOLIO
Specications
Imaging system
• Camera: 5M pixels area camera
monochrome
• Number of cameras: 2: 1 (top) + 1 (bottom)
• Resolution/Field of view: 4 - 16 µm/pixel
FOV: 10 mm to 40 mm
• Minimum object detection: 16 µm
• Lighting: Compound lighting
Inspection categories
• Program mode: Fast programming
for common reject criteria
• Reject treatment: Electronic map
• Inspection view: Top (and angle camera
for lead lift-up defect as upgrade option)
Key features
Application
• Inspection after taping to detect
orientation, lead, mark, seal, package
surface defect, reel label and quantity
Key features
• Min. 5 MP camera for top & bottom
inspection
• AOI cellular network architecture
for recipe management
• Reel size: 7” to 13”
• Throughput: up to 120,000 UPH
(subject to package size & pitch)
• Option: tilted lead defect vision
• Cu exposure detection under development
• Package: leaded, leadless, and WLCSP
• Carrier tape width: 8 to 32 mm
(auto track width)
• Advanced Defect Classication (ADC)
• SEMI standard with SECS/GEM interface
• Option: real-time data feeding to MES
and eSPC
• Option: auto email alert (defect/batch
summary)
Inspection items
• Marking defects: Unclear mark (faded
character). Shift mark (misaligned
marking). Incomplete mark. Double mark
(multiple character). Vertical mark (wrong
orientation). No mark. Mixed marking
• Moulded Package defects: Bubbles/
bulge. Voids/pin holes. Crack. Broken body.
Chipping Scratch. Unmoulded. Incomplete
ll. Foreign material
• Lead Package defects: Mould ash
on/along lead. Foreign material and
contamination. Exposed wire/clip. Ejector
mark. Visible wire Solder bridging. Bent
lead/lead angle. Lead sweep. Lead length.
Lead spacing/span. Lead cuts/depressions/
damage. Lead burr. Missing lead. Lead
length. Incomplete lead forming. Metal burr
• Taping defects: Loose/unseal cover tape.
Cover tape misalignment. Damaged/
contamination cover tape. Deformed/
damaged cavity. Damaged bottom tape.
Chipped/broken body. Mixed product. Edge
sealing. Unseal tape. Oset sealing.
• Cover tape tearing. Product tilting

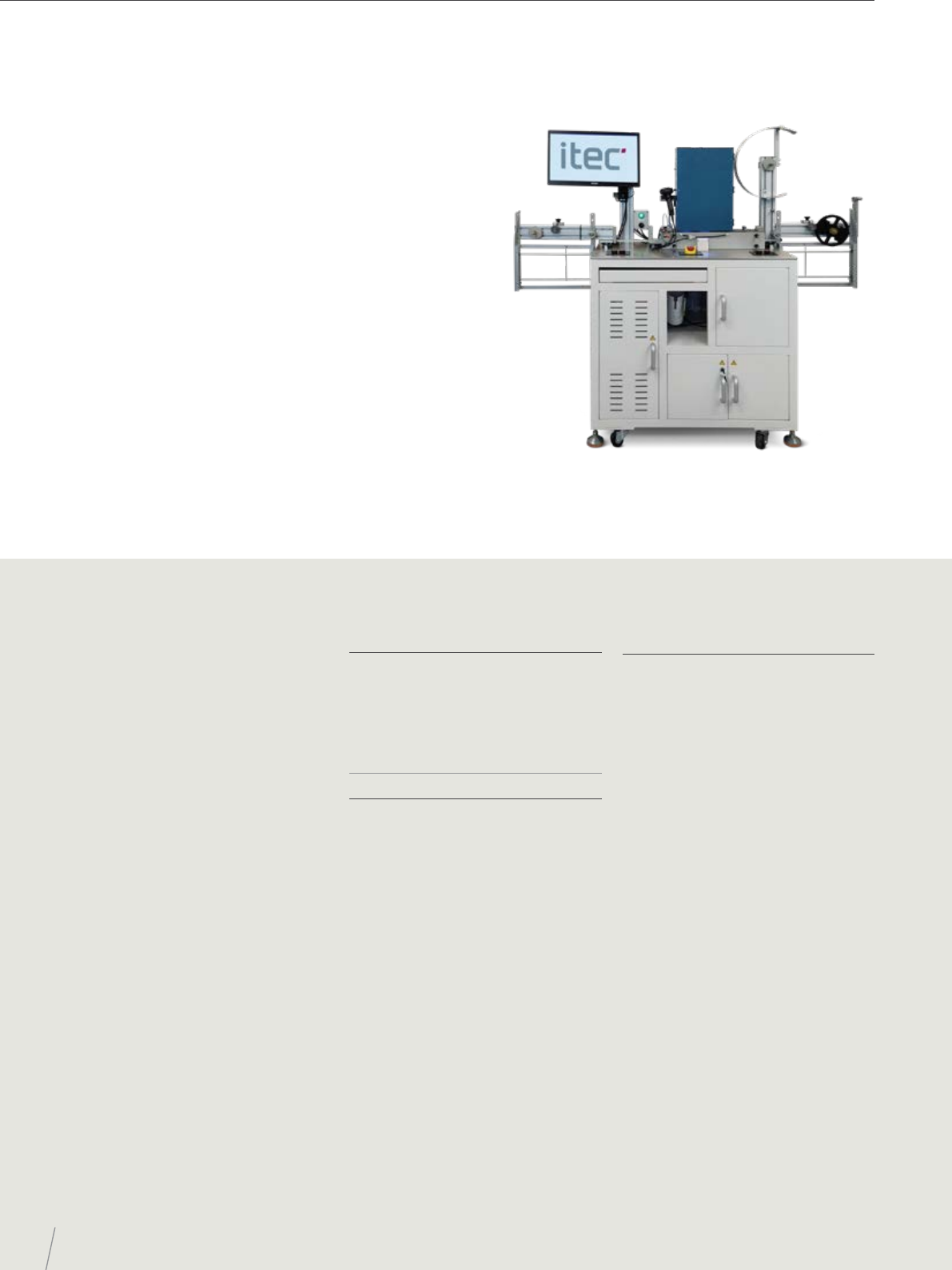

PHIXEL IHW - POST-SEAL IN-TAPE INSPECTION
