MODEL TCM-3500Z-2
0109-001
164
R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION
Fig. 8-2 ࠦࡦࡌࠕ㚟േㇱ Conveyor Driver
See Fig.8-1
See Fig.8-1
Key No.2
9
9
10
11
12
12
13
14
15
15
13
14
15
10
11
12
16
17
16
17
4
3
2
8
7
8
7
5
6
8
7
8
1
2
3
4
5
6
7
1
MODEL TCM-3500Z-2
0109-001
165
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
8-2
1 630 064 8140 BRACKET(MOTOR) 2 678H--02B-010
2 630 003 2574 GEAR,REDUCTION 2 678H--02H-016
3 630 049 0831 MOTOR,REVERSIBLE 2 M4, M100, 3RK15GN-AUL 100V
678H--02H-015
4 411 141 4107 WASHER V 5X10X1 4 FW5
5 411 141 6705 WASHER SPR 5 4 SW5
6 630 000 7824 BOLT,HEX-SCT 4 M5X45
7 630 009 2684 PULLEY,TIMING 4 678H--02H-017
8 630 000 8944 SET SCREW 8 M5X6 SET
9 630 013 6296 BELT,TIMING 2 678H--02H-036
10 411 141 4107 WASHER V 5X10X1 2 FW5
11 411 141 6705 WASHER SPR 5 2 SW5
12 630 000 7749 BOLT,HEX-SCT 2 M5X10
13 630 001 0220 WASHER 2 678H--02H-027
14 411 141 6705 WASHER SPR 5 2 SW5
15 630 000 7756 BOLT,HEX-SCT 2 M5X12
16 630 061 0055 COVER(MOTOR) 2 678H--02B-032
17 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
MODEL TCM-3500Z-2
0109-001
166
R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION

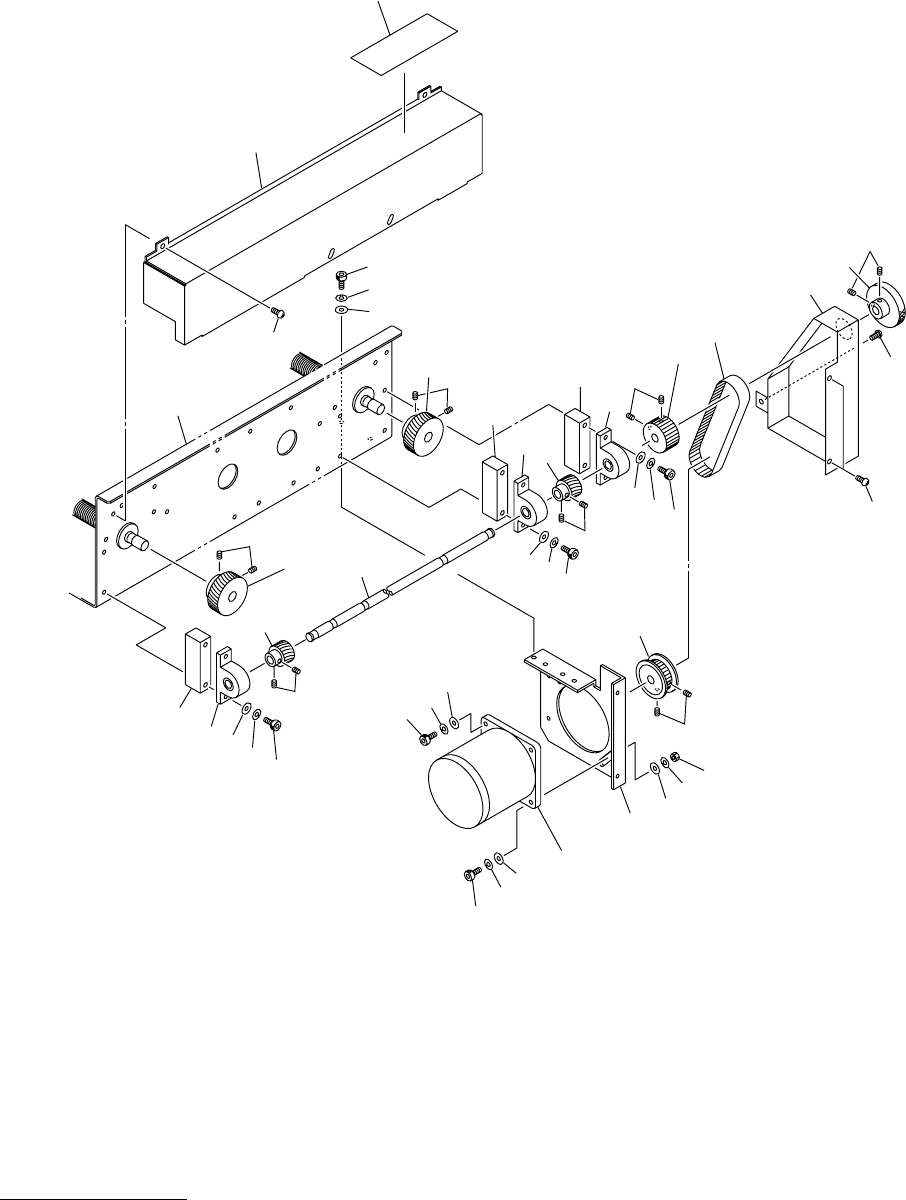

Fig. 8-3 ࠼ࠗࡉࠪࡖࡈ࠻ Driving Shaft
1
2
3
4
5
4
5
6
6
6
7
8
9
7
8
9
7
8
9
6-1
6-1
6-1
6-1
2
1
41
41
42
42
17
16
35
36
36
38
38
39
39
37
37
21
22
23
33
33
34
28
29
30
30
27
27
26
25
27-1
27-1
26
26
25
25
24
24
20
See Fig.8-1
Key No.2
50
50
