MODEL TCM-3500Z-2 0109-001 187 Key N o. P AR T No. P AR T NAME Q’ t y REMA RKS NOTE 10-3 1 630 064 2087 S O LE NO ID V A L VE 1 678F--02H-030 1 -2 630 081 3609 SO LE NO I D V AL VE 2 SV3 2, SV1 06 1 - 3 630 081 3593 S O …
MODEL TCM-3500Z-2
0109-001
186
ⓨᓮㇱ PNEUMATIC SECTION

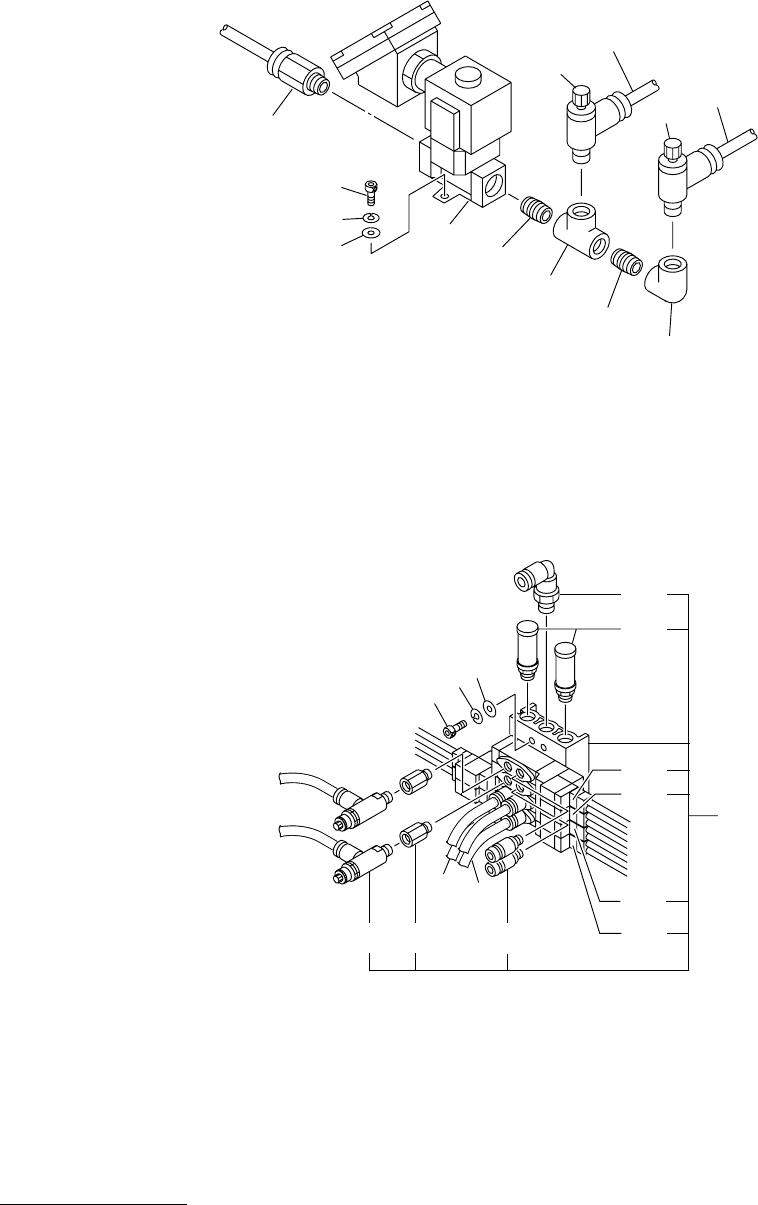

Fig.10-3 ࠛࠕ㈩▤ Air Piping
21
22
22
23
23
25
26
29
29
28
28
27
27
41
42
42
22
24
25
1
2
3
4
11
11
12
12
1-8 1-7 1-6
1-3
1-3
1-2
1-2
1-5
1-4
MODEL TCM-3500Z-2
0109-001
187
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
10-3
1 630 064 2087 SOLENOID VALVE 1 678F--02H-030
1 -2 630 081 3609 SOLENOID VALVE 2 SV32, SV106
1 -3 630 081 3593 SOLENOID VALVE 2 SV24A, SV24B, SV31A, SV31B
1 -4 630 052 1993 PIPE FITTINGS 1
1 -5 630 003 6541 AIR LINE EQPT 2
1 -6 630 040 4067 PIPE FITTINGS 2
1 -7 630 003 8293 PIPE FITTINGS 2
1 -8 630 065 7296 AIR LINE EQPT 2
2 411 141 4008 WASHER V 4X9X0.8 2 FW4
3 411 141 2905 WASHER SPR 4 2 SW4
4 630 000 7688 BOLT,HEX-SCT 2 M4X30
21 630 000 1709 SOLENOID VALVE 1 SV30 678L--02H-014
22 630 003 8163 PIPE FITTINGS 2
23 630 003 8064 PIPE FITTINGS 1
24 630 003 7821 PIPE FITTINGS 1
25 630 003 6688 AIR LINE EQPT 2 678L--02H-015
26 630 031 8579 PIPE FITTINGS 1 678L--02H-016
27 411 141 4008 WASHER V 4X9X0.8 2 FW4
28 411 141 2905 WASHER SPR 4 2 SW4
29 630 000 7619 BOLT,HEX-SCT 2 M4X8
MODEL TCM-3500Z-2
0109-001
188
2
A
A
3
4
5
7
6
8
9
10
10
6-1
6-1
B
B
10
12
11
11
13
14
20
17
18
18
19
21
25
25
22
23
24
24
21
41
42
26
26
32
31
33
34
75
75
71
71
72
73
73
74
74
36
57
55
38
38
39
40
40
56-2
56-1
56-1
56-1
56
57
51
37
37
65
66
67
67
68
87
81
81
82
82
82
82
83
83
83
83
84
84
84
84
85
1
86
16
16
52
51
53
54
5-1
5-1
5-2
5-2
Fig.11-1
TCM-3500Z-2
TCM-3000Z-2
㔚᳇ᓮㇱ ELECTRICAL SECTION

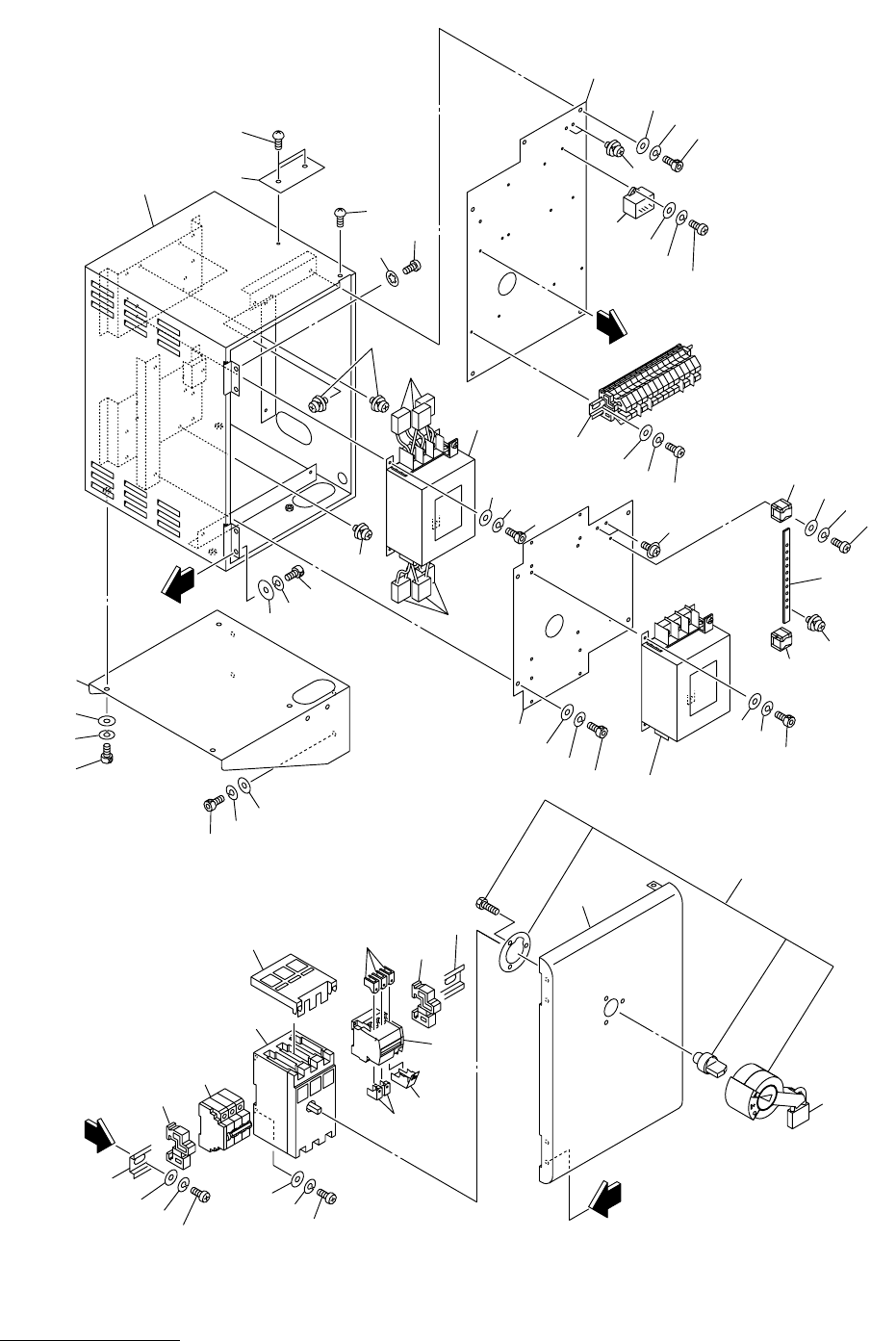

Fig.11-1 ৻ᰴ㔚Ḯ Power Supply-Primary
