B-23 B11 サーボモーター配線図 Wiring diagram servo motor 26
B10
INFO
出力・電磁弁配線図
Wiring diagram (solenoid valves and output wiring)
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 EZ1-969-156-12
ﾊ-ﾈｽ
(
ﾒ-ﾀ- ﾁﾕｳｹｲ
)
HARNESS
1
2 EZ1-492-188-11
ｴｱ ｾﾝｻ
-
ASSY
ASSY, AIR SENSOR
1
3 EZ1-969-160-12
ﾊ-ﾈｽ
(
ｱﾜ- ﾒ-ﾀ-)
HARNESS
1
4 EZ1-489-826-21
ｱﾂﾘﾖｸ ｾﾝｻ-
(ISE30A-01-N-MLB)
SENSOR, PRESSURE (ISE30A-01-N*
1
5 EZ1-520-538-12
ｱﾜ- ﾒ-ﾀ-
(H7ET-NFV-300)
METER, HOUR (H7ET-NFV-300)
1
6 EZ1-969-253-14
ﾊ-ﾈｽ
(ST, BZ
ﾁﾕｳｹｲ
)
HARNESS
1
7 EZ1-492-187-12
ﾌﾞｻﾞ-
ASSY
ASSY, BUZZER
1
8 EZ1-492-186-12
ｼｸﾞﾅﾙ ﾀﾜ-
ASSY
ASSY, SIGNAL TOWER
1
9 EZ1-504-859-11
ﾃﾞﾝｼ ﾌﾞｻﾞ
-
(EB1124)
BUZZER, ELECTRON (EB1124)
1
10 EZ1-483-486-11
ｼｸﾞﾅﾙ ﾀﾜ
-
(ME-302A-RYG)
SIGNAL TOWER
1
11 EZ1-969-563-11
HARNESS (ST, BZ RELAY PASS)
HARNESS (ST, BZ RELAY PASS)
1
12 EZ1-969-565-11
HARNESS (DW3-RY5)
HARNESS (DW3-RY5)
1
13 EZ1-969-561-11
HARNESS (TB10-RY5 7)
HARNESS (TB10-RY5 7)
1
15 EZ1-969-251-13
ﾊ-ﾈｽ
(
ﾃﾞﾝｼﾞﾍﾞﾝ
ﾁﾕｳｹｲ
)
HARNESS
1
16 EZ1-969-151-12
ﾊ-ﾈｽ
(
ﾃﾞﾝｼﾞﾍﾞﾝ
ｾｲｷﾞﾖ
)
HARNESS
1
17 EZ1-969-152-12
ﾊ-ﾈｽ
(
ｼﾖｳﾒｲ
ﾃﾞﾝｹﾞﾝ
)
HARNESS
1
18 EZ1-969-439-11
ﾊ-ﾈｽ
(
ｼﾖｳﾒｲ
ﾃﾞﾝｹﾞﾝ
ﾁﾕｳｹｲ
)
HARNESS
1
B-22
B-23
B11

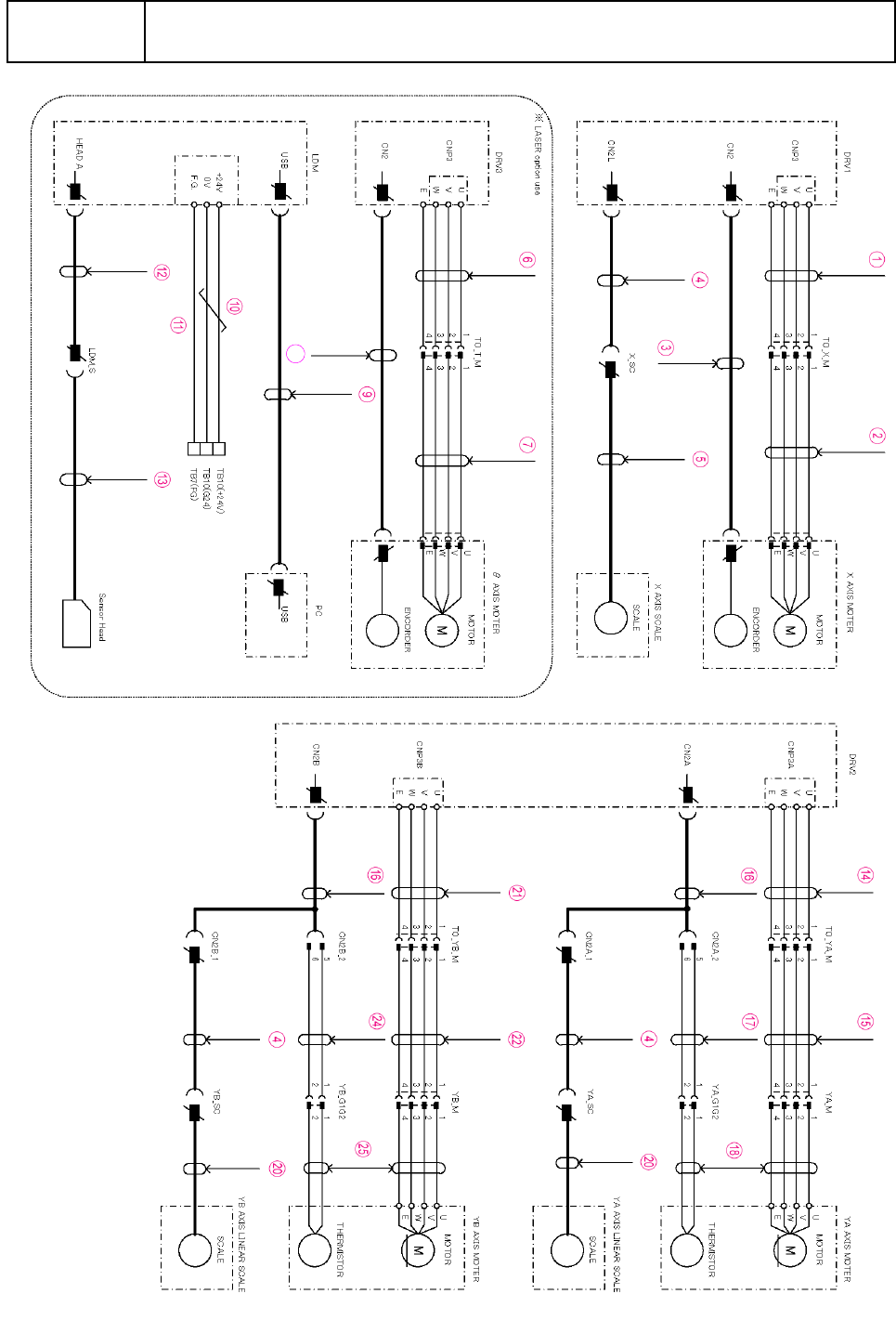

サーボモーター配線図
Wiring diagram servo motor
26
B-24
B11
サーボモーター配線図
Wiring diagram servo motor
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 EZ1-969-436-12
ﾊ-ﾈｽ (X ｼﾞｸ ﾓ-ﾀ-)
HARNESS
1
2 EZ1-492-313-13
ｹ-ﾌﾞﾙ ASSY (X ｼﾞｸ ﾓ-ﾀ- ﾁﾕｳｹｲ)
CABLE ASSY(X AXIAL MOTOR TRA*)
1
3 EZ1-846-587-11
ｴﾝｺ-ﾀﾞ-ｹ-ﾌﾞﾙ (MR-J3ENCBL5M-A1*)
CABLE,ENCODER (MR-J3ENCBL5M-
A*)
1
4 EZ1-846-582-11
ﾌｲ-ﾄﾞﾊﾞﾂｸ ｹ-ﾌﾞﾙ (NO.06 ACF117A)
CABLE, FEEDBACK (NO.06
ACF117A)
3
5 EZ1-492-272-11
ｽｹ-ﾙ ﾕﾆﾂﾄ (ABS ST748A-600A-L)
SCALE UNIT (ABS ST748A-600A-L)
1
6 EZ1-969-437-13
ﾊ-ﾈｽ (ｼ-ﾀ ｼﾞｸ ﾓ-ﾀ-)
HARNESS
1
7 EZ1-492-314-13
ｹ-ﾌﾞﾙ ASSY (ｼ-ﾀ ｼﾞｸ ﾓ-ﾀ- ﾁﾕｳｹｲ)
CABLE ASSY (THETA AXIAL
MOTOR*)
1
9 EZ1-846-831-11
USB CABLE (KU20-EC3)
USB CABLE (KU20-EC3)
1
10 EZ1-969-194-12
ﾊ-ﾈｽ (ﾚ-ｻﾞ- ﾃﾞﾝｹﾞﾝ)
HARNESS
1
11 EZ1-969-195-12
ﾊ-ﾈｽ (ﾚ-ｻﾞ- ｱ-ｽ)
HARNESS
1
12 EZ1-846-591-11
ｾﾝｻ- ｴﾝﾁﾖｳ ｹ-ﾌﾞﾙ (HL-C2CCJ5)
CABLE,SENSOREXTENSION (HL-
C2C*)
1
13 EZ1-492-276-11
ﾚ-ｻﾞ- ﾍﾝｲ ｾﾝｻ- (HL-C203BE)
SENSOR,LASERDISPLACEMENT
(HL-*)
1
14 EZ1-969-148-13
ﾊ-ﾈｽ (YA ｼﾞｸ ﾓ-ﾀ-)
HARNESS
1
15 EZ1-969-438-13
ﾊ-ﾈｽ (YA ｼﾞｸ ﾓ-ﾀ- ﾁﾕｳｹｲ)
HARNESS
1
16 EZ1-846-585-11
ﾓ-ﾀ- ﾁﾕｳｹｲｹ-ﾌﾞﾙ (MR-J4THCBL03M)
CABLE,MOTORTRANSLATION (MR-
J4*)
2
17 EZ1-969-165-14
ﾊ-ﾈｽ (YA ｼﾞｸ ｻ-ﾐｽﾀ)
HARNESS
1
18 EZ1-492-189-13
ﾓ-ﾀ- ASSY (YA ｼﾞｸ)
ASSY, MOTOR
1
20 EZ1-492-272-21
ｽｹ-ﾙ ﾕﾆﾂﾄ (ABSST748A-1000A-L)
SCALE UNIT (ABSST748A-1000A-L)
2
21 EZ1-969-148-23
ﾊ-ﾈｽ (YB ｼﾞｸ ﾓ-ﾀ-)
HARNESS
1
22 EZ1-969-438-22
ﾊ-ﾈｽ (YB ｼﾞｸ ﾓ-ﾀ- ﾁﾕｳｹｲ)
HARNESS
1
24 EZ1-969-165-24
ﾊ-ﾈｽ (YB ｼﾞｸ ｻ-ﾐｽﾀ)
HARNESS
1
25 EZ1-492-189-23
ﾓ-ﾀ- ASSY (YB ｼﾞｸ)
ASSY, MOTOR
1
26 EZ1-846-587-21
ｴﾝｺ-ﾀﾞ-ｹ-ﾌﾞﾙ (MR-J3ENCBL5M-A2)
CABLE,ENCODER (MR-J3ENCBL5M-
A2)
1
