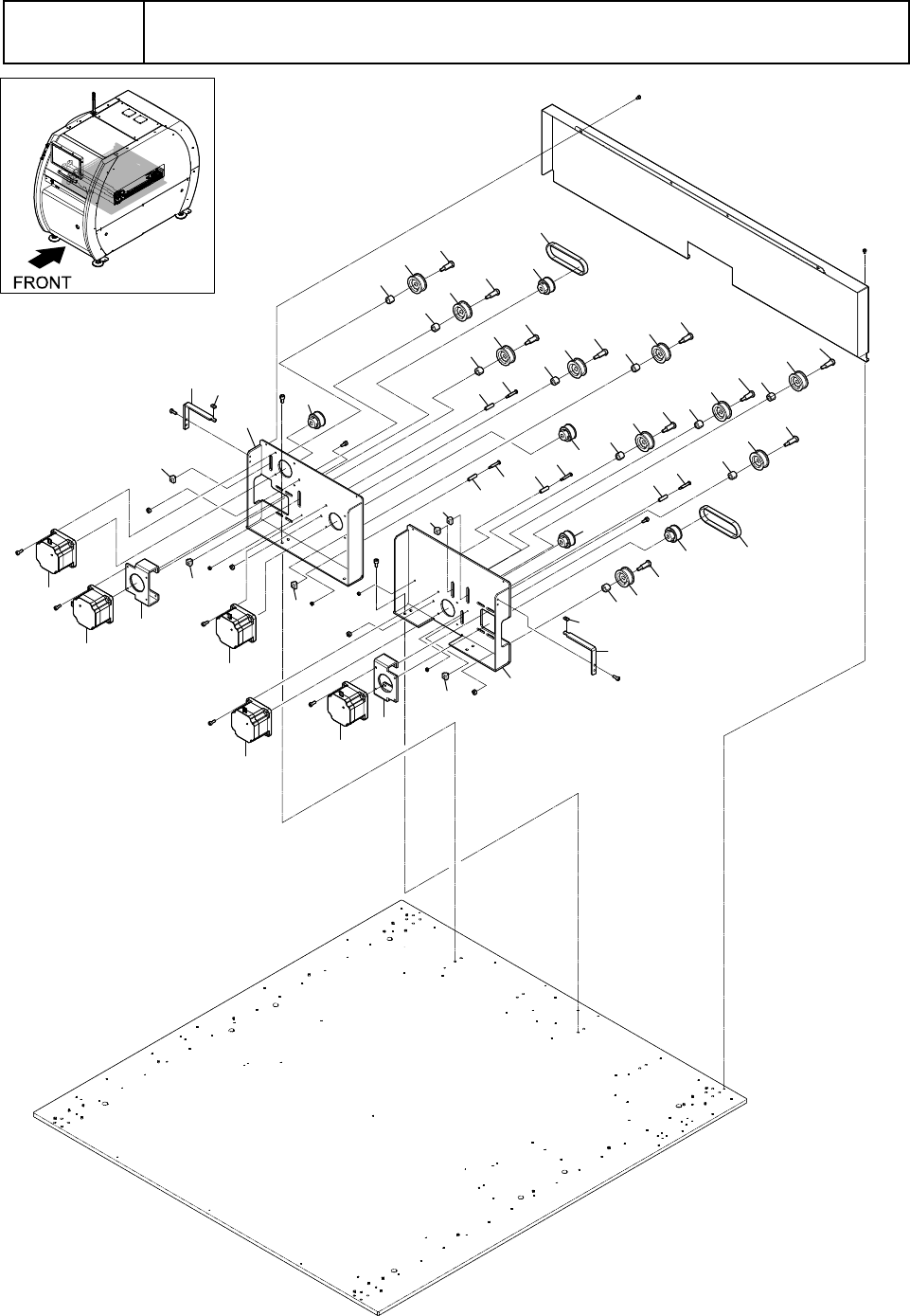

A8 コンベアユニット Conveyor unit 14 10 15 15 15 15 15 15 15 15 15 14 10 1 1 16 13 12 14 10 14 1 1 1 1 14 13 12 14 10 12 1 1 6 10 15 16 14 13 12 13 10 14 10 14 10 10 14 10 9 8 6 1 2 4 3 17 17 17 17 5 9 1 1 7 18 18 17 17 A- 32
A8
コンベアユニット
Conveyor unit
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
EZ4-462-904-03
ｶﾗ- ﾎﾙﾀﾞ
-
HOLDER, COLLAR
1
A-31
A8
コンベアユニット
Conveyor unit
ｲﾗｽﾄ番号
Ref.No.
部品コード
Parts Code
部品名
Parts Name
Serial
No.
個数
Q'ty
備考
Remarks
同期
Repl.
1 EZ1-492-193-13
ﾓ-ﾀ
-
ASSY (AD1)
ASSY, MOTOR
1
2 EZ1-492-193-23
ﾓ-ﾀ
-
ASSY (AD2)
ASSY, MOTOR
1
3 EZ1-492-193-33
ﾓ-ﾀ
-
ASSY (AD3)
ASSY, MOTOR
1
4 EZ1-492-193-43
ﾓ-ﾀ
-
ASSY (CM1)
ASSY, MOTOR
1
5 EZ1-492-193-53
ﾓ-ﾀ
-
ASSY (CM2)
ASSY, MOTOR
1
6 EZ4-452-336-01
ﾓ-ﾀ ﾌﾞﾗｹﾂﾄ
(2)
BRACKET (2), MOTOR
2
7 EZ4-452-337-02
ﾓ-ﾀ ﾌﾞﾗｹﾂﾄ
C
BRACKET (C), MOTOR
1
8 EZ4-452-338-02
ﾓ-ﾀ ﾌﾞﾗｹﾂﾄ
D
BRACKET (D), MOTOR
1
9 EZ4-452-389-01
ｲﾁｷﾞﾒ ﾏ-ｸ ﾌﾞﾗｹﾂﾄ
BRACKET, POSITIONING MARK
2
10 EZ4-455-781-01
ﾌﾗﾝｼﾞ ﾂｷ ﾌﾟ-ﾘ ｱｲﾄﾞﾗ
(FIP1130)
IDLER, FLANGE PULLEY (FIP1130)
10
11 EZ4-455-794-02
ﾌﾟ-ﾘ
(A)
PULLEY (A)
5
12 EZ4-455-795-01
ﾋﾝｼﾞ
ﾋﾟﾝ
(CLBK4-20.1)
PIN (CLBK4-20.1), HINGE
4
13 EZ4-455-796-01
ｼﾞﾕｼ ｶﾗ
-
(CLJJ4-6-20.0)
COLLAR (CLJJ4-6-20.0), RESIN
4
14 EZ4-463-071-01
ﾍﾞｱﾘﾝｸﾞﾖｳｽﾍﾟ-ｻ
(CLBUB8-11-10.3)
BEARING SPACE (CLBUB8-11-10.3)
10
15 EZ4-463-070-01
ﾈｼﾞ
(FCBDBR8-15-A12-E4-F10)
SCREW (FCBDBR8-15-A12-E4-F10)
10
16 EZ4-455-787-01
ﾀｲﾐﾝｸﾞ
ﾍﾞﾙﾄ
(240-3GT-9)
BELT (240-3GT-9), TIMING
2
17 EZ4-455-797-01
T
ﾐｿﾞ
ﾅﾂﾄ
(NTS5)
NUT (NTS5), T-SLIT
6
18 EZ4-452-390-01
ｲﾁｷﾞﾒ ﾏ-ｸ
MARK, POSITIONING
2
EZ4-722-178-01
ﾛﾂｶｸ
ｱﾅﾂｷ
ﾄﾒﾈｼﾞ
(SBCP3-5)
SET-SCREW, HEAD (SBCP3-5)
10
EZ7-683-420-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X10
BOLT,HEXAGON SOCKET 4X10
6
EZ7-683-421-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
4X12
BOLT,HEXAGON SOCKET 4X12
20
EZ4-455-805-01
ｻﾞｶﾞﾈﾂｷ
ﾛﾂｶｸ
ｱﾅ
ﾎﾞﾙﾄ
(CBST4-10)
BOLT (CBST4-10), HEXAGON HOLE
8
EZ7-683-435-04
6
ｶｸｱﾅﾂｷﾎﾞﾙﾄ
5X10
BOLT,HEXAGON SOCKET 5X10
8
EZ7-684-025-04
N 5, TYPE 2
N 5, TYPE 2
4
A-33
