SMT Softw are Engineering Group IM Operations Y AMAHA MOTOR CO., L T D. Retry method selection Select a retry method for insertion pa rts with short insertion error . (See Fig. 4.2.3.2.1) Fig. 4.2.3.2.1 Retry Method Sele…
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
Operation at insertion error
Operation when insertion error occurs
1. Parts itself has not reached the board face, or only 1/5 of [N:Insert Length (mm)] is
inserted. (in this case, “Ea2969: Parts insertion Errors” appears.)
Press the [ERROR CLEAR] button, and XY-axis of FID camera moves. At this time,
vacuum of the error head is still ON.
Check the pick up conditions of all heads, make sure that picked parts and FID camera
are not interefere with each other, then change the height of FID camera.
- Case : Parts and Multi-MACS are not interfering with FID camera.
When the parts are picked, FID camera moves down to surface of the board.
When the parts are not picked, FID camera moves down above the parts.
- Case : Multi-MACS and parts are interfering with FID camera.
FID camera doesn’ move down.
Retry method selection screen appears.
2. More than 1/5 of [N:Insert Length (mm)] is inserted, but the inserted height is
over [O:Insert short distance (mm)]. (in this case, “Ea2974: Parts insertion
Errors” appers.)
Press the [ERROR CLEAR] button, XY-axis of FID camera moves. At this time,
vacuum of the error head is turned OFF.
Check the pick up conditions of all heads, make sure that picked parts and FID
camera are not interefering with each other, then change the height of FID camera.
- Case : Parts and Multi-MACS are not interfering with FID camera.
When the parts are picked, FID camera moves down to surface of the board.
When the parts are not picked, FID camera moves down above the parts.
- Case : Multi-MACS and parts are interfering with FID camera.
FID camera doesn’ move down.
Retry method selection screen appears.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
Retry method selection
Select a retry method for insertion parts with short insertion error.
(See Fig. 4.2.3.2.1)

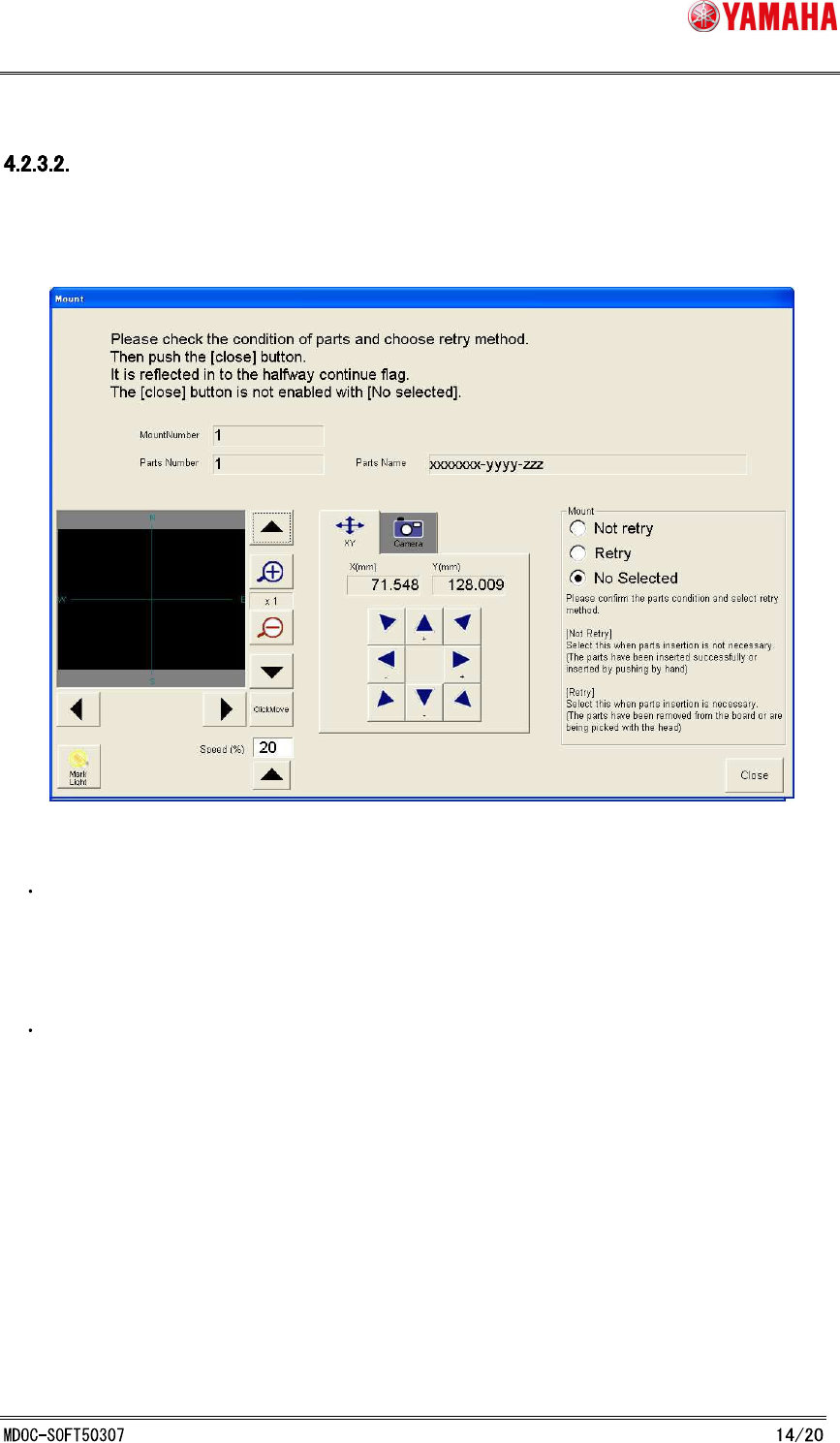

Fig. 4.2.3.2.1 Retry Method Selection
Select “Not retry” or “Retry”, then press the [Close] button.
If the [Close] button is pressed with “No Selected” is checked, "Ea2975 Insert parts : Retry
method selection" appears. In that case, press the [OK] button to go back to the retry
method selection screen.
When “Retry” is selected, mounting operation is performed again.
Retry timing depends on the setting of [Board] - [Board] - [Retry Sequence].
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
Error Message
The below is error messages concerned to this function.
Error Message
Error
No.
Title Causes and solutions
2969 Parts insertion Errors < Causes >
Insertion operation, it did not reach the target height.
There is a possibility that parts are not inserted properly.
Make sure safety, please remove the target parts on the
head or on the board.
Press the [ERROR CLEAR] button, then confirm the parts
condition and select retry or not on the next window.
Head x
Parts xxxx
Parts Name xxxxxxxxxxxxxxxxxxxxx
Mount No xxxx
Current Pos xxx.xx
< Solutions >
- Confirm insert position
- Confirm parts height
- Confirm set force value
* "Ea2969 Parts insertion Errors" is output to the error log.
2974 Parts insertion Errors < Causes >
Insertion operation, it did not reach the target height.
There is a possibility that parts are not inserted properly.
Make sure safety, please remove the target parts on the
head or on the board.
Press the [ERROR CLEAR] button, then confirm the parts
condition and select retry or not on the next window.
