65. FIXING BANK COMPONENTS FOR ETF(1) ........ ......................... .............. ......................... .............. .... ....... .............. .. 129 ＥＴＦ 用固定バンク関係（１） 66. FIXING BANK COMPONENTS FOR ETF(2) ..…
42. CVS COMPONENTS .......................................................................................................................................................83
ＣＶＳ 関係
43. CONNECTOR BRACKET COMPONENTS .....................................................................................................................85
コネクタブラケット関係
44. LIFTER UNIT COMPONENTS (1) ...................................................................................................................................87
リフターユニット関係（１）
45. LIFTER UNIT COMPONENTS (2) ...................................................................................................................................89
リフターユニット関係（２）
46. FLOOR TROLLEY UNIT COMPONENTS(1) ...................................................................................................................91
フロアートロリーユニット関係（１）
47. FLOOR TROLLEY UNIT COMPONENTS(2) ...................................................................................................................93
フロアートロリーユニット関係（２）
48. NOZZLE ASSEMBLY COMPONENTS ............................................................................................................................95
ノズルアッセンブリ関係
49. HOD & REAR MONITOR COMPONENTS ......................................................................................................................97
ＨＯＤ・背面モニタ関係
50. MINI PAT COMPONENTS...............................................................................................................................................99
ミニパト関係
51. SOT CHECK TABLE COMPONENTS ...........................................................................................................................101
ＳＯＴ 検査台関係
52. CONVEYOR EXTENTION COMPONENTS ..................................................................................................................103
コンベア延長関係
53. MAIN LINE FILTER COMPONENTS .............................................................................................................................105
メインラインフィルタ関係
54. FCS COMPONENTS .....................................................................................................................................................107
ＦＣＳ 関係
55. SCS COMPONENTS ..................................................................................................................................................... 109
ＳＣＳ 関係
56. RFID COMPONENTS (MPC)......................................................................................................................................... 111
ＲＦＩＤ 関係（ＭＰＣ）
57. RFID COMPONENTS (REPLACING OVERALL CHANGER TRUCK) .......................................................................... 113
ＲＦＩＤ 関係（一括交換台車）
58. CONVEYOR BARCODE READER COMPONENTS .....................................................................................................115
搬送バーコードリーダ関係
59. REPLACING OVERALL CHANGER TRUCK COMPONENTS FOR ETF (1) ................................................................ 117
ＥＴＦ 用一括交換台車関係（１）
60. REPLACING OVERALL CHANGER TRUCK COMPONENTS FOR ETF (2) ................................................................ 119
ＥＴＦ 用一括交換台車関係（２）
61. LIFTER UNIT COMPONENTS FOR ETF (1) ................................................................................................................. 121
ＥＴＦ 用リフターユニット関係（１）
62. LIFTER UNIT COMPONENTS FOR ETF (2) ................................................................................................................. 123
ＥＴＦ 用リフターユニット関係（２）
63. TAPE CUTTER UNIT COMPONENTS FOR ETF(1) .....................................................................................................125
ＥＴＦ 用テープカッターユニット関係（１）
64. TAPE CUTTER UNIT COMPONENTS FOR ETF(2) .....................................................................................................127
ＥＴＦ 用テープカッターユニット関係（２）
65. FIXING BANK COMPONENTS FOR ETF(1) ................................................................................................................. 129
ＥＴＦ 用固定バンク関係（１）
66. FIXING BANK COMPONENTS FOR ETF(2) ................................................................................................................. 131
ＥＴＦ 用固定バンク関係（２）
67. FIXING BANK COMPONENTS FOR ETF(3) ................................................................................................................. 133
ＥＴＦ 用固定バンク関係（３）
68. FIXING BANK COMPONENTS FOR ETF(4) ................................................................................................................. 135
ＥＴＦ 用固定バンク関係（４）
69. SYSTEM DIAGRAM (POWER UNIT) ............................................................................................................................ 137
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＰＯＷＥＲ ＵＮＩＴ）
70. SYSTEM DIAGRAM (SERVO MOTOR) ........................................................................................................................139
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＳＥＲＶＯ ＭＯＴＯＲ）
71. SYSTEM DIAGRAM (XY-RELAY)..................................................................................................................................141
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＸＹ − ＲＥＬＡＹ）
72. SYSTEM DIAGRAM (Z-THETA POWER)...................................................................................................................... 143
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（Ｚθ ＰＯＷＥＲ）
73. SYSTEM DIAGRAM (Z-THETA MOTOR)......................................................................................................................145
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（Ｚθ ＭＯＴＯＲ）
74. SYSTEM DIAGRAM (HEAD LF/LR)...............................................................................................................................147
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＨＥＡＤ ＬＦ ／ ＬＲ）
75. SYSTEM DIAGRAM (HEAD RF/RR) .............................................................................................................................149
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＨＥＡＤ ＲＦ ／ ＲＲ）
76. SYSTEM DIAGRAM (BASE-CARRY) ............................................................................................................................151
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＢＡＳＥ − ＣＡＲＲＹ）
77. SYSTEM DIAGRAM (OPERATION/CPU/MONITOR)....................................................................................................153
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＯＰＥＲＡＴＩＯＮ ／ ＣＰＵ ／ ＭＯＮＩＴＯＲ）
78. SYSTEM DIAGRAM (FRAME FAN)...............................................................................................................................155
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＦＲＡＭＥ ＦＡＮ）
79. SYSTEM DIAGRAM (FEEDER STATION) ....................................................................................................................157
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＦＥＥＤＥＲ ＳＴＡＴＩＯＮ）
80. SYSTEM DIAGRAM (MECH TOROLY I/F) ....................................................................................................................159
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＭＥＣＨ ＴＯＲＯＬＹ Ｉ ／ Ｆ）
81. SYSTEM DIAGRAM (CVS/RFID/TRACEABILITY) ........................................................................................................161
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＣＶＳ ／ ＲＦＩＤ ／ ＴＲＡＣＥＡＢＩＬＩＴＹ）
82. SYSTEM DIAGRAM (ELEC TOROLY I/F) ..................................................................................................................... 163
ＳＹＳＴＥＭ ＤＩＡＧＲＡＭ（ＥＬＥＣ ＴＯＲＯＬＹ Ｉ ／ Ｆ）
- 1 -
MAIN UNIT
本体

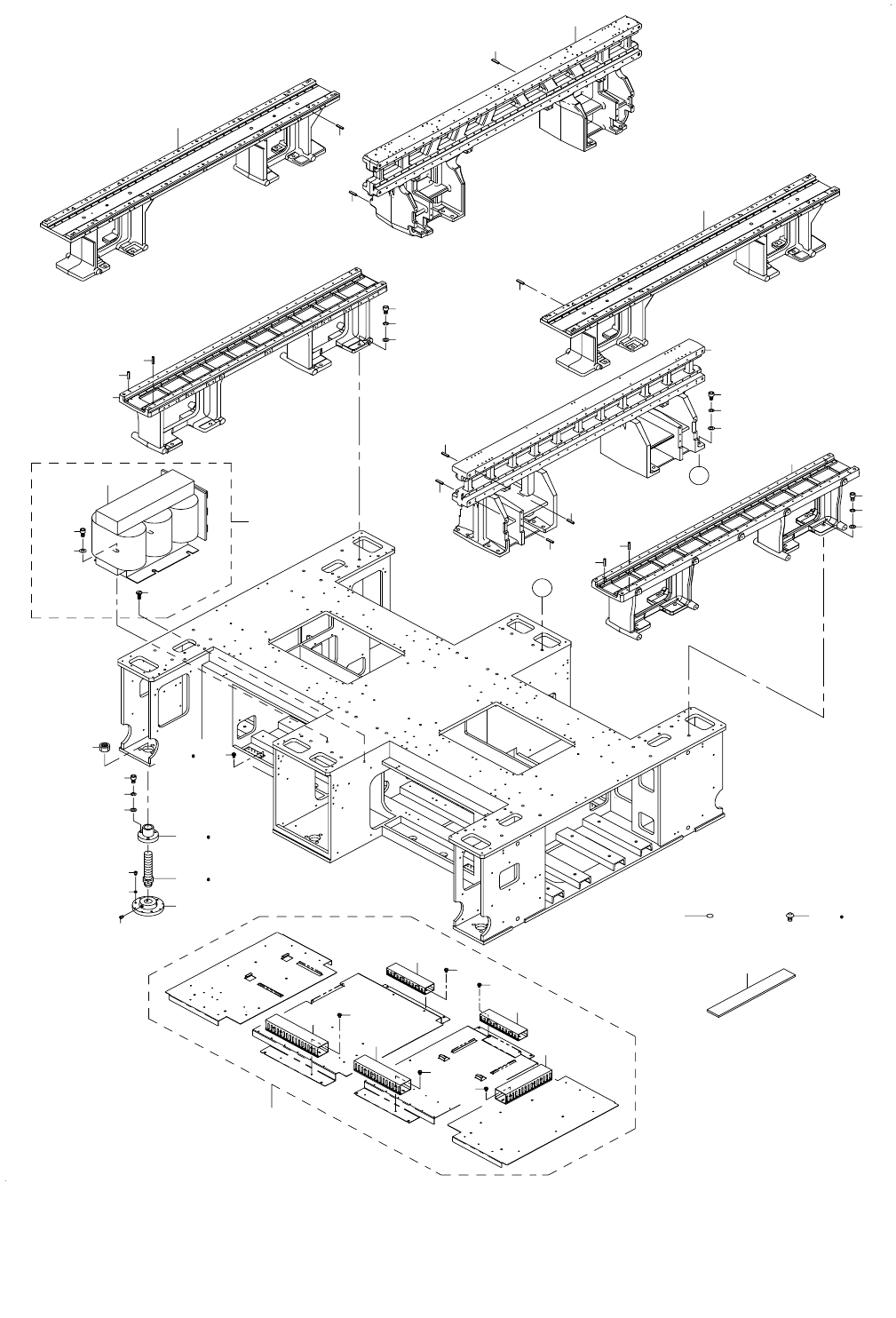

1. BASE FRAME COMPONENTS
ベースフレーム関係
5
4
3
9
8
10
6
6
6
17
18
12
13
15
14
16
20
22
21
19
21
34
32
33
35
25
7
8
10
9
23
39
11
11
11
11
24
36
40
7
A
A
6
2
37
37
37
37
31
30
29
29
27
27
28
28
28
28
28
26
38
38
1
