Maintenance Manual WPC4, WPC5 and WPC6 4-Monthly Maintenance Greasing the Linear Guide of the Non-Stop Module 12 Maintenance Manual SIPLACE WPC4, WPC5 and WPC6 Greasing t he Linear Guide of the Non- Stop Module 2.3.2 Gre…
Maintenance Manual WPC4, WPC5 and WPC6
Greasing the Linear Guide of the Feed Axis 4-Monthly Maintenance
Maintenance Manual SIPLACE WPC4, WPC5 and WPC6 11
4-Monthly Maintenance
2.3 4-Monthly Maintenance
Greasing the Linear Guide of the Feed Axis
2.3.1 Greasing the Linear Guide of the Feed Axis
► Perform a reference run of the WPC.
► Move the WPC into the transport position.
► Switch the WPC off at the main switch.

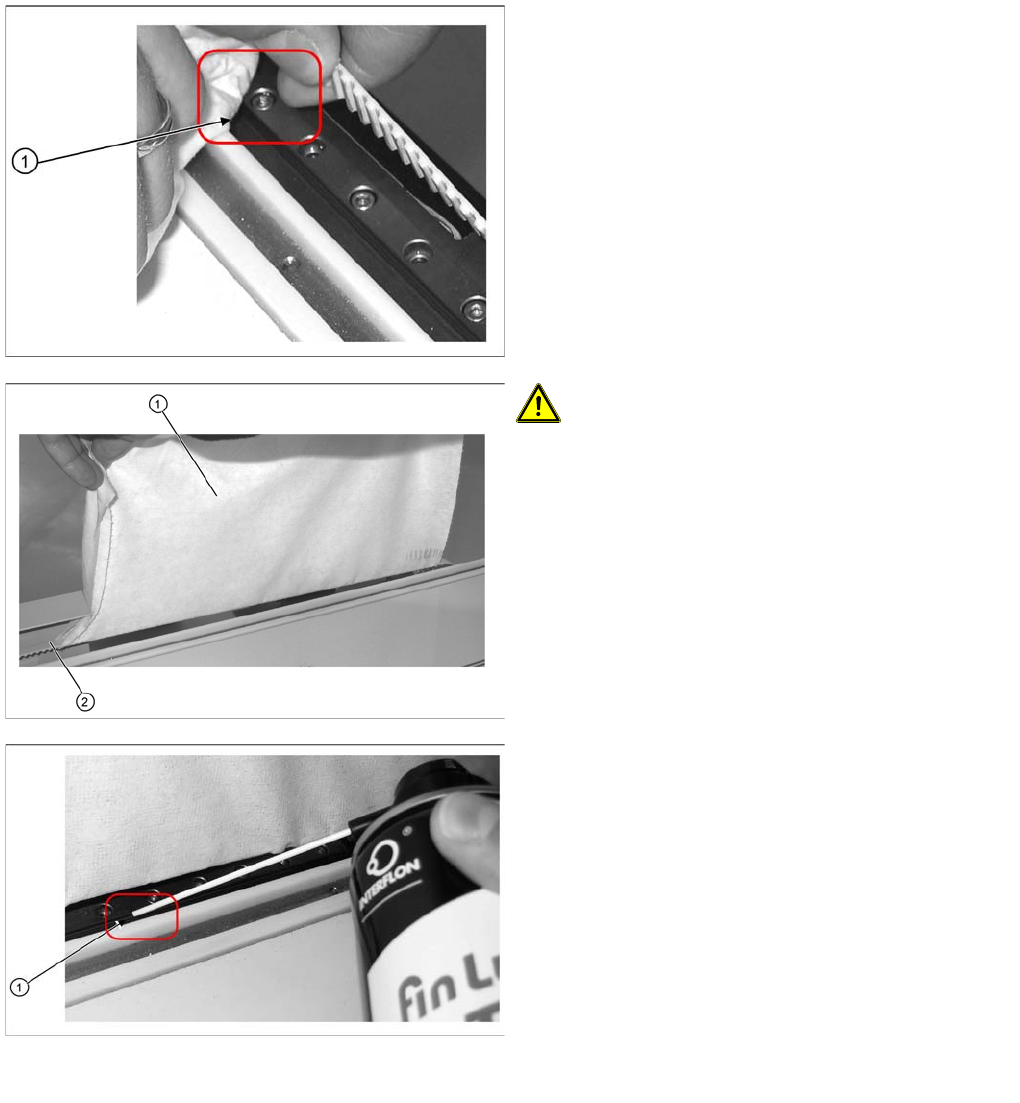

► (1) Clean the linear guide of the feed axis by means
of a lint-free cloth an ethyl alcohol.
CAUTION! No oil onto the toothed belt
When applying oil to the linear guide make sure that no
oil gets on the toothed belt.
Cover the toothed belt (2) of the feed axis with a lint-free
cloth (1).
► Spray "INTERFLON Fin Lube TF" thinly on the
accessible area of the feed axis (1).
► In order to get a better access for cleaning or
greasing the linear guide you can move the driver by
hand.
► Wipe any residual oil away with a lint-free cloth.
► Switch the WPC on at the main switch and perform a
reference run.
► Start a short continuous run of the feed axis to
distribute the oil evenly.
► If necessary, use a lint-free cloth to remove any
residual oil that has dropped down from the feed axis.
Maintenance Manual WPC4, WPC5 and WPC6
4-Monthly Maintenance Greasing the Linear Guide of the Non-Stop Module
12 Maintenance Manual SIPLACE WPC4, WPC5 and WPC6
Greasing the Linear Guide of the Non-Stop Module
2.3.2 Greasing the Linear Guide of the Non-Stop Module
WPC6 only
► Perform a reference run of the WPC.
► Move the WPC into the transport position.
► Switch the WPC off at the main switch.

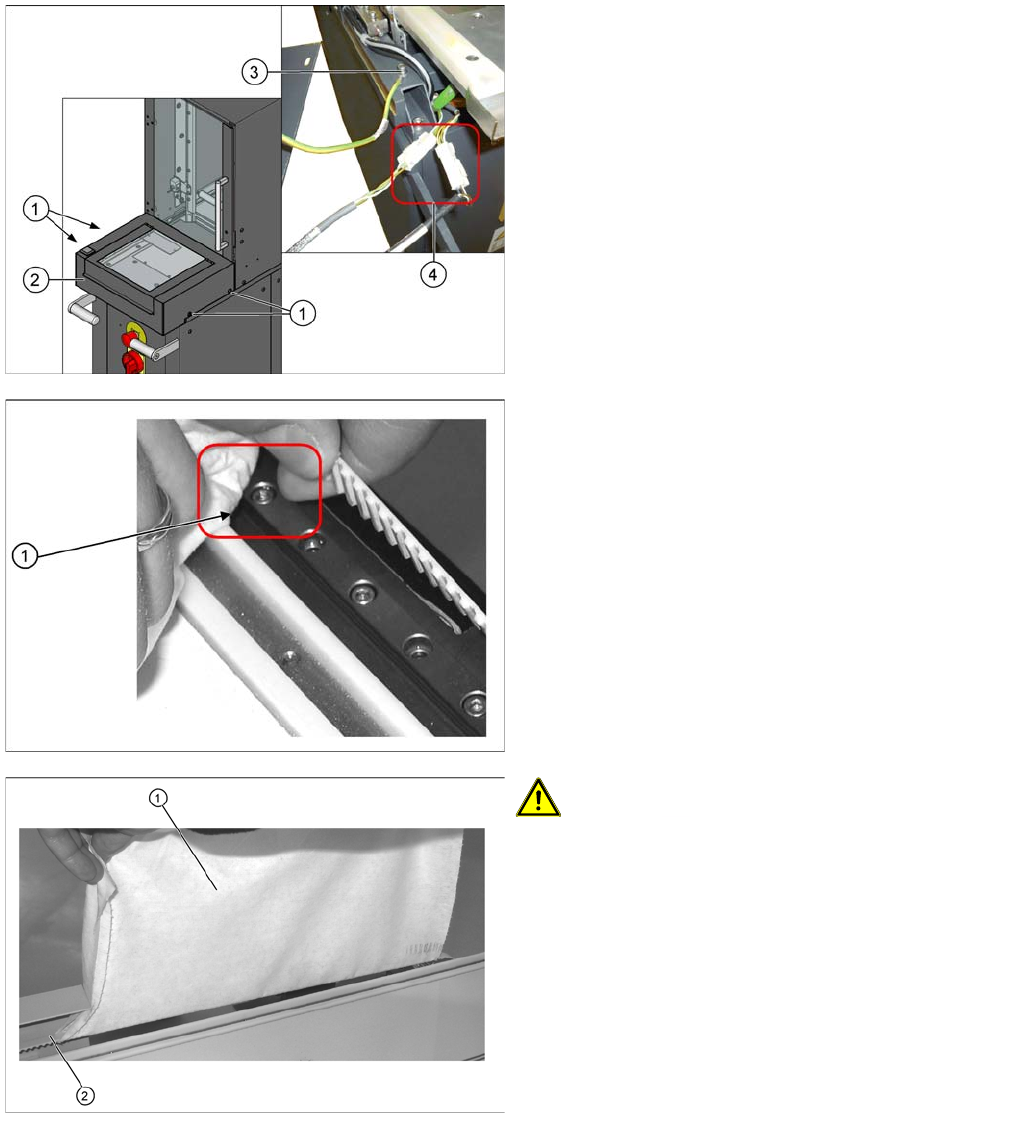

► Loosen the 4 fixing screws (1) fastening the cover of
the Non-Stop Module (2).
► Loosen the fixing screw (3) of the grounding and the
electric connections (4) and remove the cover.
► (1) Clean the linear guide of the Non-Stop Module by
means of a lint-free cloth an ethyl alcohol.
CAUTION! No oil onto the toothed belt
When applying oil to the linear guide make sure that no
oil gets on the toothed belt.
Cover the toothed belt (2) of the feed axis with a lint-free
cloth (1).
Maintenance Manual WPC4, WPC5 and WPC6
Preparing the Grease Gun Annual Maintenance
Maintenance Manual SIPLACE WPC4, WPC5 and WPC6 13
Annual Maintenance
2.4 Annual Maintenance
Prepari ng the G rease Gu n
2.4.1 Preparing the Grease Gun
Grease Gun
2.4.1.1 Grease Gun
► Spray "INTERFLON Fin Lube TF" thinly on the
accessible area of the linear guide (1).
► In order to get a better access for cleaning or
greasing the linear guide you can move the driver by
hand.
► Wipe any residual oil away with a lint-free cloth.
► Switch the WPC on at the main switch and perform a
reference run.
► Start a short continuous run of the feed axis to
distribute the oil evenly.
► If necessary, use a lint-free cloth to remove any
residual oil that has dropped down from the feed axis.
Order number: 00384212-xx
The grease guns can be used with 400g cartridges or
with 500g loose grease. They have stepless piston
fixation. Permanent spring-loading applies pressure to
the grease cartridge, so that a continuous supply of
grease is guaranteed to the gun head.

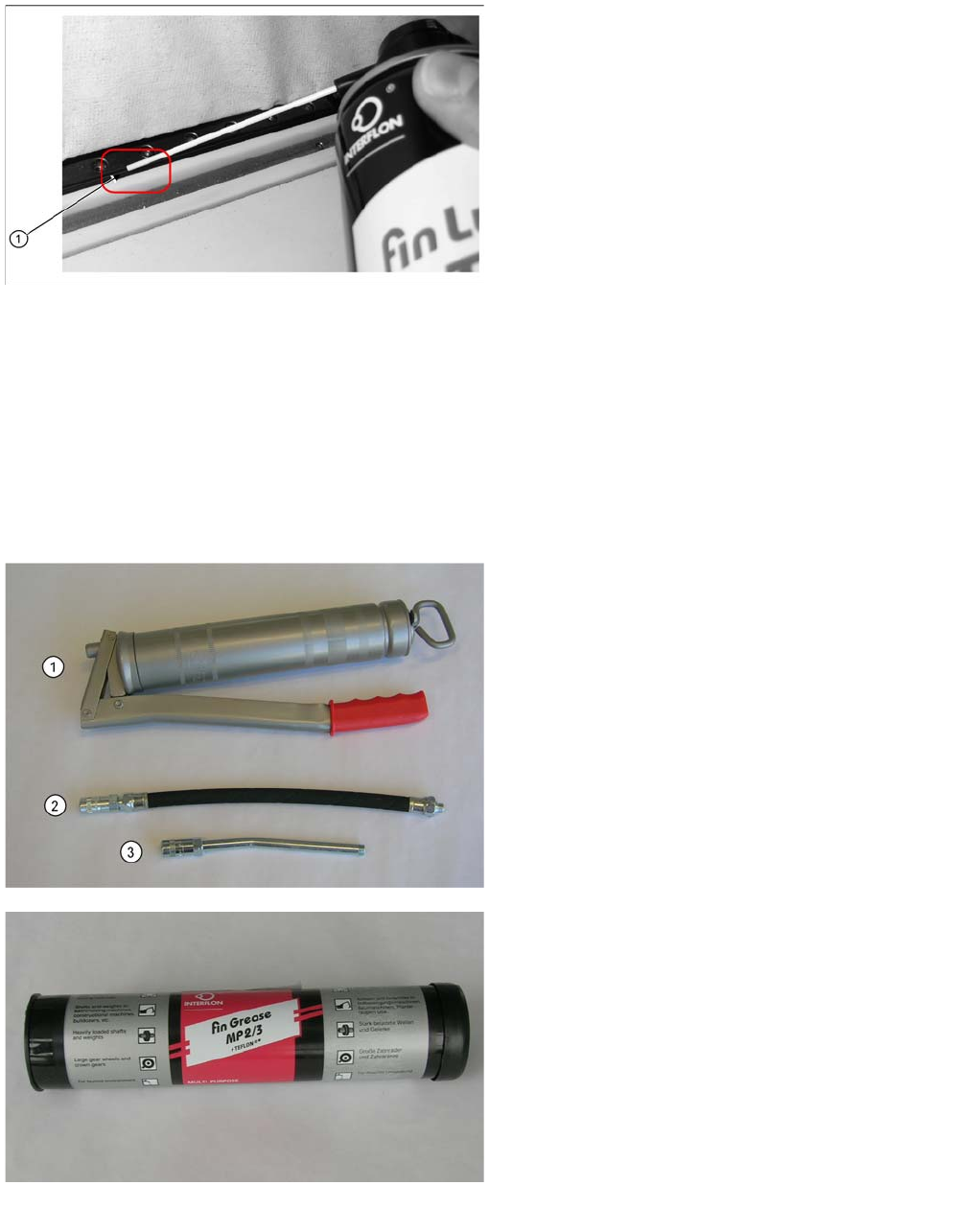

The grease gun (1) is supplied with a rubber tank hose (2)
and a nozzle tube (3), each with a R1/8" connection
thread. The nozzle tube (3) is not required for WPC
maintenance.
Order number: 03038300-xx
Grease INTERFLON FIN GREASE MP 2/3
High-strength Teflon grease with good lubricity and
stability, specially designed for permanent lubrication of
heavy duty parts
▪ Resistant to water, dust and contaminants
▪ Excellent film strength on metal
▪ Very good temperature resistance
▪ Very good water resistance
▪ Ideal for heavy duty and high vibration environments
▪ Teflon extends lubricity lifetime significantly
