Maintenance Manual WPC4, WPC5 and WPC6 Annual Maintenance Preparing the Grease Gun 14 Maintenance Manual SIPLACE WPC4, WPC5 and WPC6 Procedur e 2.4.1.2 Procedure ► Screw the rubber tank h ose provided onto the threaded c…
Maintenance Manual WPC4, WPC5 and WPC6
Preparing the Grease Gun Annual Maintenance
Maintenance Manual SIPLACE WPC4, WPC5 and WPC6 13
Annual Maintenance
2.4 Annual Maintenance
Prepari ng the G rease Gu n
2.4.1 Preparing the Grease Gun
Grease Gun
2.4.1.1 Grease Gun
► Spray "INTERFLON Fin Lube TF" thinly on the
accessible area of the linear guide (1).
► In order to get a better access for cleaning or
greasing the linear guide you can move the driver by
hand.
► Wipe any residual oil away with a lint-free cloth.
► Switch the WPC on at the main switch and perform a
reference run.
► Start a short continuous run of the feed axis to
distribute the oil evenly.
► If necessary, use a lint-free cloth to remove any
residual oil that has dropped down from the feed axis.
Order number: 00384212-xx
The grease guns can be used with 400g cartridges or
with 500g loose grease. They have stepless piston
fixation. Permanent spring-loading applies pressure to
the grease cartridge, so that a continuous supply of
grease is guaranteed to the gun head.
The grease gun (1) is supplied with a rubber tank hose (2)
and a nozzle tube (3), each with a R1/8" connection
thread. The nozzle tube (3) is not required for WPC
maintenance.
Order number: 03038300-xx
Grease INTERFLON FIN GREASE MP 2/3
High-strength Teflon grease with good lubricity and
stability, specially designed for permanent lubrication of
heavy duty parts
▪ Resistant to water, dust and contaminants
▪ Excellent film strength on metal
▪ Very good temperature resistance
▪ Very good water resistance
▪ Ideal for heavy duty and high vibration environments
▪ Teflon extends lubricity lifetime significantly
Maintenance Manual WPC4, WPC5 and WPC6
Annual Maintenance Preparing the Grease Gun
14 Maintenance Manual SIPLACE WPC4, WPC5 and WPC6
Procedur e
2.4.1.2 Procedure
► Screw the rubber tank hose provided onto the
threaded connector at the head of the grease gun.
► Tighten the nut on the rubber tank hose with a 17 mm
open-ended wrench.
► Turn the filling tube anticlockwise to unscrew it from
the gun head.
► Pull the piston as far as possible (end stop) out of the
filling tube.
Maintenance Manual WPC4, WPC5 and WPC6
Preparing the Grease Gun Annual Maintenance
Maintenance Manual SIPLACE WPC4, WPC5 and WPC6 15

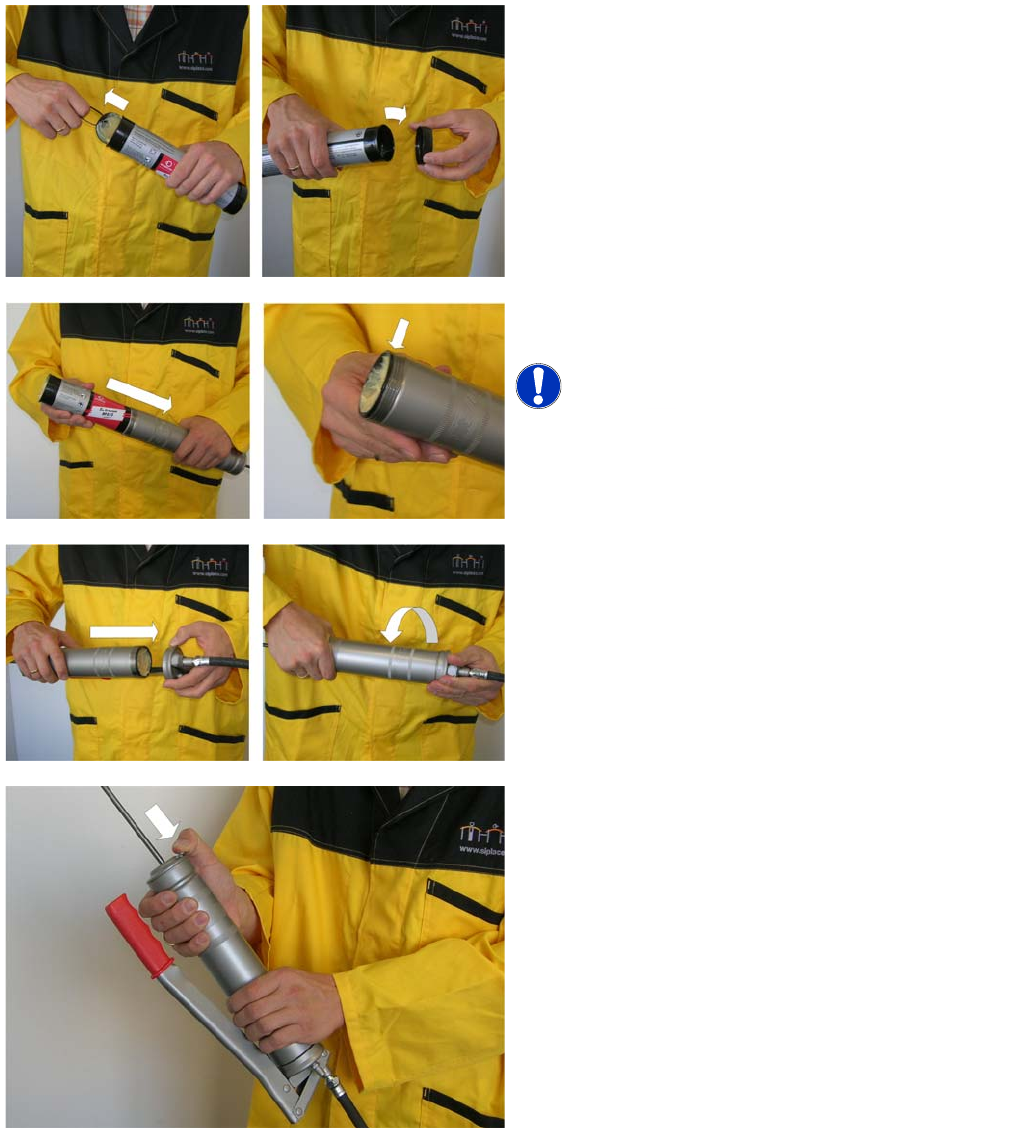

► Open one end of the cartridge, by pulling on the
plastic ring to remove the base.
► Open the other end of the cartridge, by pulling off the
lid.
► Push the open cartridge (open at both ends) as far as
possible into the filling tube.
NOTICE! The cartridge will only fit into the filling
tube if you insert the end with NO rim. This cartridge rim
must be aligned with the edge of the filling tube (see
arrow on right-hand diagram).
► Press the filling tube against the head of the grease
gun.
► Turn the filling tube clockwise to screw it into the gun
head, as far as the end stop.
► Press the locking lever to release the piston.
The piston will be automatically pressed against the
grease by the spring in the filling tube.
