Maintenance Manual WPC4, WPC5 and WPC6
Preparing the Grease Gun Annual Maintenance
Maintenance Manual SIPLACE WPC4, WPC5 and WPC6 15
► Open one end of the cartridge, by pulling on the
plastic ring to remove the base.
► Open the other end of the cartridge, by pulling off the
lid.
► Push the open cartridge (open at both ends) as far as
possible into the filling tube.
NOTICE! The cartridge will only fit into the filling
tube if you insert the end with NO rim. This cartridge rim
must be aligned with the edge of the filling tube (see
arrow on right-hand diagram).
► Press the filling tube against the head of the grease
gun.
► Turn the filling tube clockwise to screw it into the gun
head, as far as the end stop.
► Press the locking lever to release the piston.
The piston will be automatically pressed against the
grease by the spring in the filling tube.
Maintenance Manual WPC4, WPC5 and WPC6
Annual Maintenance Greasing the Lifting Axis Spindle and Guidance
16 Maintenance Manual SIPLACE WPC4, WPC5 and WPC6
Greasing the Lifting Axis Spindle a nd Guida nce
2.4.2 Greasing the Lifting Axis Spindle and Guidance
► Activate the placement machine and the WPC.
► Use the station software to move the magazine into the refill position.
The tower is then in the uppermost position.
► Remove all waffle pack trays from the tower.
► Switch the WPC off at the main switch and unplug the WPC from the power supply. This disconnects
the WPC reliably from the electricity.
► Disconnect the WPC data cable from the placement machine.
► Carefully remove the WPC from the placement machine.
► Prepare the grease gun (see Section "Preparing the Grease Gun").

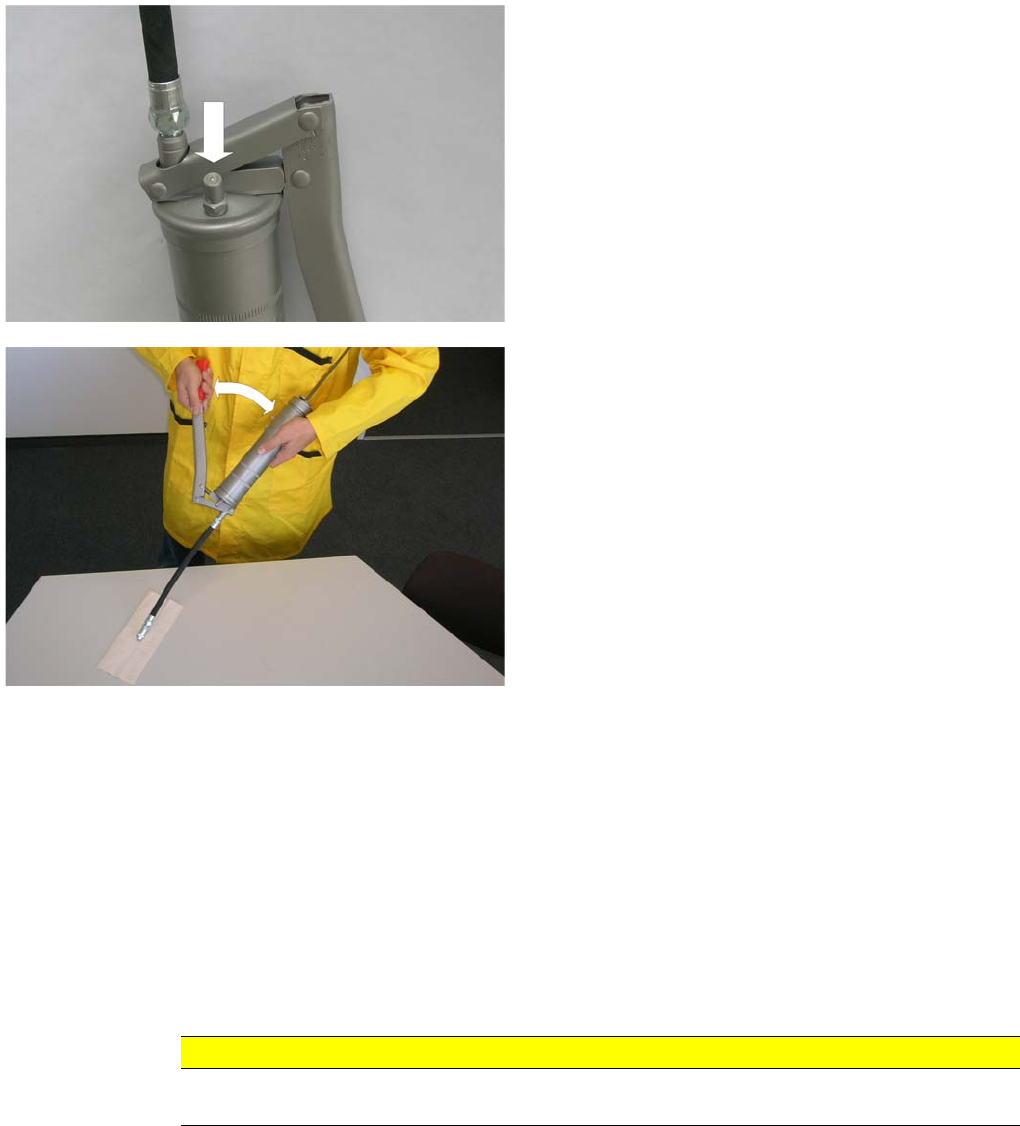

► Press your finger against the ball valve, to vent the
grease gun.
► To fill the rubber tank hose with grease, pump the
lever until grease appears at the end of the rubber
tank hose.
The grease gun is now ready for use.
CAUTION
Attention: the tower is in its refill position. The WPC center of gravity is higher up and there is
a greater risk of it tipping over.
Maintenance Manual WPC4, WPC5 and WPC6
Greasing the Lifting Axis Spindle and Guidance Annual Maintenance
Maintenance Manual SIPLACE WPC4, WPC5 and WPC6 17

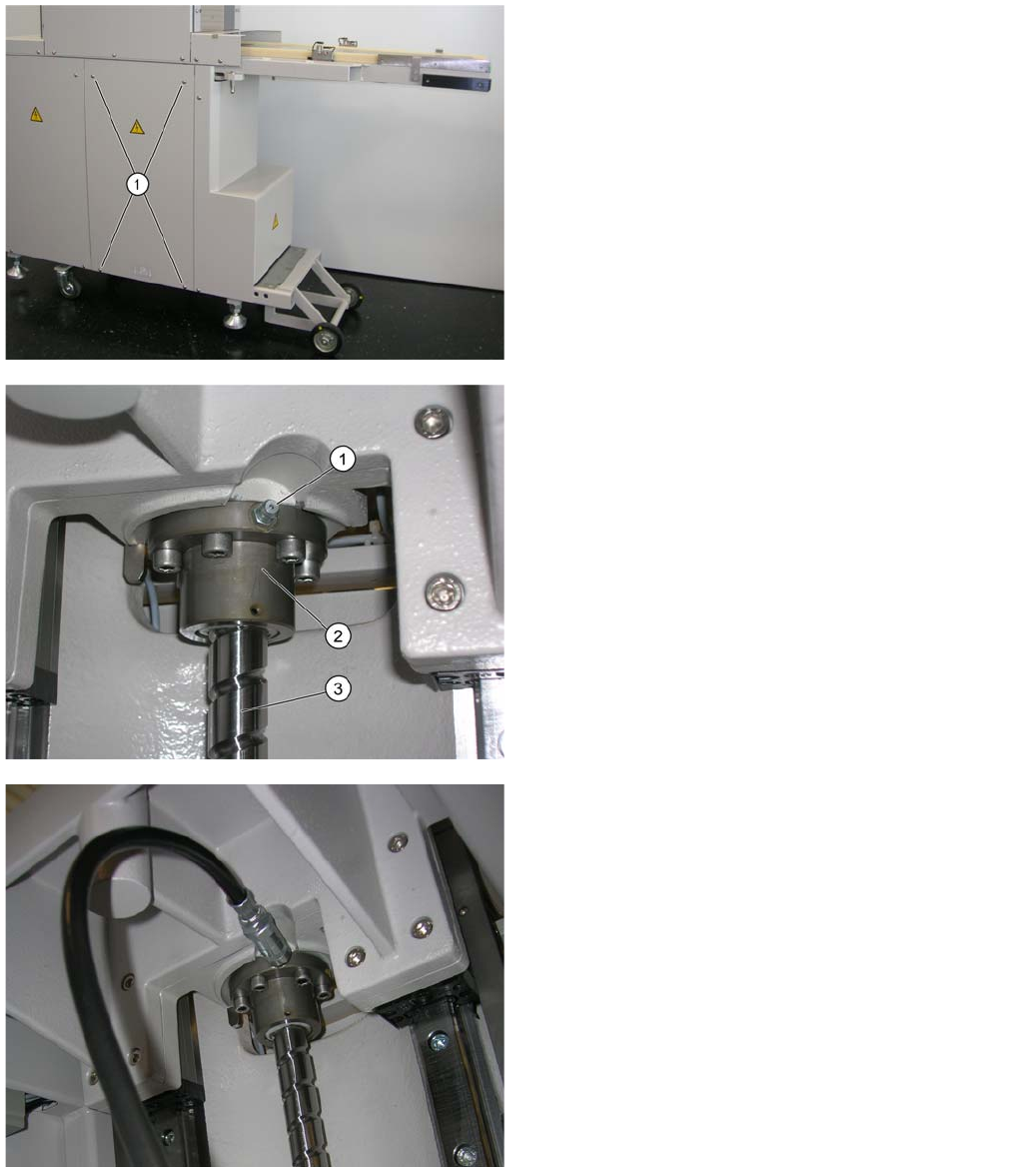

The tower has two linear guidances. Each of these has a lubrication nipple at the top (1). These
lubrication nipples can be reached via the open plexiglass door and the tower (refill position).
► Unscrew the 4 screws to remove the front, right-hand
side cover from the WPC.
You can now access the spindle nut.
1. Lubrication nipple
2. Spindle nut
3. Spindle
► Fit the universal grease gun mouthpiece onto the
lubrication nipple of the spindle nut.
► Pump the grease gun twice.
► Remove the grease gun.
► Use a dry cloth to remove any residual grease from
on and around the lubrication nipple.
