Air Ass' y NO. PART NO. PART NAME Q'TY TYPE REMARK 28 J6713016A AIR TUBE (POLYURETHANE) 9 U2-4-4*2.5 (BLACK) 29 J6713035A AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(BLUE)] 1 U2-4-4*2.5(BLUE) 30 J6713036A AIR TUBE(POLYYR…
Air Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J1300210 SPRING WASHER [M5] 4 M5
2
J1300438 SOCKET HEAD SCREW [M4*8] 8 M4*8
3
J1300446 SOCKET HEAD CAP SCREW [M8*10] 2 M8*10
4
J1300862 COUPLER (CORK) [CM24] 1 CM24
5
J7500010A COUPLER [J7500010A] 1 J7500010A
6
J6711059A STRAIGHT FITTING [KQ2H12-04] 1 KQ2H12-04
7 J6711170A
ELBOW FITTING [BTL12-04] 3 BTL12-04
8 J1301334
SOCKET HEAD SCREW [M5*35] 4 M5*35
9 J1301340
STRAIGHT FITTING [KQ2F04-02/PCF04-02] 1 KQ2F04-02/PCF04-02
10
J6711028A ELBOW FITTING [KQ2L04-01] 1 KQ2L04-01
11
J1301700 CHECK UNION [KCE04-00] 8 KCE04-00
12
J6711166A DOUBLE UNION [UWD06-04] 2 UWD06-04
13
J2101163 NIPPLE-QC [0131-611035] 1 0131-611035
14
J2101164 NIPPLE-QC NUT [0131-611036] 1 0131-611036
15
J6707003A VACUUM PUMP [X40F6-KN] 1 X40F6-KN
16
J6709012A REGULATOR [TAR4000-04] 1 TAR4000-04
17
J6711168A UNION Y FITTING [BUYD06-04] 1 BUYD06-04
18
J6711139A STRAIGHT FITTING [SS8-1/2] 1 SS8-1/2
19
J7058001B PUMP BRACKET [J7058001B] 1 J7058001B
20
J6711169A ELBOW FITTING [BTL08-01] 2 BTL08-01
21
J6712008A PLUG [PT 1/8] 3 PT 1/8
22
J9061898A AIR SOL POWER CABLE ASS'Y [J9061898A] 1 J9061898A
23
J1300620 SPEED CONTROLLER [AS2001F-04/SP100F-04] 1 AS2001F-04/SP100F-04
24
J9058029A AIR FILTER ASS'Y [J9058029A] 1 J9058029A
25
J1301175 AIR FILTER [AF4000-04BC] 1 AF4000-04BC
26
J6711059A STRAIGHT FITTING [KQ2H12-04] 1 KQ2H12-04
27
J1301187 ELBOW FITTING [KQ2L12/PL12-04] 1 KQ2L12/PL12-04
- 11 -
Air Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
28
J6713016A AIR TUBE (POLYURETHANE) 9 U2-4-4*2.5 (BLACK)
29
J6713035A AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(BLUE)] 1 U2-4-4*2.5(BLUE)
30
J6713036A AIR TUBE(POLYYRETHANE)[U2-4-4*2.5(YELLOW)] 1 U2-4-4*2.5(YELLOW)
31
J6713017A AIR TUBE (POLYURETHANE) 8 U2-4-6*4 (BLACK)
32
J6713034A AIR TUBE(POLYYRETHANE)[U2-4-6*4(YELLOW)] 2 U2-4-6*4(YELLOW)
33
J6713018A AIR TUBE (POLYURETHANE) 2 U2-4-8*5 (BLACK)
34
J6713033A AIR TUBE(POLYYRETHANE) [U2-4-8*5(WHITE)] 3 U2-4-8*5(WHITE)
35
J6711116A BULKHEAD UNION FITTING [KQ2E04-01S] 1 KQ2E04-01S
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50 SPEED CONTROLLER [AS2001F-04/SP100F-04]
51
52
53
54
- 12 -

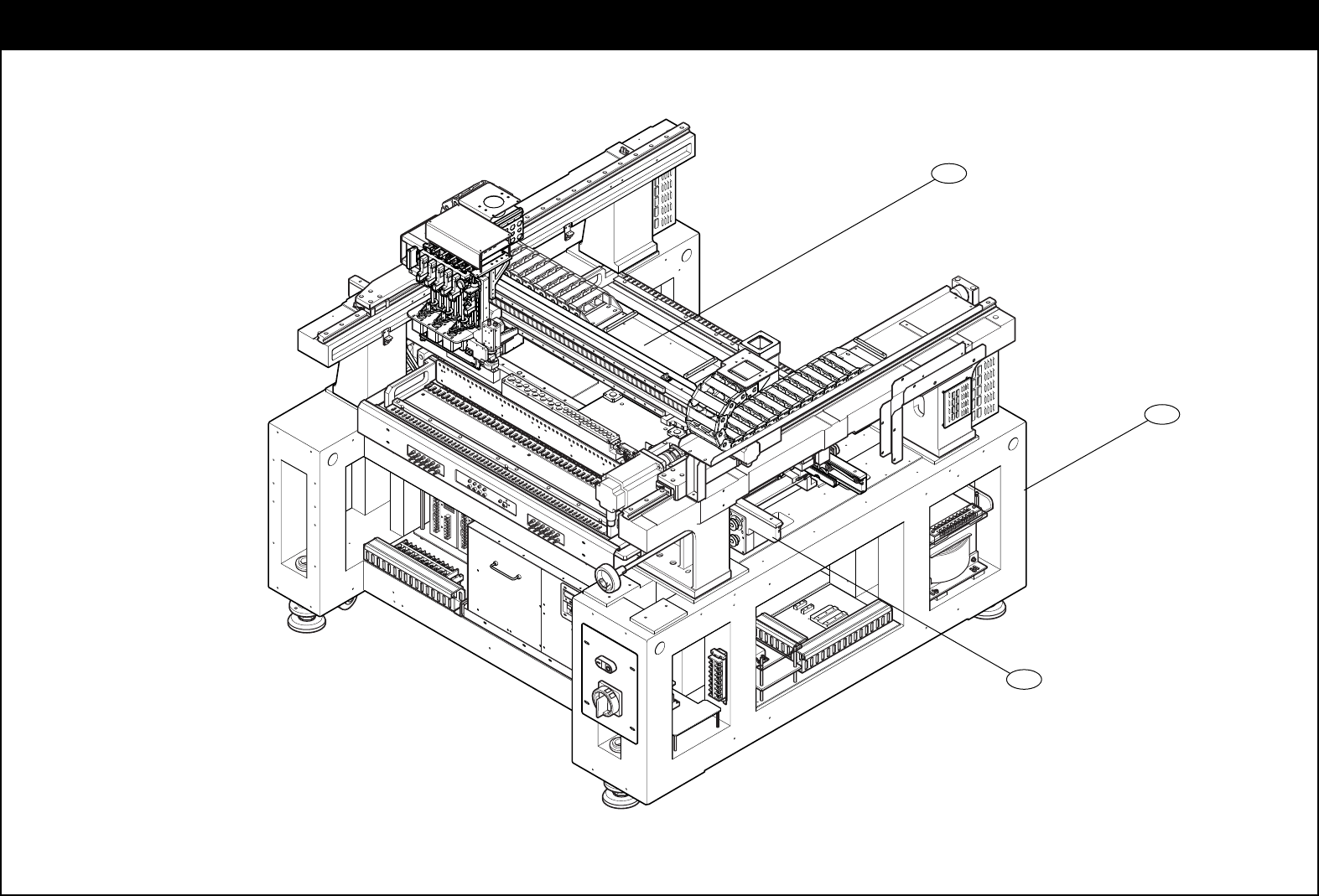

Mech. Ass'y
- 13 -
3
2
1
