Flying Vision Ass'y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J7159151A FRONT PANEL 1 A6063 2 J7159152A VSP_Panel Bottom 1 A6063 3 J7159153A VSP_Panel Up 1 A6063 4 J7159154A VSP_Panel Back 1 A6063 5 J7159155B I…
Flying Vision Ass'y
- 52 -
7
5
6
1
8
2
3
4
Flying Vision Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7159151A FRONT PANEL 1 A6063
2
J7159152A VSP_Panel Bottom 1 A6063
3
J7159153A VSP_Panel Up 1 A6063
4
J7159154A VSP_Panel Back 1 A6063
5
J7159155B IO PANEL(CP45FV60) 1 A6063
6
J7159156A BACK PANEL 1 A6063
7
J7159157A GUIDE 1 A6063
8
J7159158A CCD_Holder 1 A6063
9
10
11 J9059010B LENS ASS'Y [J9059010B] 6 J9059010B
J7159133A BARREL_1 1 J7159133A
J7159134A BARREL_2 1 J7159134A
J7159135A BARREL_3 1 J7159135A
J7159136A BARREL_4 1 J7159136A
J7159137A RETAINER_1 1 J7159137A
J7159138A RETAINER_2 1 J7159138A
J7159139A SPACER_1 1 J7159139A
J7159141A MOUNT 1 J7159141A
J7159142A STOP-RING 1 J7159142A
J7159143A GUIDE PIN 2 J7159143A
J7159145A COVER-1 1 J7159145A
J7159146A COVER-2 1 J7159146A
J6739015A F1 LENS 1 J6739015A
J6739016A F2 LENS 1 J6739016A
J6739017A F3 LENS 1 J6739017A
J6739018A F4 LENS 1 J6739018A
- 53 -

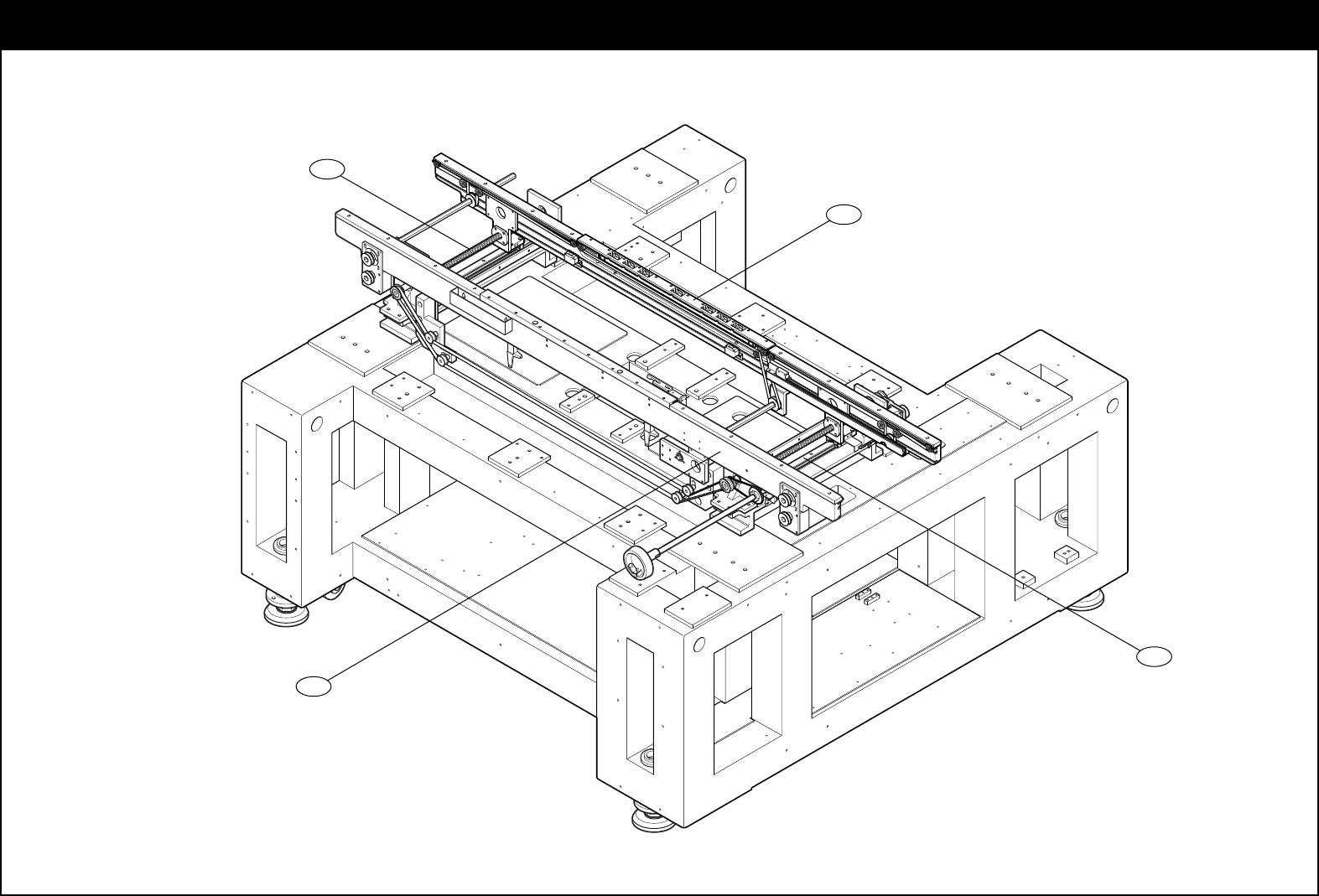

Conveyor Ass'y
