X-Frame Ass'y - 27 - 3 2 1 6 5 9 4 15 16 17 7 10 11 12 13 14 8

100%1 / 124
X-Y Frame Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J9054044A X-FRAME ASS`Y 1
2 J9054046A Y1-FRAME ASS`Y 1
3 J9054046A Y2-FRAME ASS`Y 1
4 CARRIER ASS`Y 1
5 CABLEVEYOR ASS`Y 1
6 HEAD & CARRIER ASS`Y 1
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
- 26 -

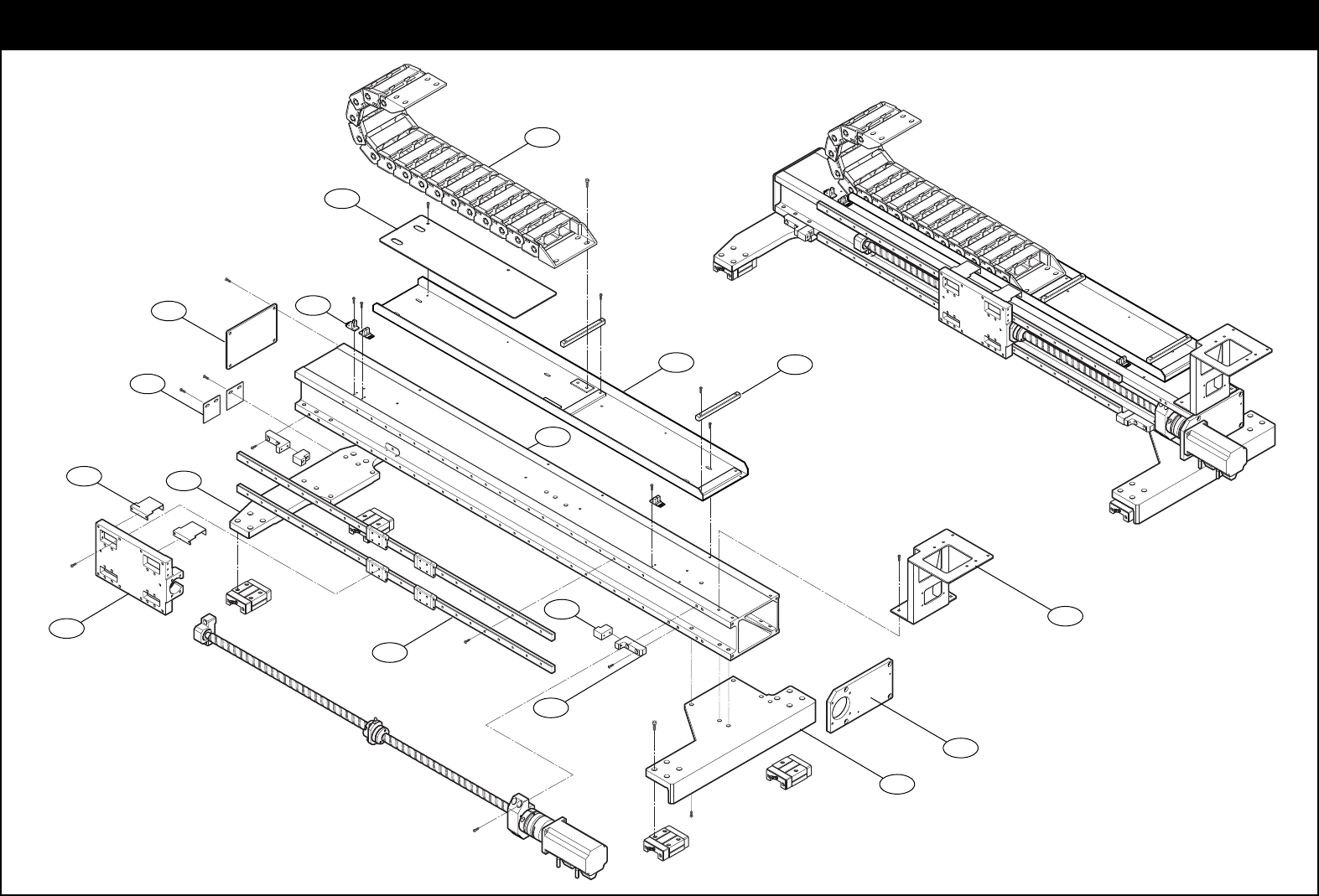

X-Frame Ass'y
- 27 -
3
2
1
6
5
9
4
15
16
17
7
10
11
12
13
14
8
X-Frame Ass'
y
NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK
1 J7154087B LM󰚟PLATE1
1
J7154087B
2 J7154094A END󰚟BRACKET-X
1
0133-631044-M3
3 J7054091B BRACKET󰚟CABLE󰚟CHAIN-Y
1
J7054091B
4 J7154109B CABLE󰚟TIE-DOWN
3
J7154109B
5 J7154091B GUIDE󰚟CABLE󰚟CHAIN-X
1
J7154091B
6 J6102004A CABLE󰚟CHAIN
1
MP3005-R70-15LINK+8SHELF
7 J7254009B CUSHION󰚟CABLE󰚟CHAIN-X
1
J7254009B
8 J3212022A LIMIT󰚟SENSOR
3
EE-SX674
9 J7154092C X󰚟FRAME
1
J7154092C
10 J7154095A END󰚟PLATE-X
1
0133-631044-1M3
11 J7054088B SENSOR󰚟DOG-Y
2
J7054088B
12 J7254008A CUSHION-X
1
0133-631273-1M3 󰚟󰚟󰚟󰚟󰚟
13 J7154088B LM󰚟PLATE2
1
J7154088B
14 J7054090B SENSOR󰚟DOG-X
2
J7054090B
15 J7154096C HEAD󰚟BASE
1
J7154096C
16 J6607028A LM󰚟GUIDE 2 LWL15C2R0880BT1P󰚟
17 J7154097A BRACKET󰚟CUSHION-X 1 0133-631273-2M3
18
19
20
21
22
23
24
25
26
27
