CP45 配件说明.pdf - 第81页
Board Ass'y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J9060062B CAN HEAD BOARD ASS'Y 1 REV 1.0 2 J9060140D CAN HEAD LIGHT BOARD ASS'Y 1 CAN HEAD ILLUM (REV1.1) 3 J9060141A NEW FIDUCIAL INNER LED BOARD…

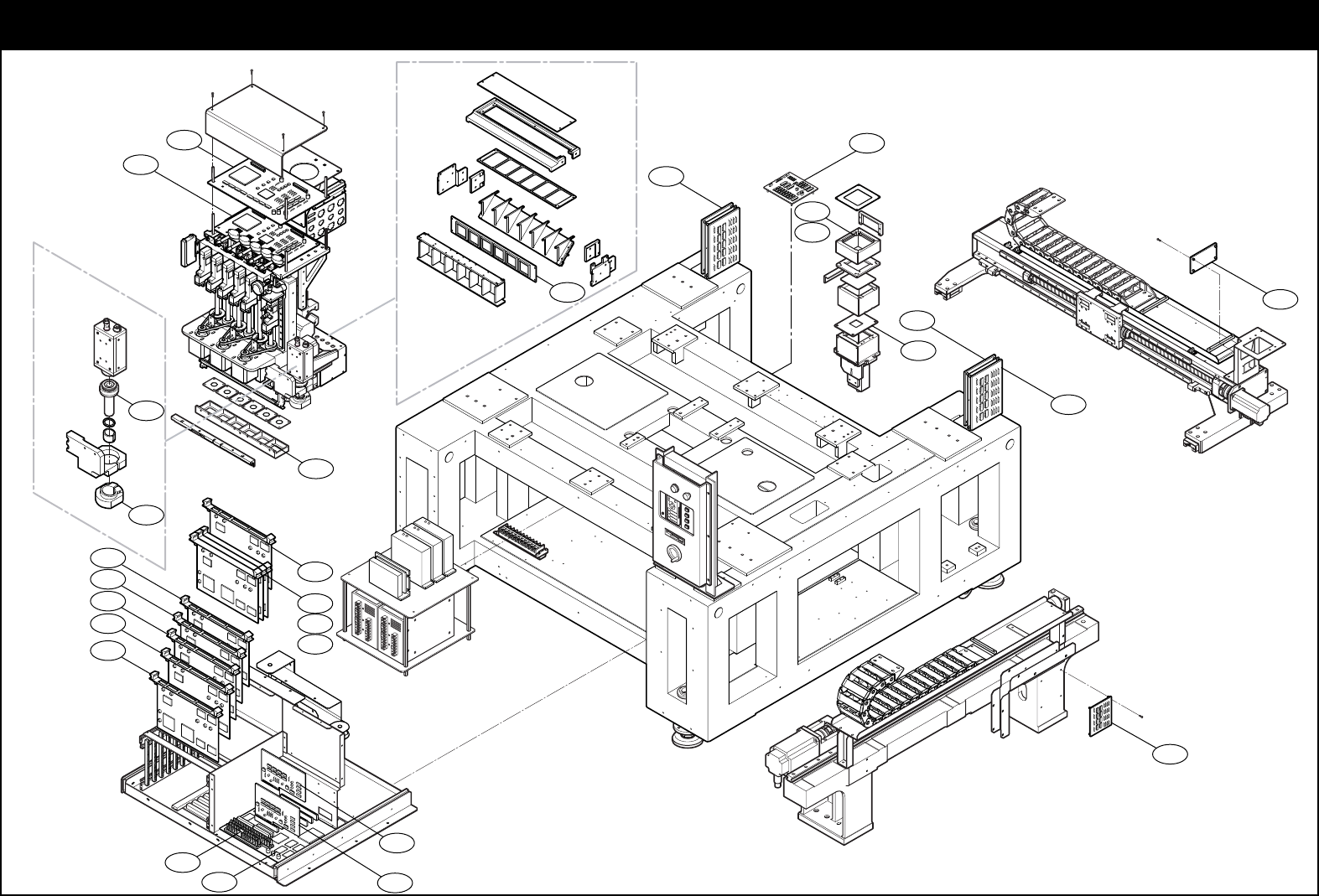

Board Ass'y
- 78 -
5
39
38
4
3
6
7
8
15
9
10
37
34
31
18
17
30
36
32
33
11
11
12
12
13
2
1
16
Board Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J9060062B CAN HEAD BOARD ASS'Y 1 REV 1.0
2
J9060140D CAN HEAD LIGHT BOARD ASS'Y 1 CAN HEAD ILLUM (REV1.1)
3
J9060141A NEW FIDUCIAL INNER LED BOARD ASSY 1 J9060141A
4
J9060102B
NEW FIDUCIAL OUT LED BOARD ASSY
1
J9061102B
5
J9059011A LIGHT ASS'Y 1 J9059011A
6
J9060079B HEAD SIDE LIGHT BOARD ASSY 1 HEAD SIDE LIGHT
7
J4809030A VME CPU BOARD 1 MVME-162PA-242
8
J9060065A AD/DA BOARD ASS`Y 1 MK3 REV 1.0
9
J9060066A DSP BOARD ASS`Y 1 MK3 REV 1.0
10
J9060067A MEMORY BOARD ASS`Y 1 MK3 REV 1.0
11
J9060162A VME AXIS(4) BOARD ASS'Y(SMD) 2 J9060162A
12
J9060161A VME AXIS(3) BOARD ASS'Y(SMD) 2 J9060161A
13
J9060059A CAN MASTER BOARD ASS'Y 1 REV 1.0
14
15
J4802009A GRAPHIC CARD 1 NVIDIA TNT2 TM64 32M(AGP)
16
J9060132A PC ISA I/F CARD ASS'Y 1 CP-45 REV 1.0
17
J5001005A MODULE RAM 1 168PIN 64MB
18
J4801013A MOTHER BOARD 1 COMMATE A370VB
19
20
21
22
23
24
25
26
27
- 79 -
Board Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
28
29
30
J9060060B CAN FEEDER BOARD ASS'Y 2 REV 1.0
31
J9801541 CONVEYOR PACK BOARD ASS'Y 1 30-CONV3-IO BOARD(2)
32
J9060073A LIGHT ASS'Y 1 STAGE INNER LIGHT
33
J9060074A STAGE OUTER LIGHT BOARD ASSY 1 STAGE OUTER LIGHT
34
J9060075A STAGE SIDE LIGHT BOARD ASSY 1 STAGE SIDE LIGHT
35
J9060097A SSA-VIS-FIX-IF ASS'Y 1 SSA-VISION-FIX-IF
36
J9060139C CAN STAGE LIGHT BOARD ASS'Y 1 CAN STAGE ILLUM (REV1.1)
37
J9060063B CAN CONVEYOR BOARD ASS'Y 1 REV 1.0
38
J9800398 X-AXIS I/F BOARD ASS'Y 1 C30-Z2-206-00-20 P/S
39
J9060055A Y SUB BOARD ASS'Y 1 REV 1.0
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
- 80 -
