Rear Middle P anel Ass'y - 86 - 12 9 10 13 3 1 2 5 5 6 6 6 6 6 6 7 8 11 4
Control Rack Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
28
J6103016A H-RAIL (REAR) 2 280L
29
J6103015A H-RAIL (FRONT) 2 280L
30
J7052412A BLANK PANNEL-1 1 J7052412A
31
J7052413A BLANK PANNEL-2 1 J7052413A
32
J5101017A HARD DISK DRIVER 1 IBM 40G (7200RPM)
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
- 85 -

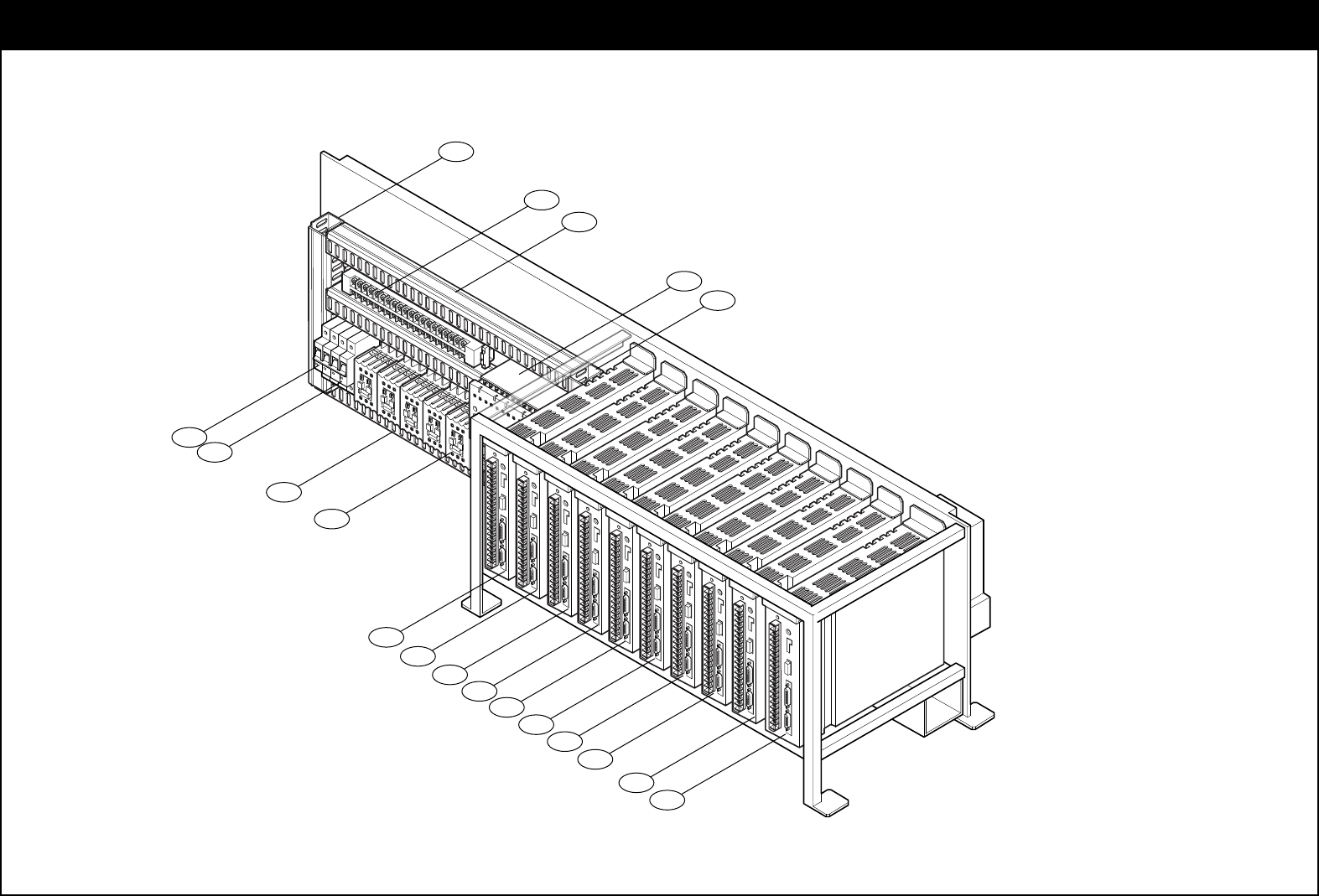

Rear Middle Panel Ass'y
- 86 -
12
9
10
13
3
1
2
5
5
6
6
6
6
6
6
7
8
11
4
Rear Middle Panel Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J3603006A CIRCUIT PROTECTOR
1
FAZN B20-2
2 J3603007A
CIRCUIT PROTECTOR
1
FAZN C16-2
3
J1202401
MAGNETIC CONTACTOR
5
CH-3 AC24 (4A)
4
J3501024A
SAFETY RELAY
1
G9S-301
5
J3108019A AC SERVO DRIVER
2
P30B04010DXS00E
6
J3108020A AC SERVO MOTOR
6
P30B04005DXS00E
7
J3108021A AC SERVO MOTOR
1
P30B06040DXS22E
8
J3108022A AC SERVO MOTOR
1
P20B10150HXS0EE
9
PVC DUCT
1
60W*80H*240L,GRAY
10
PVC DUCT
1
35W*60H*350L,GRAY
11
PVC DUCT
1
60W*80H*110L,GRAY
12
PVC DUCT
1
60W*80H*160L,GRAY
13
J9061705A CE TERMINAL BLOCK 1
1 MK-TB01CE
14
15
16
17
18
19
20
21
22
23
24
25
26
27
