Y1-Frame Ass'y
- 31 -
1
10
9
6
8
2
12
11
3
4
5
7
Y1-Frame Ass'
y
NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK
1 J7054097G Y1-FRAME 1 J7054097G
2 J7054094A BRACKET󰚟GUIDE󰚟REAR-Y 1 0133-631161-2M3
3 J7054093A BRACKET󰚟GUIDE󰚟FRONT-Y 1 0133-631161-1M3
4
5
6
7 J6607029A LM󰚟GUIDE
2
HSR25󰚟R2󰚟UU󰚟C1+1420L󰚟P
8 J7054092B GUIDE󰚟CABLE󰚟CHAIN-Y 1 J7054092B
9 J7154109B CABLE󰚟TIE-DOWN 3 J7154109B
10 J6102005A CABLE󰚟CHAIN
1
MP3005-R70-17LINK+9SHELF
11 J7254010A CUSHOIN󰚟CABLE󰚟CHAIN-Y 1 0131-631163-M3
12 J7054095C BRACKET󰚟CABLE 1 J7054095C
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
- 32 -

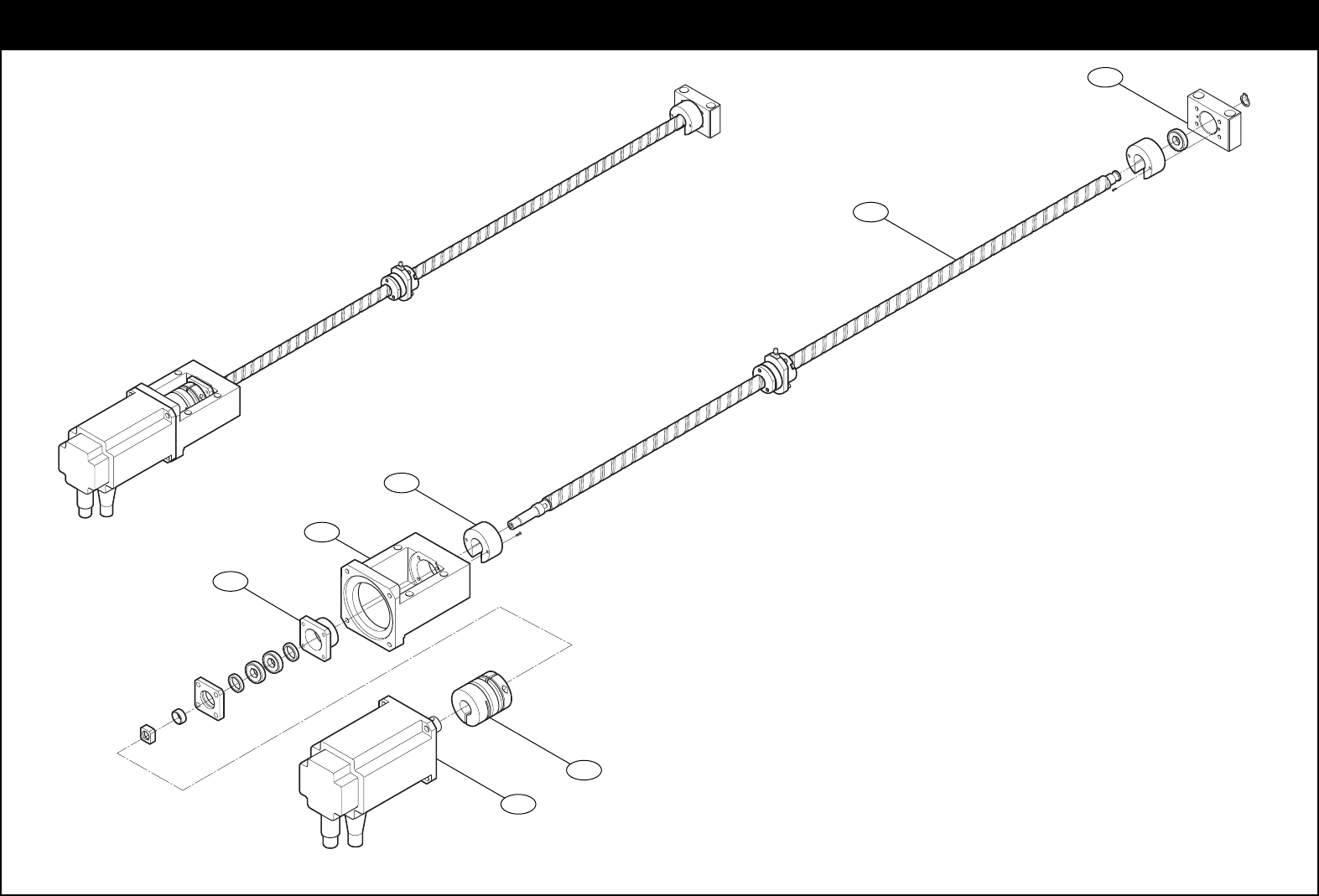

Y-Ball Screw Ass'y
- 33 -
2
1
5
7
3
4
6
