CP45 配件说明.pdf - 第61页
R_Conveyor 1 Ass'y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J7053226A SUPPORT-WIDE ADJUST 2 J7053226A 2 J2102045 COVER SUPPORT 1 1 0135-641126 3 J6607036A LM GUIDE (WIDTH) 2 SBG20-SL-1-420-N 4 J7053228A SCREW …

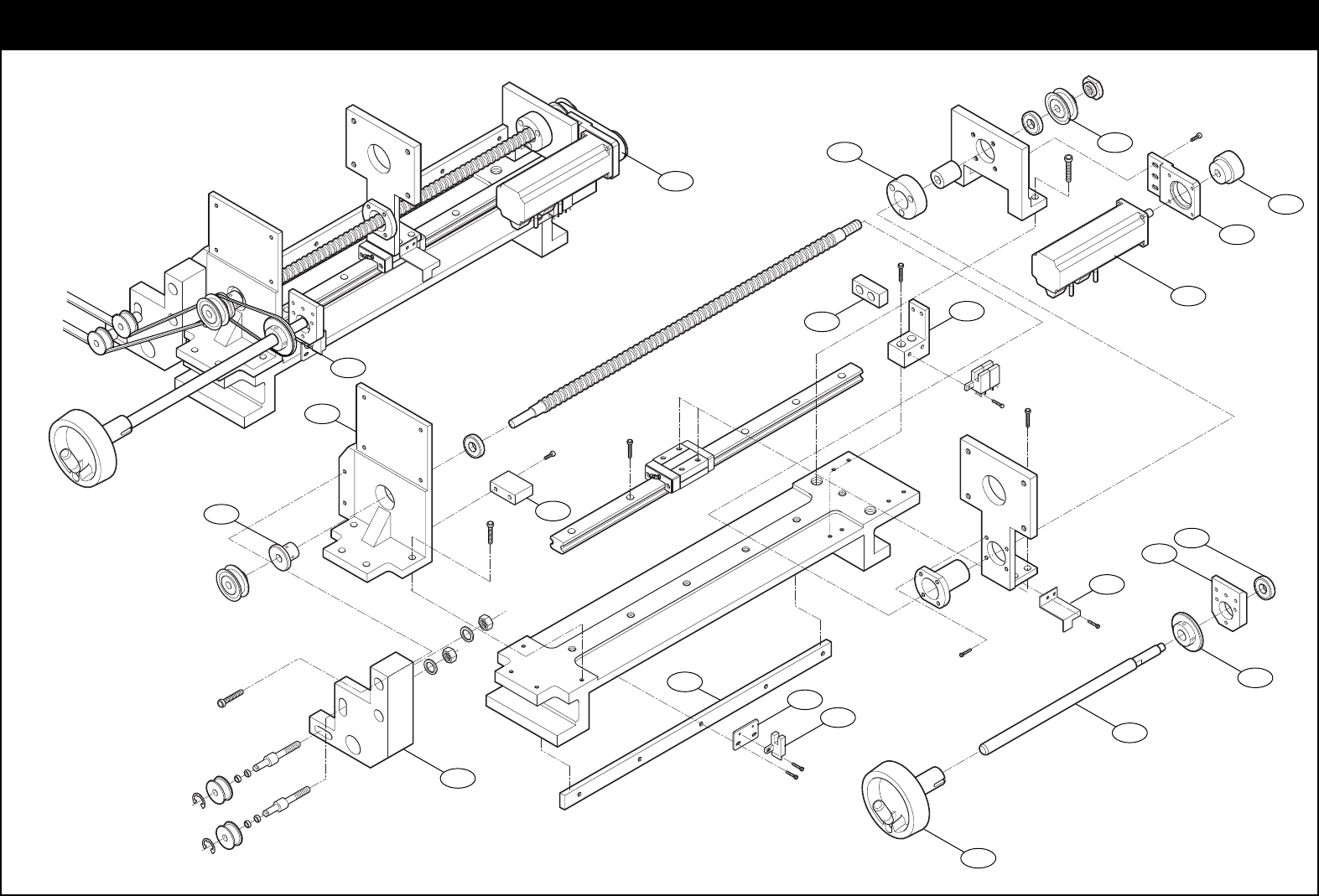

R_Conveyor 1 Ass'y
- 58 -
4
14
15
5
9
2
1
21
19
11
12
13
17
16
14
10
7
3
18
20
7
6
R_Conveyor 1 Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7053226A SUPPORT-WIDE ADJUST 2 J7053226A
2
J2102045 COVER SUPPORT 1 1 0135-641126
3
J6607036A LM GUIDE (WIDTH) 2 SBG20-SL-1-420-N
4
J7053228A SCREW STAND 2 J7053228A
5
J7053225A FIX STAND(LEFT) 1 J7053225A
6
J6614003A LEAD SCREW (WIDTH) 2 DCM16+500L
7
J1300509 BALL BEARING 4 6000ZZ
8
J7053194A BEARING NUT 2 0131-641016
9
J7053227A MOVE STAND 2 J7053227A
10
J2101751 STOPPER WIDTH 1 0135-641025
11
J6609012A PULLEY - WIDTH 2 20-XL-025
12
J2101748 SPROCKET PLATE(L) 1 0135-641021
13
J7053203A IDLER SHAFT 4 0145-641019
14
J6601091A DU BUSH 8 MB0606DU
15
J7053222A IDLER 2 0145-641149
16
J1300052 E-RING 4 DIA6
17
J6609013A PULLEY - IDLER 2 0145-641136
18
J2101750 STOPPER WIDTH 2 0135-641024
19
J6602029A TIMING BELT 1 976XL025
20
J7053225A FIX STAND 1 J7053225A
21
J7053229A BRACKET-LEFT 1 J7053230A
22
23
24
25
26
27
- 59 -

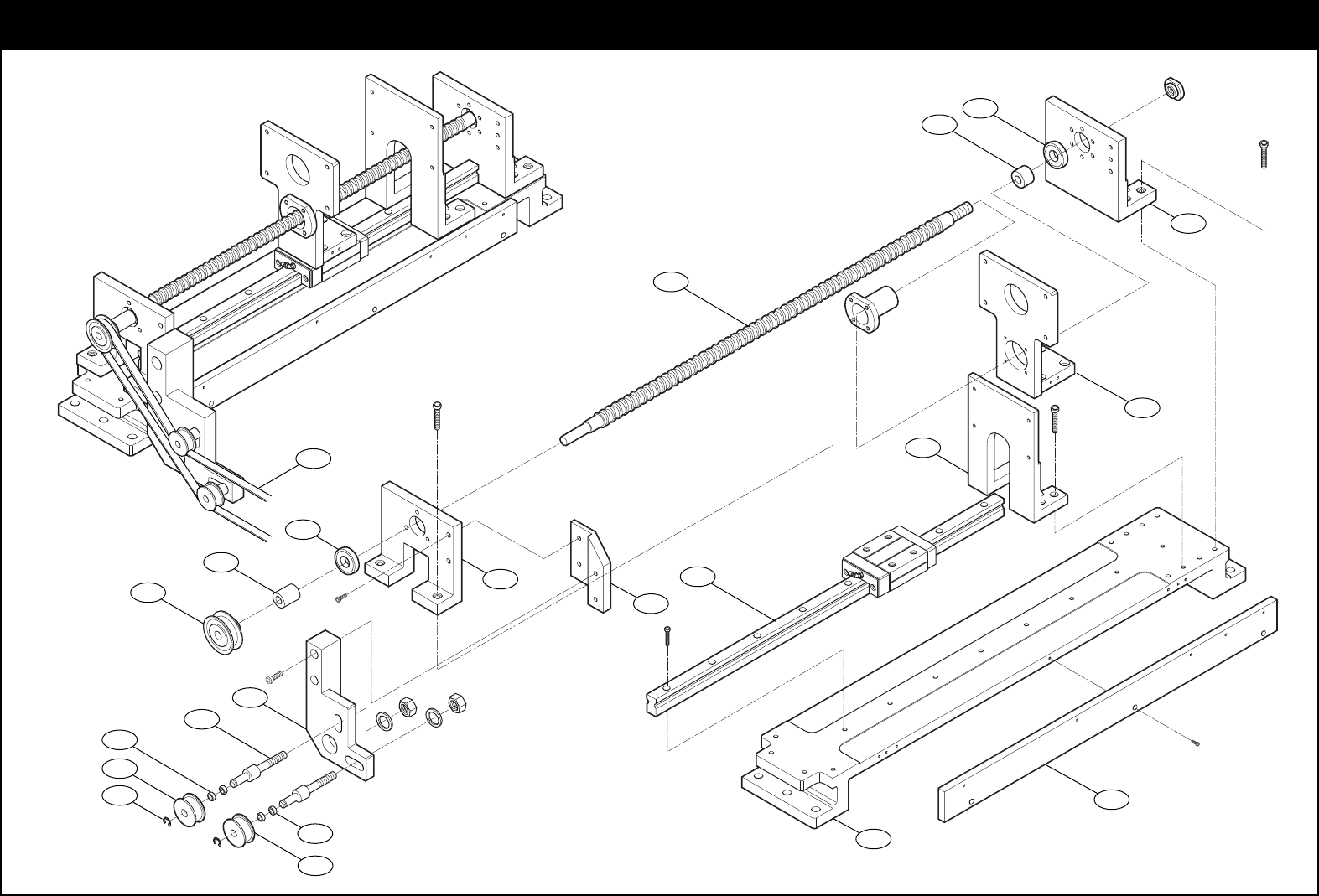

Conveyor 2 Ass'y
- 60 -
19
20
18
15
12
11
9
10
1
2
3
6
22
21
7
14
16
4
13
8
5
17
