CP45 配件说明.pdf - 第37页

Y2-Frame Ass'y - 35 - 1 2 3

Y-Ball Screw Ass'

y

NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK

1 J3108012A SERVO󰚟MOTOR

1

P20B10150HXS0E

2 J6612011A COUPLING

1

SFC050WD-12B22B

3 J7054089B MOTOR󰚟BRACKET-Y

1

J7054089B

4 J7254007B CUSHION-Y󰚟[ALX50-24] 1 ALX50-24

J7254023A CUSHION-Y(TSUBAKI용) 1 ALX50-12

5 J6606017A BALL󰚟SCREW

1

20EF󰚟1Q40-1160C5F

6 J7054084A BEARING󰚟SUPPORT-Y

1

0131-631056-2M3

7 J1301708 SUPPORT󰚟UNIT󰚟[FK15S1]

1

FK15S1

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

- 34 -

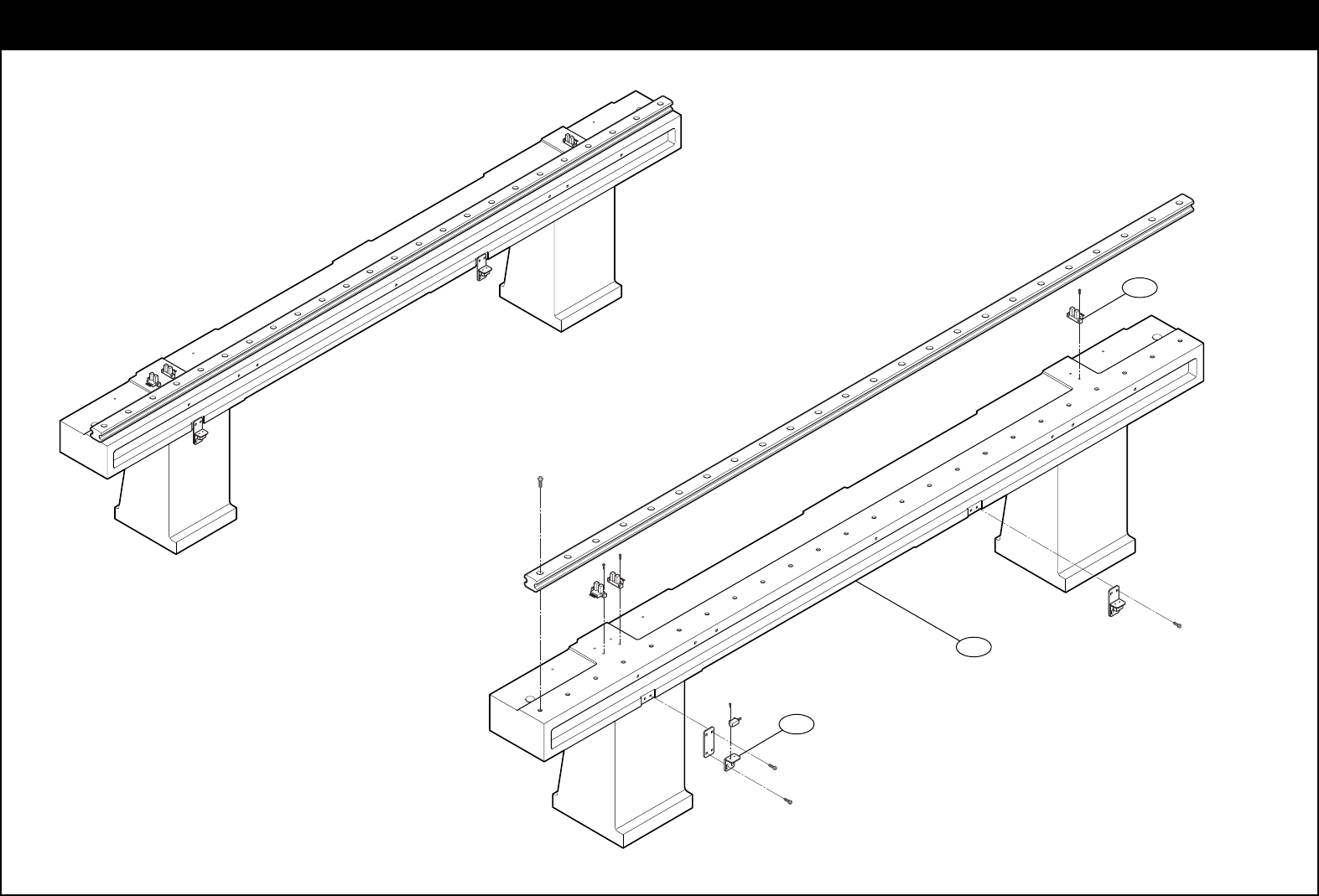

Y2-Frame Ass'y

- 35 -

1

2

3

Y2-Frame Ass'

y

NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK

1 J7054098D Y2-FRAME

1

J7054098D

2 J1300484 LIMIT󰚟SENSOR

3

EE-SX671

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

- 36 -
