CP45 配件说明.pdf - 第84页
Electric Device Ass'y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J7052319B PRESSURE GAGE PANEL 1 J7052319B Option(REAR SID CONTROL) 2 J4402015A POWER SUPPLY 2 DH-M80B 3 4 J3152009A C/V STEP MOTOR DRIVE 1 CSMD2-L…
6
13
10
11
12
Electric Device Ass'y
- 81 -
17
15
14
20
21
19
18
8
7
22
5
4
2
Electric Device Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7052319B PRESSURE GAGE PANEL 1 J7052319B
Option(REAR SID CONTROL)
2
J4402015A POWER SUPPLY 2 DH-M80B
3
4
J3152009A C/V STEP MOTOR DRIVE 1 CSMD2-LU340CON
5
J3152007A STEP MOTOR DRIVER 3 PMD03C
6 J7052348B
BKT-RE/RESISTOR 1
J7052348B
7
J7052349B I/F BOARD BRACKET 1 J7052349B
8
J7052019C PANNEL-AIR SERVICE 1 J7052019C
9
10
J7052366I PANEL(POWER INPUT-CE) 1 J7052366I
11 J3603008A
CIRCUIT BREAKER 1
FAZN B32-2-FIM0.03
12
J7152027A GROUND TERMINAL 1
13 J2609004A
TRANSFORMER 1 1PH, 6.3KVA CE
14
J7152028B GROUND BASE 1 J7152028B
15
J1202399
COOLING FAN 4 SJ1238HA1 (BALL BEARING)
16
J7252028A N/F COVER(POWER) 1 0145-614000-101-C
17 J2901007A
Noise Filter(#1) 1 SUP-2030-SS
18
J7052355B RELAY BASE 1 J7052355B
19
J1200261
RELAY SOCKET 2 PYF08A
20
J9061707A CE TERMINAL BLOCK 3
1
MK-TB03CE
21 J3602005A FUSE TERMINAL BLOCK
5
SRSI 10-T35-K
22
J9061706A CE TERMINAL BLOCK 2
1
MK-TB02CE
23
24
25
26
27
- 82 -
24
21
22
33
32

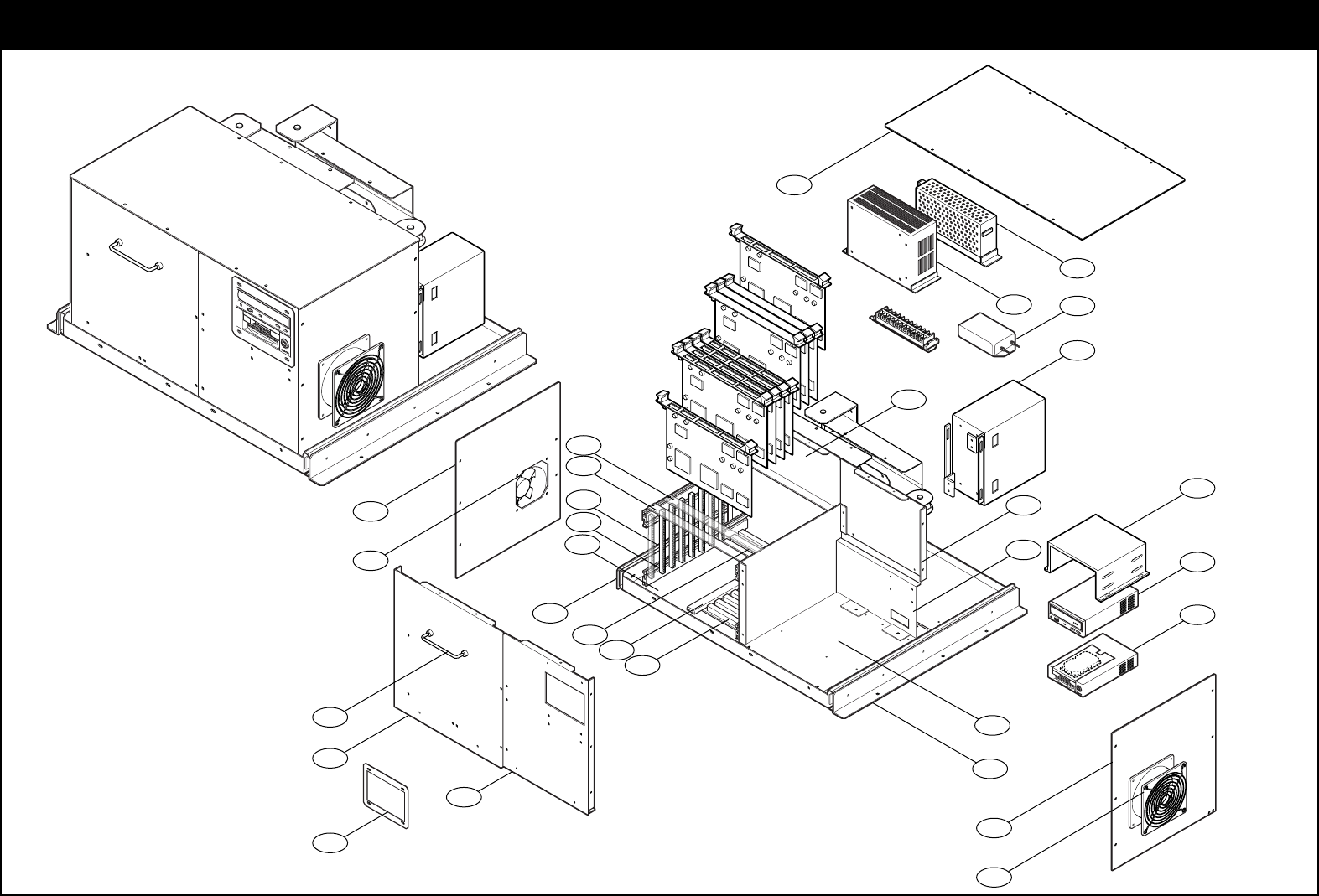

Control Rack Ass'y
- 83 -
25
18
20
2
1
3
26
27
8
29
4
6
23
15
12
14
28
30
7
31
14
16
17
13
11
