CP45 配件说明.pdf - 第92页
Stage Camera Ass'y - 90 - 19 20 2 17 3 16 8 13 7 18 4 6 11 5 1 15 9 14 12 10
Front Function Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7052581C OP PANEL-FRONT 1
2 J3403025A
PUSH BUTTON SWITCH 1 AL6-M(BLACK)
3 J3403026A
PUSH BUTTON SWITCH 1 AL6-M(LED : 24VDC, BLUE)
4 J3403027A
PUSH BUTTON SWITCH 1 AL6-M(LED : 24VDC,GREEN)
5 J3403028A
PUSH BUTTON SWITCH 1 AL6-M(LED : 24VDC,WHITE)
INCLUDE R-FEEDER CHAGE
6
J7052583A OP PANEL - INNER 1 J7052583A
7
J7052305A CABLE COVER 1 AH30-XBE(DC/AC12-24V)
8
J7052316B SUPPORT-F/PANEL 1 J7052316B
9
J2100058 SPRING 1 0131-614007
10
J1201001 EMERGENCY SWITCH 2 AH165-VR02
IINCLUDE REAR SIDE
11
J1201021 BUZZER 1 AH30-XBE(DC/AC12-24V)
12
J7052320C PANEL-MAIN S/W 1 J7052320C
13
J4713014A I/O SWITCH LED LAMP 1
M22-LED
14 J3403041A I/O SWITCH
1
RMQ TITAN M22
15
J3406005A LOAD SWITCH
1
PI-25
16
J7052320C PANEL-MAIN S/W
1
J7052320C
17
J7052225B FDD PANEL
1
J7052225B
18
19
20
21
22
23
24
25
26
27
- 89 -

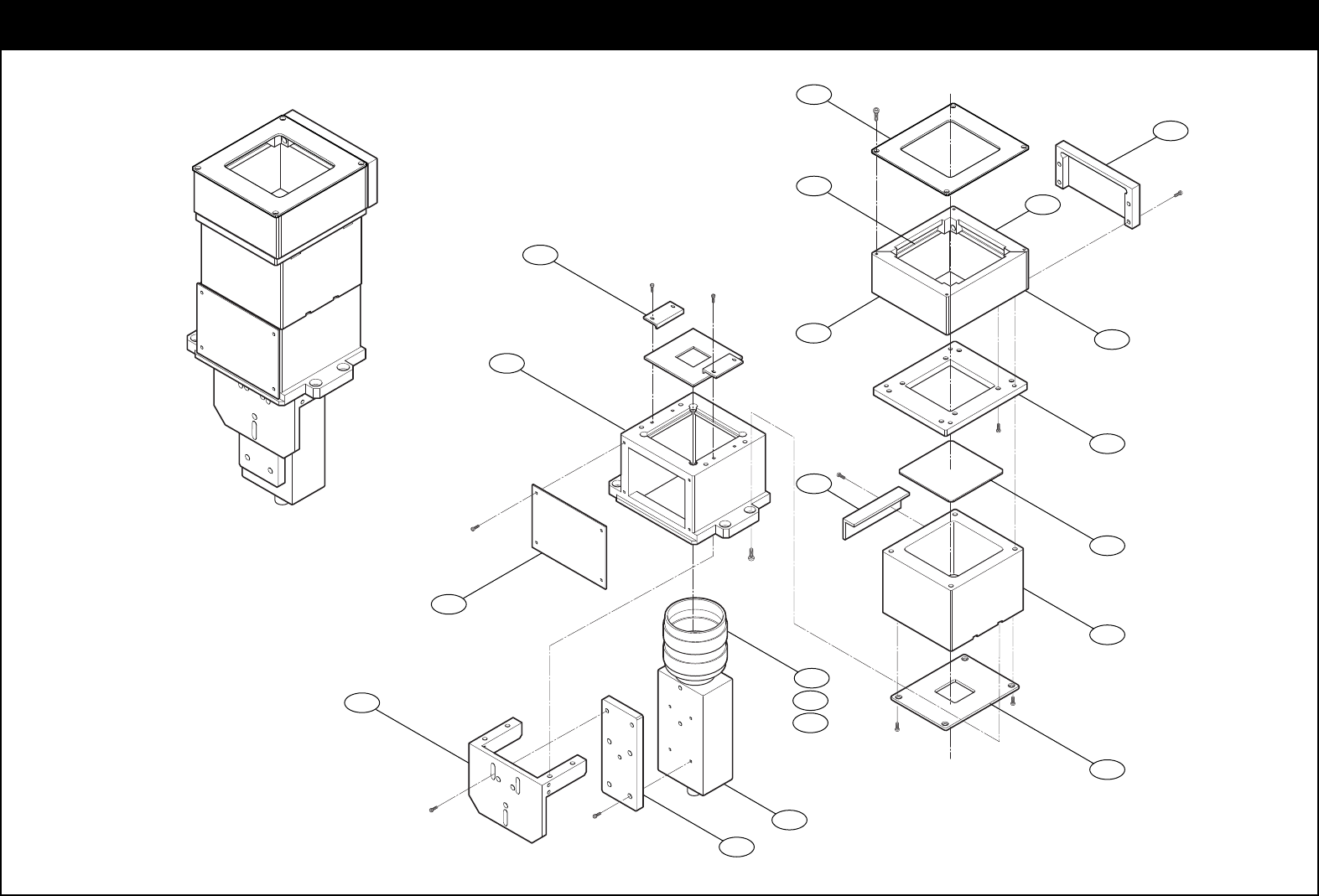

Stage Camera Ass'y
- 90 -
19
20
2
17
3
16
8
13
7
18
4
6
11
5
1
15
9
14
12
10
Stage Camera Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7159171C CAMERA STAND 20mm 1 J7159171C
2
J7159119A CAMERA HOLDER 1 J7159119A
3
J7159113A LIGHT GUIDE#2 2 J7159113A
4
J7159112A LIGHT GUIDE#1-1 1 J7159112A
5
J7159111A LIGHT GUIDE#1 1 J7159111A
6
J7159114B WIRE COVER 1 J7159114B
7
J7159115A LIGHT GUIDE BLOCK 1 J7159115A
8
J7159166D TUBE 20mm 1 J7159166D
9
J7159168C LED BLOCK 20mm 1 J7159168C
10
J7159121A LIGHT COVER 1 J7159121A
11
J7159123A SUPPORT COVER 1 J7159123A
12
J7159160C GLASS PRESS 1 J7159160C
13
J7259016A DIFFUSER 1 J7259016A
14
J7259017B REFLECTOR 4 J7259017B
15
J7259026A LED-PRESS 2 J7259026A
16
J6754004B COVER GLASS 1 J6754004B
17
J1300491 CCD CAMERA 1 SFA-410ED
18
J6739005A COSMICAR LENS 1 B2518
19
J1300965 CLOSE UP RING 1 T5
20
J1300983 CLOSE UP RING 1 T1 (PENTAX)
21
22
23
24
25
26
27
- 91 -
