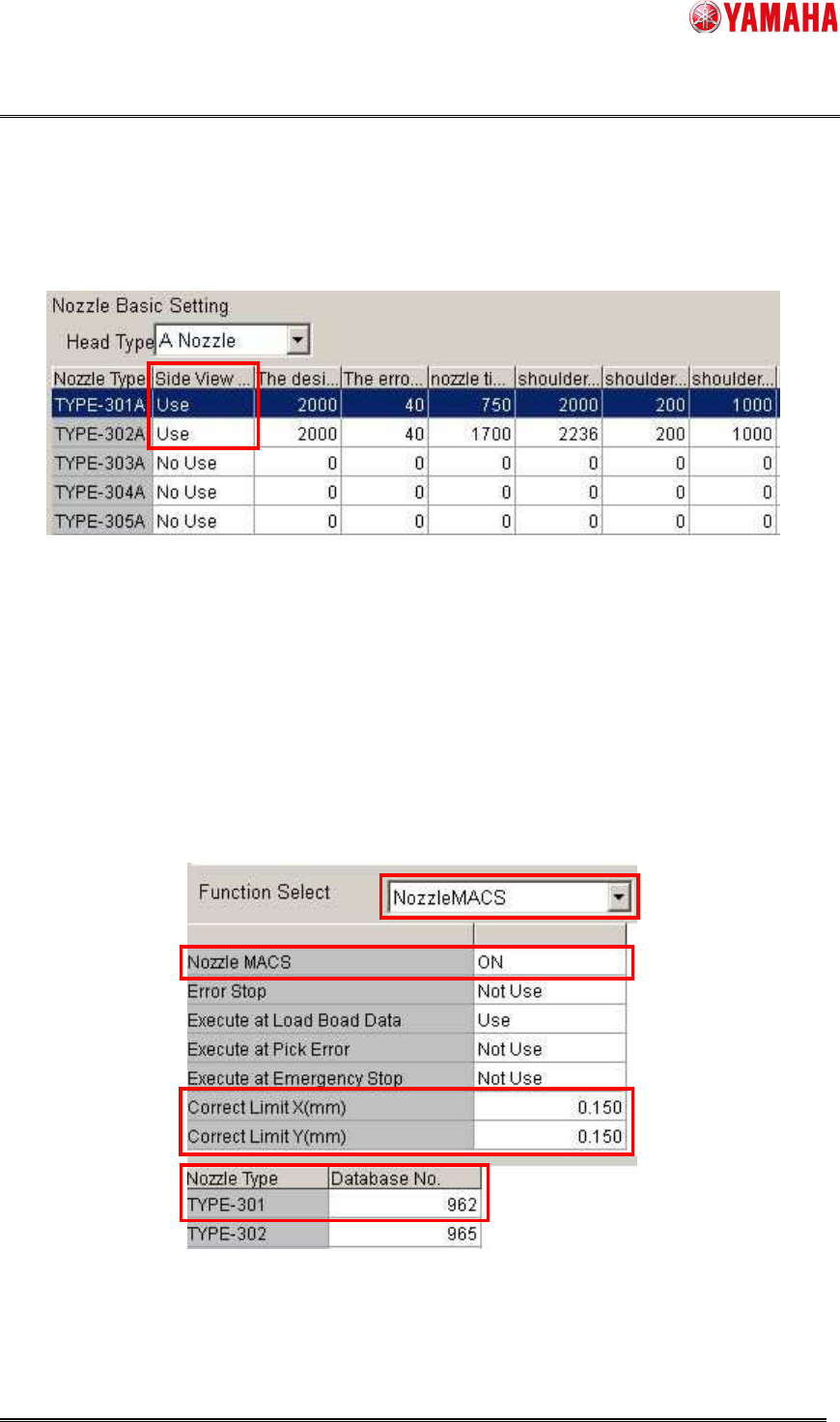

4) Nozzle Shape Check
Nozzle Shape Check is performed only for a nozzle with [Setting] - [Specification Information] -
[Side View Camera Spec] - [Nozzle Basic Setting] - [Side View Camera] is set to “Use”.
※ Nozzle Shape Check works under the following conditions.
・ On a machine equipped with a side view camera.
5) Nozzle Alignment Check
Nozzle Alignment Check is performed based on the setting of [Setting] - [Machine Data] -
[Precision] - [PickupMACS] - [NozzleMACS]. Set [Nozzle MACS] to “ON”.
The target nozzle type should be registered as database No.960/962/963. It is judged as “NG”
when misalignment from the rotation center of a nozzle is over [Correct Limit(mm)] of
NozzleMACS.
Product Engineering Division
SMT Section
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50394
16/21

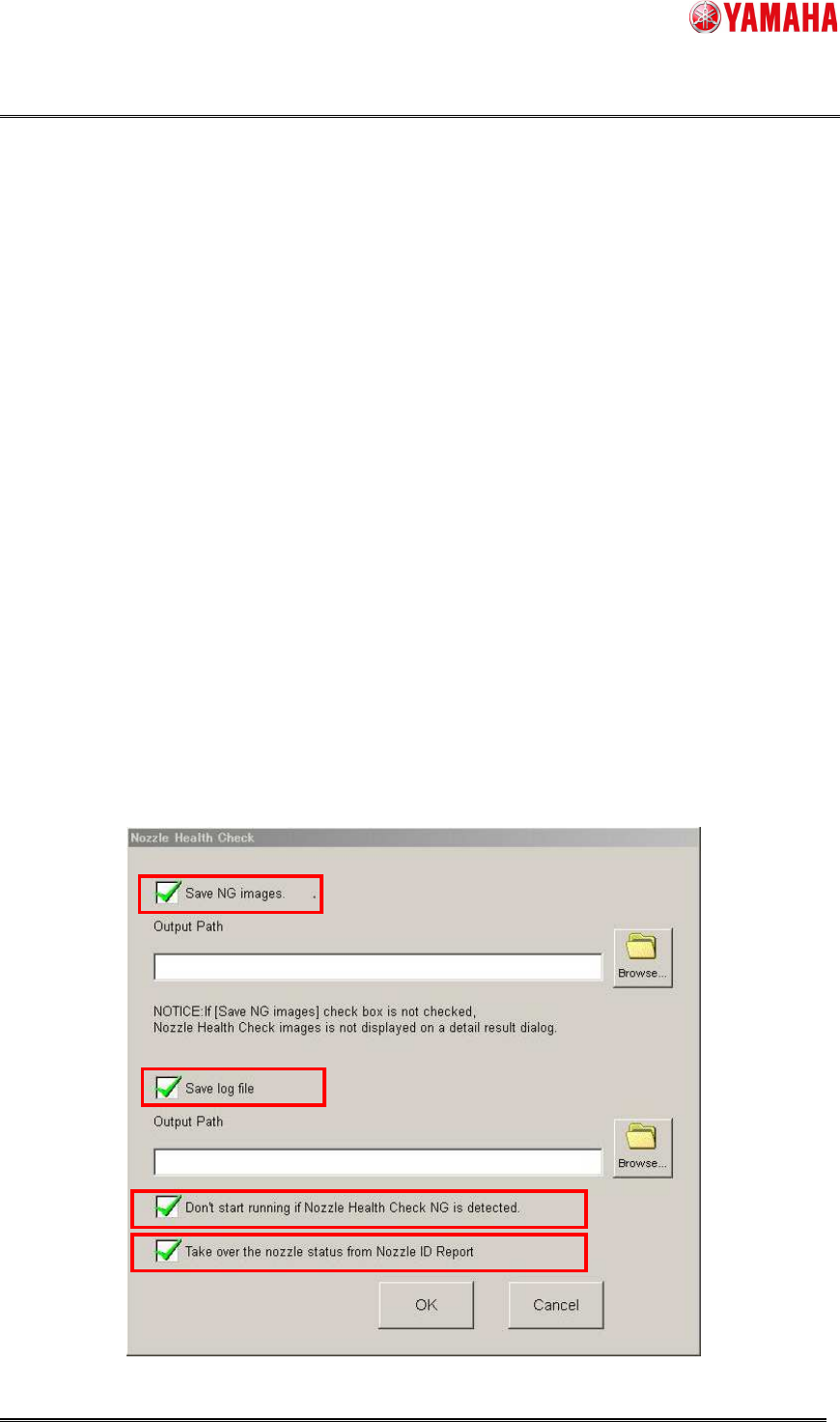

4.2 Software Setting
When the [Save NG images.] check box is checked, it saves an image of NG nozzle detected
by Tip Dirt Check, Shape Check, or Alignment Check.
When the [Save log file] check box is checked, it saves log file of check results. But when
[Output Path] is empty, it does not save log file.
When the [Don’t start running if Nozzle Health Check NG is detected.] check box is checked,
auto-running does not start as long as Nozzle Health Check is not completed or an abnormal
nozzle is detected in board data. In the Nozzle Health Care function, if there is usable spare
nozzle, auto-running start.
▲4
Only when the Nozzle Health Care function is valid, [Take over the nozzle status from Nozzle ID
Report] is displayed. When this check box is checked, it is possible to take over the nozzle status
from Nozzle ID Report. When this check box is not checked, the Nozzle Health Check status is
set to [Uncarried] in machine powered on.
※ It is possible to take over Only the nozzle status. The each result of the Nozzle Health Check
is not taken over.
▲4
You need to have administrator authority to make this setting.
The output path folder requires at least 100MB of free space.
These check boxes are unchecked by default.
Product Engineering Division
SMT Section
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50394
17/21
5. Error Message
The table below is the error messages added for this function.
Error Message List
No. Title Cause and Solution
7573
Nozzle Health Check is
completed.
No abnormal nozzle was detected.
7574
Nozzle Health Check is
completed.
Abnormal nozzle was detected.
For details, refer to the [Monitor] - [Nzle Hlth Chk] screen.
7575
Abnormality detected at
Nozzle Health Check.
An abnormality was detected at Nozzle Health Check, so
that auto-running is not started.
Refer to the [Monitor] - [Nzle Hlth Chk] screen.
