Product Engineering Division
SMT Section
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50394
3/21
1. Introduction
Nozzle Health Check is available in the following machine and software version.
Table 1. Machine and Version
Machine Version Note
YS88, YS100,
YS12 series, YG12 series
YS24(X) series
V3.45STD R1.000 or later
YSM40、YSM20
▲2
V4.50STD R1.000 or later
YSM10 V4.61STD R1.000 or later
▲3
YSM40R V4.62STD R1.000 or later
Nozzle Health Care(▲4)
Product Engineering Division
SMT Section
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50394
4/21
2. Function Overview
This function performs nozzle condition check before starting production to avoid using a nozzle
in a bad condition. While this function is active, auto-running does not start if there is an
abnormal nozzle or if Nozzle Health Check is not performed.
Contetns of Nozzle Health Check are as follows. These contents are checked in order of the
table below.
In YSM40R/Super Hi-Speed Head, when same type nozzles more than the number of heads
exist, they are used as spares. If the nozzle used in the production is abnormal, the machine can
continue production by using spare nozzle instead. The spare nozzle exchange function using
[Nozzle Free Layout Function] for YSM40R/Super Hi-Speed Head is called [Nozzle Health Care]
function.
▲4
Table 2. Contents of Nozzle Health Check
No.
Item Description
1 Vacuum Check Vacuum level of head shaft is measured and compared to the
defined value.
This will prevent falling parts and pick/mount failure.
2 Nozzle Tip Dirt Check Performs recognition of nozzle tip to find any dirt on it.
This will prevent recognition failure and mount failure.
3 Nozzle Buffing Check Checks if nozzle buffing is performed correctly.
This will prevent falling parts and pick/mount failure.
4 Nozzle Shape Check Checks if there is any problem with nozzle shape and recognition
error rate.
5 Nozzle Alignment Check Checks if misalignment from the rotation center of a nozzle is
within [Correct Limit] of NozzleMACS.
This will keep pickup rate properly and prevent mount failure.
Product Engineering Division
SMT Section
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50394
5/21
3. Function Details

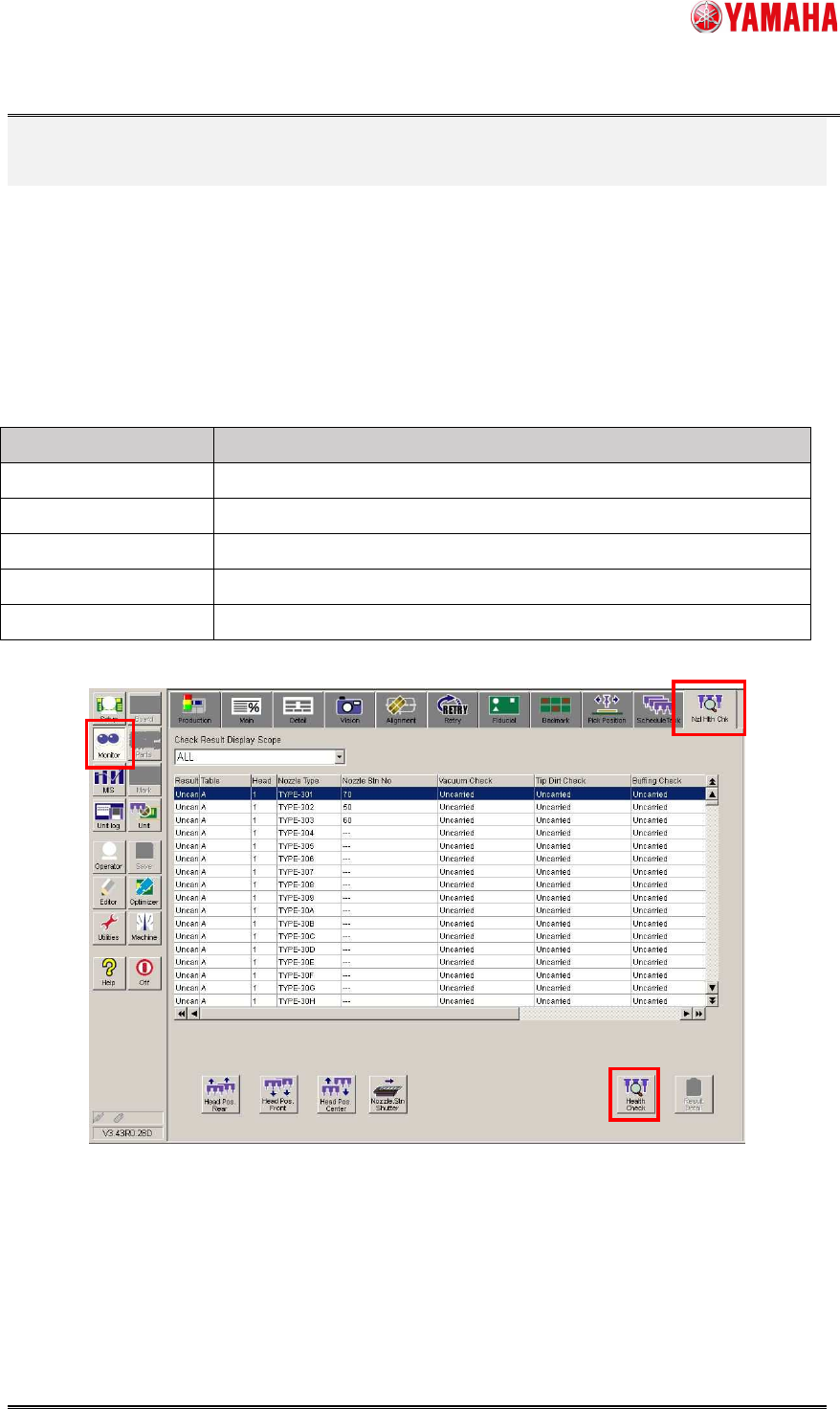

3.1 Nozzle Health Check screen
Open the [Monitor] - [Nzl Hlth Chk] tab. Checking results of each table, head, and nozzle type are
displayed. The table below is status of nozzles. Press the [Health Check] button to show the
nozzle selection dialog.
Table 1.1 Nozzle Status
Status Contents
Uncarried Nozzle health check is not performed.
Unnecessary
▲1
Check is unnecessary
OK Normal nozzle
NG Abnormal nozzle
Unusable
▲4
Unusable nozzle
