IC and Component Selection for Space Systems – Presented by Kenneth A. LaBel

Archival Radiation Performance –

Flight Heritage

• Can we make use of parts with

flight heritage and no ground

data for new mission?

• Similar flow to using archival

ground data exist, but consider

as well

– Statistical significance of the

flight data

• Environment severity?

• Number of samples?

• Length of mission?

– Has storage of devices affected

radiation tolerance or reliability?

– And so forth

• This approach is rarely

recommended by the radiation

experts

Some heritage designs last

better than others

IC and Component Selection for Space Systems – Presented by Kenneth A. LaBel

IC’s with no Guarantee or Heritage

• Radiation testing is required in

the vast majority of cases

– Testing complexities and

challenges are discussed

elsewhere (e.g., Swift during this

short course, LaBel during the

conference)

– The true challenge is to gather

sufficient data in a cost and

schedule effective manner.

• A backup plan should be made in

case device fails to pass radiation

criteria.

• Reliability testing has similar

concerns

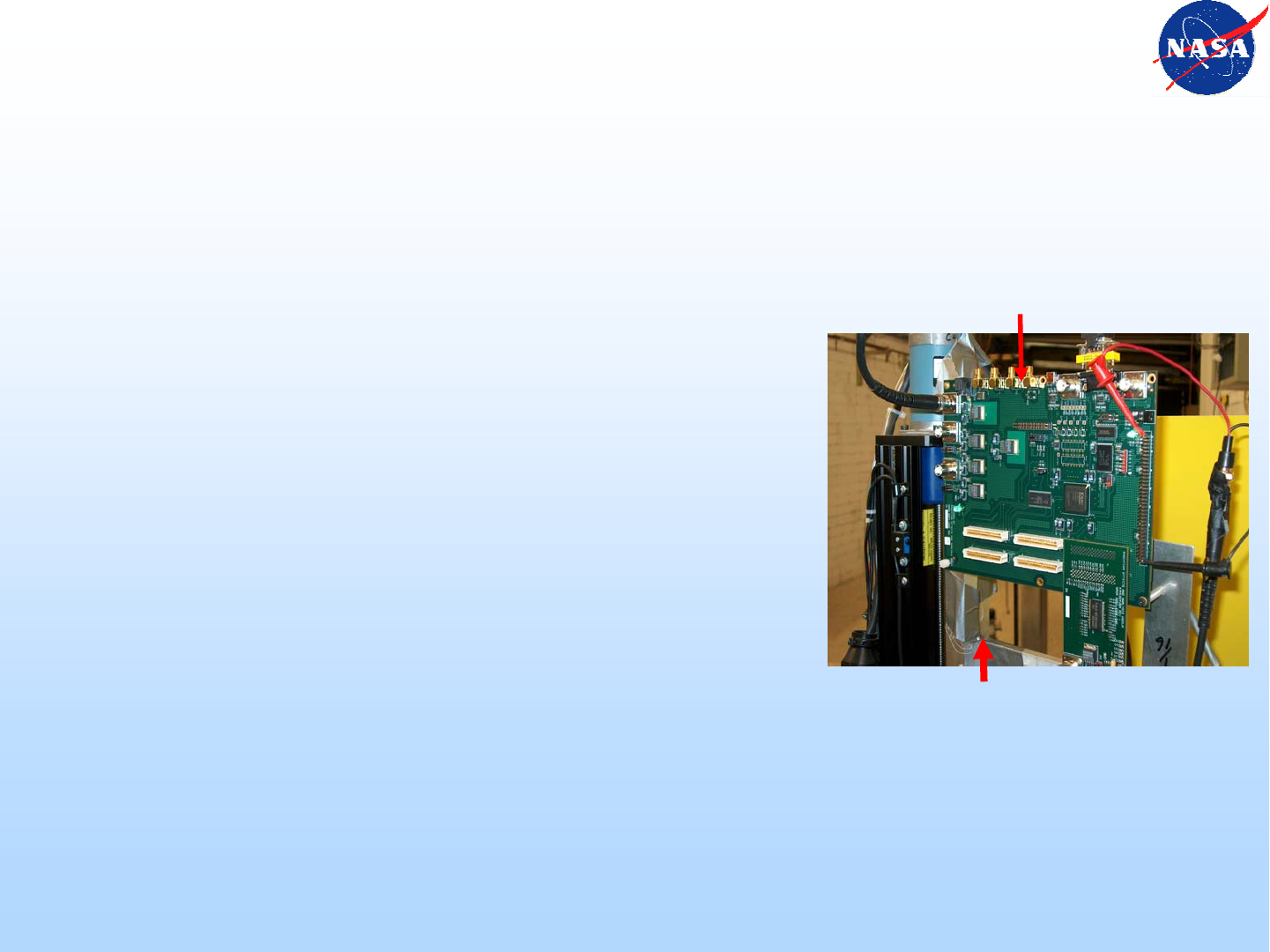

FPGA-based motherboard

SDRAM mounted on a daughtercard

“Abandon all hope, ye’ who enter here”

IC and Component Selection for Space Systems – Presented by Kenneth A. LaBel

Is Testing Always Required?

• Exceptions for testing may include

– Operational

• Ex., The device is only powered on once per orbit and the

sensitive time window for a single event effect is minimal

– Acceptable data loss

• Ex., System level error rate may be set such that data is

gathered 95% of the time. This is data availability. Given

physical device volume and assuming every ion causes

an upset, this worst-case rate may be tractable.

– Negligible effect

• Ex., A 2 week mission on a shuttle may have a very low

TID requirement. TID testing could be waived.

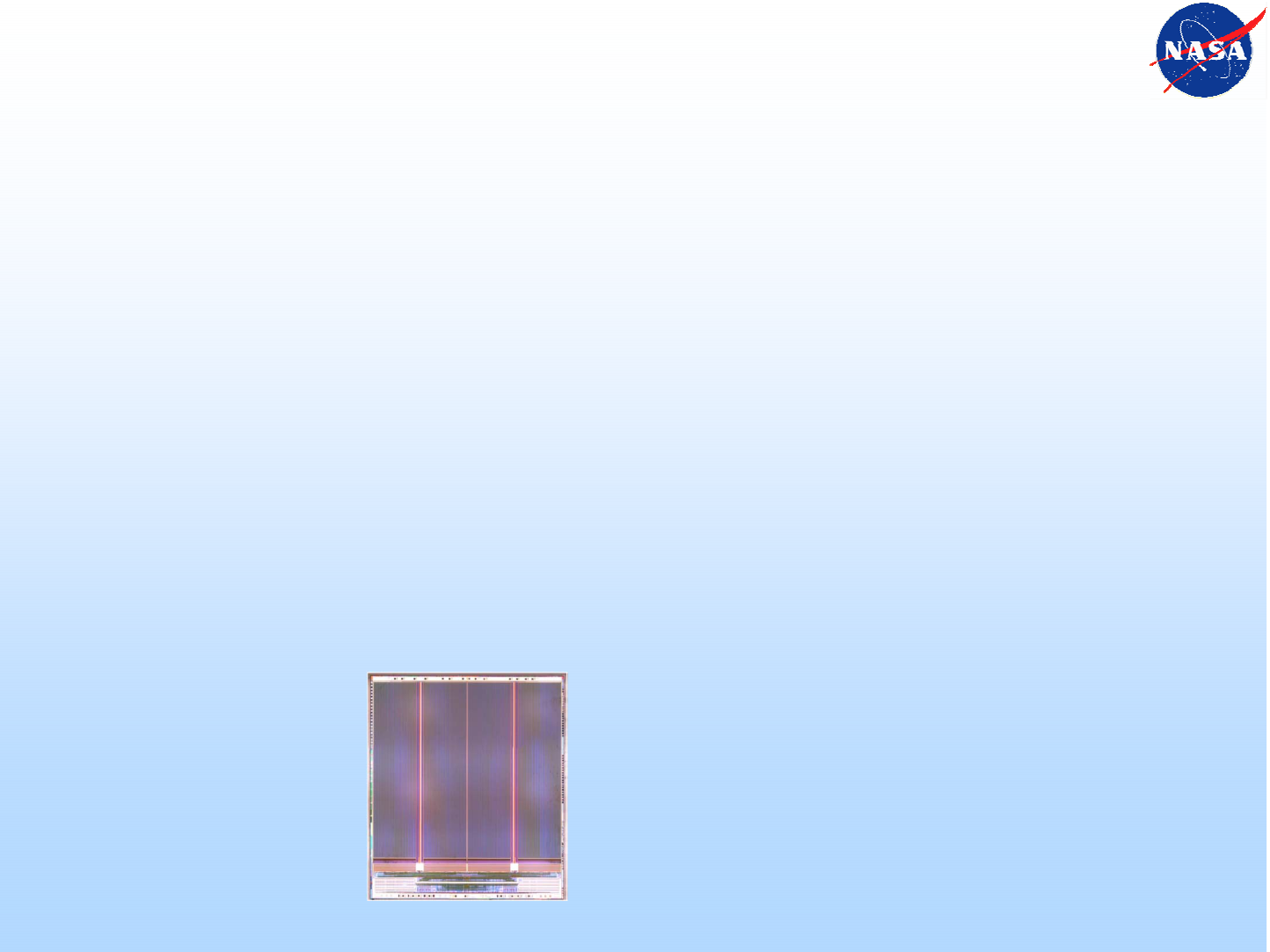

A FLASH memory may be acceptable

without testing if a low TID

requirement exists or not powered on

for the large majority of time.
