ACT - Accurac y Check Tool / User Manual 09/2015 Edition 23 Figure 3- 19 displays the description of a placed ACT board wit h CC02 - 05 g lass components fo r the Twin Head, as an exampl e: Figure 3-19: Example: ACT boa …

ACT - Accuracy Check Tool / User Manual 09/2015 Edition

The next screen is displayed in which you will see the folder structure for the boards.

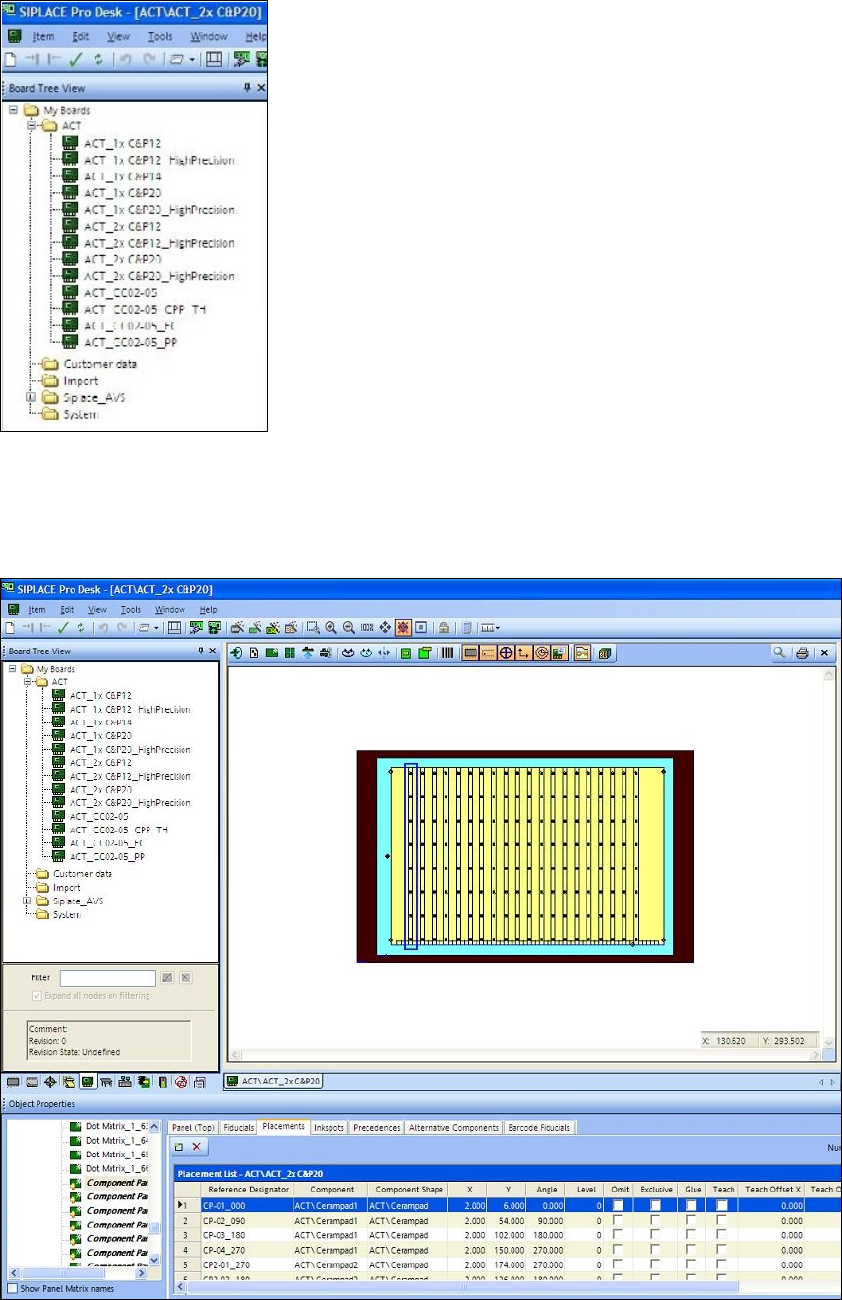

Figure 3-17: Folder structure in SIPLACE Pro

Figure 3-18 displays the ACT board with placed ceramic components, as an example. You can

also see the folder structure and the alternating component designations Cerampad1 and

Cerampad2 for alternating placement by both C&P20 heads.

Figure 3-18: Example: Board description for ACT in SIPLACE Pro for 2xC&P20

ACT - Accuracy Check Tool / User Manual 09/2015 Edition

Figure 3-19 displays the description of a placed ACT board with CC02-05 glass components for the

Twin Head, as an example:

Figure 3-19: Example: ACT board description for CC02-05 with Twin Head

ACT - Accuracy Check Tool / User Manual 09/2015 Edition

3.2.5 Importing Tables

The "Table import" process is analogous to that for importing boards (see previous section).

► At first, proceed as described in Figure 3-20 and Figure 3-21.

Figure 3-20: XML file on the ACT CD for import of tables to SIPLACE Pro

► Select the XML file for the tables from the ACT CD.

► Click Open.

The following screen is displayed:

Figure 3-21: Import of XML file for tables in SIPLACE Pro
