4OM-1610 1-23 3. Maintenance Spots : Chap.1 101 1-002 3.2.4 Feeder Base Driving Section Worm Gears (2 locations) Every 3 Months Lubrication (MOLYNOC GREASE AP1) Required T ime: 2 minutes Use No. 19 (brown) nozzle. Note N…
4OM-1610
1-22
3. Maintenance Spots : Chap.1
1011-002
Notice
Use a suction force (of a vacuum cleaner) for the cleaning.
Do not blow air to any cleaning section with an air gun.
When air is blown, the dirt and dust inside the machine will disperse,
causing the recognition system and the machine to malfunction.
QFP Glass Plate Jigs (2 pcs.)
Every Month Cleaning
Required Time: 1 minute
Wipe the jigs with a dry lens cleaning cloth.
Sebum (fingerprint) or oil
should not adhere to the QFP
glass plate jigs.
If sebum or oil adheres, wipe it
off with a lens cleaning cloth
which contains a small amount
of alcohol.
Notice
Fiducial Marks (4 locations)
Every Week Cleaning
Required Time: 2 minutes
Sebum (fingerprint) or oil
should not adhere to the fiducial
marks.
If sebum or oil adheres, wipe it
off with a lens cleaning cloth
which contains a small amount
of alcohol.
Notice
Wipe the upper surfaces of the fiducial marks
with a dry lens cleaning cloth.
Teaching Plates (2 locations)
Every Month Cleaning
Required Time: 1 minute
Remove foreign substances and unrequired
components and wipe off dirt and dust with a
rag.
F4A15
4OM-1610
1-23
3. Maintenance Spots : Chap.1
1011-002

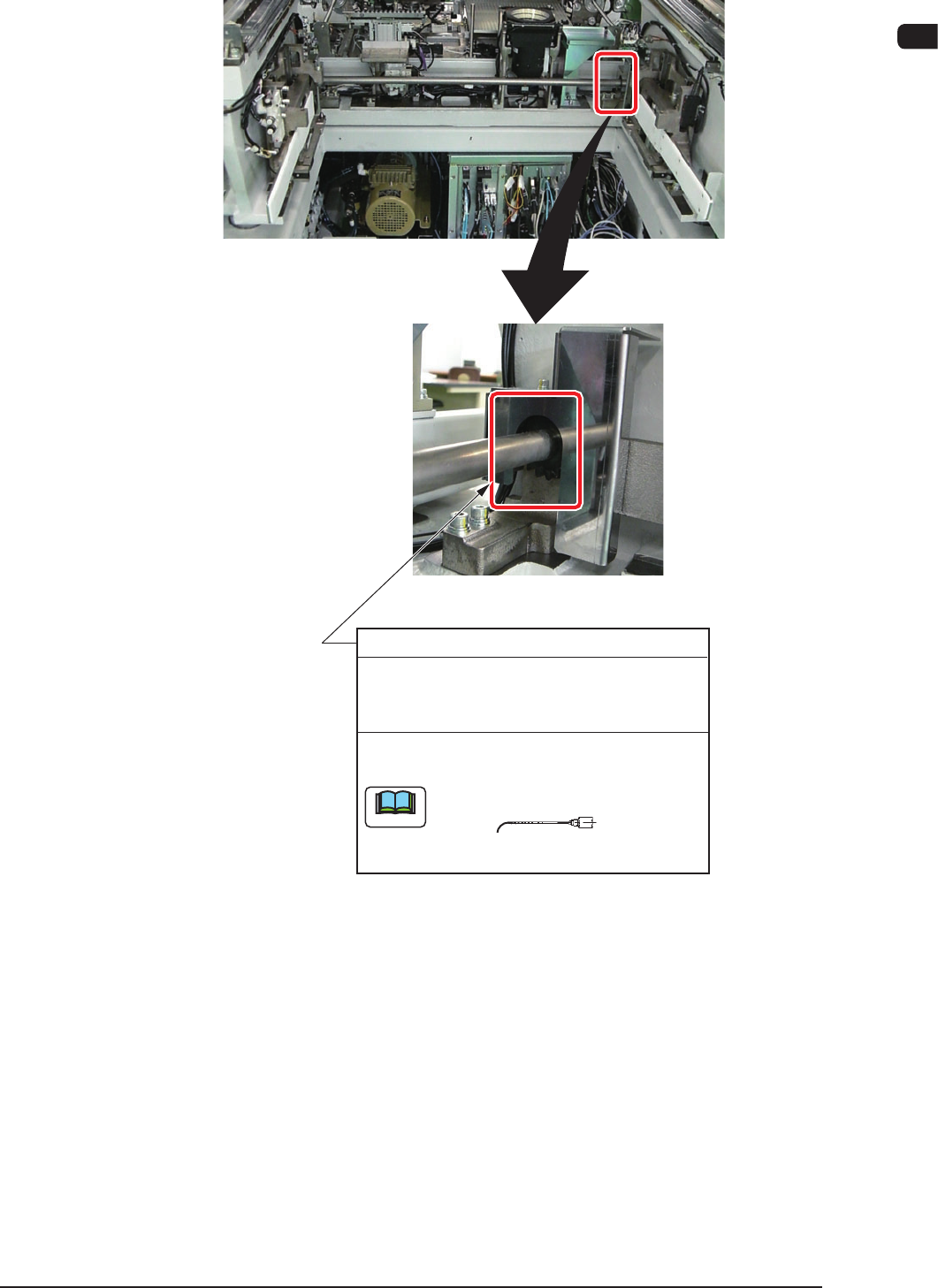

3.2.4 Feeder Base Driving Section
Worm Gears
(2 locations)
Every 3 Months Lubrication
(MOLYNOC GREASE AP1)
Required Time: 2 minutes
Use No. 19 (brown) nozzle.
Note
No. 19
Apply a small amount of new grease to the
worm gears with a syringe.
F4A16
4OM-1610
1-24
3. Maintenance Spots : Chap.1
0911-001
3.2.5 Feeder Cart Section
Groove on Feeder Base
Every Week Cleaning
Required Time: 2 minutes
Suck dirt and dust with a vacuum cleaner.
Upper Surface of Feeder Base
Every Day Cleaning
Required Time: 2 minutes
Remove foreign substances and unrequired
components with a vacuum cleaner and
wipe off dirt and dust with a rag.
F4A17
