4OM-1610
1-45
3. Maintenance Spots : Chap.1
1011-002

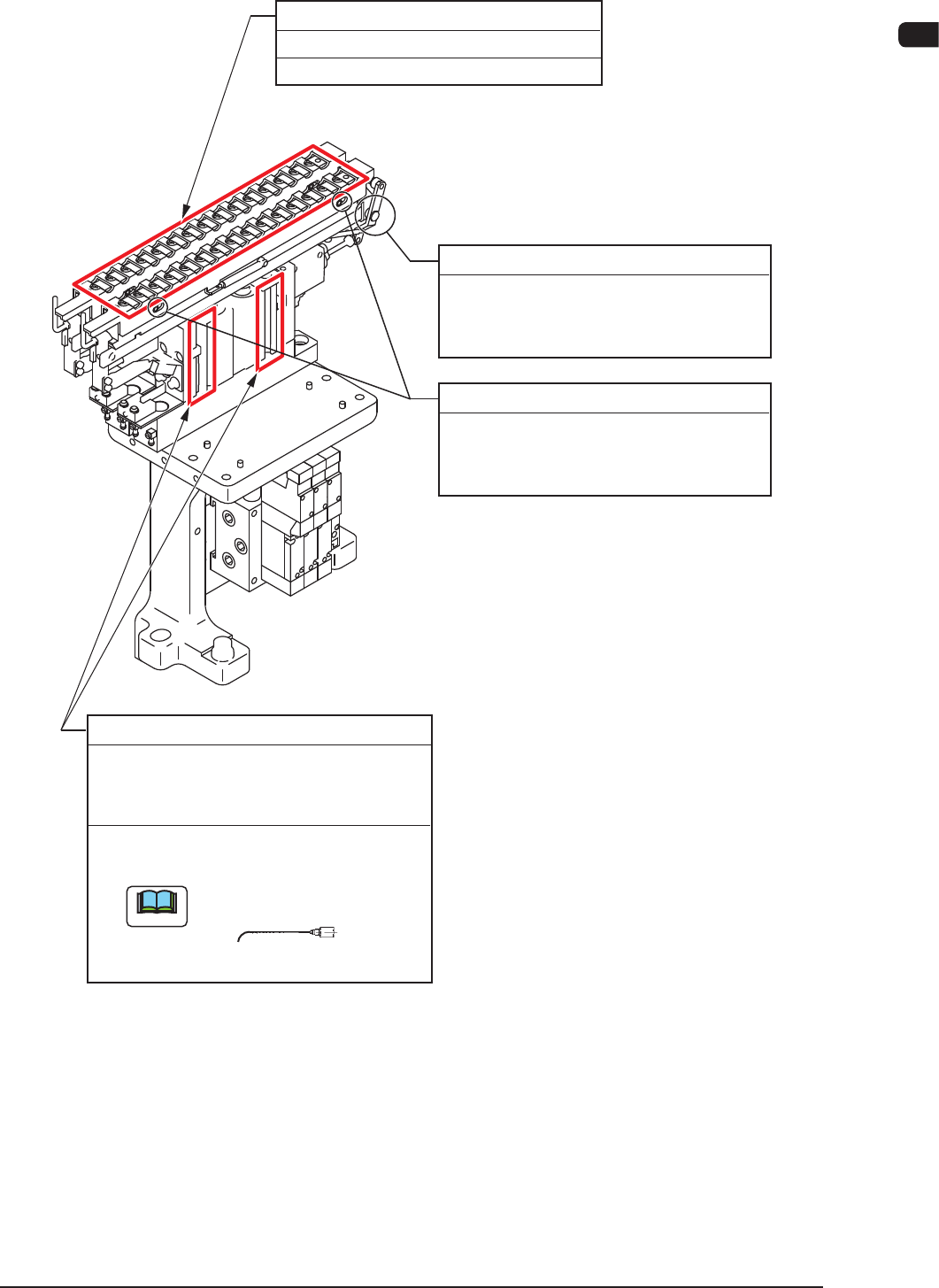

3.2.11 Nozzle Stocker Section
Nozzle Storage Section
Hinge Pin
Every Month Cleaning
Suck dirt and dust with a vacuum cleaner.
Every 3 Months Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Required Time: 5 minutes
Shutter Flange Pin Sliding Section
Every 3 Months Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Required Time: 5 minutes
Nozzle Stocker Sliding Area
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
Use No. 19 (brown) nozzle.
Note
No. 19
F4A36
4OM-1610
1-46
3. Maintenance Spots : Chap.1
1011-002

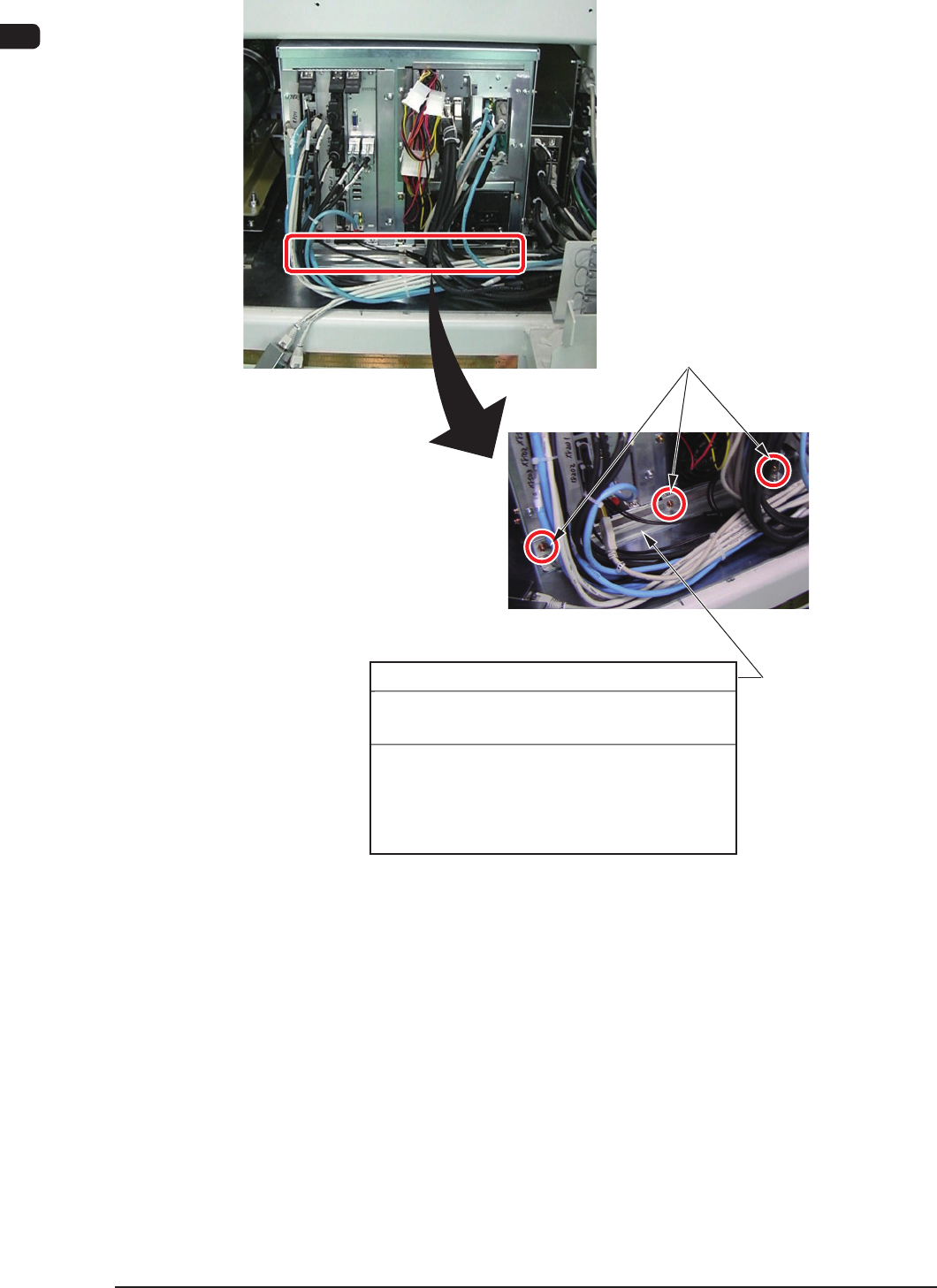

3.2.12 Control Box Section
Screws
Filter (1 location)
Every 3 Months Cleaning
Required Time: 4 minutes
(1) Remove the screws (3 locations) fixing the
dust filter and remove the dust filter.
(2) Suck dirt and dust with a vacuum cleaner.
(3) Attach the dust filter.
F4A37
4OM-1610
1-47
3. Maintenance Spots : Chap.1

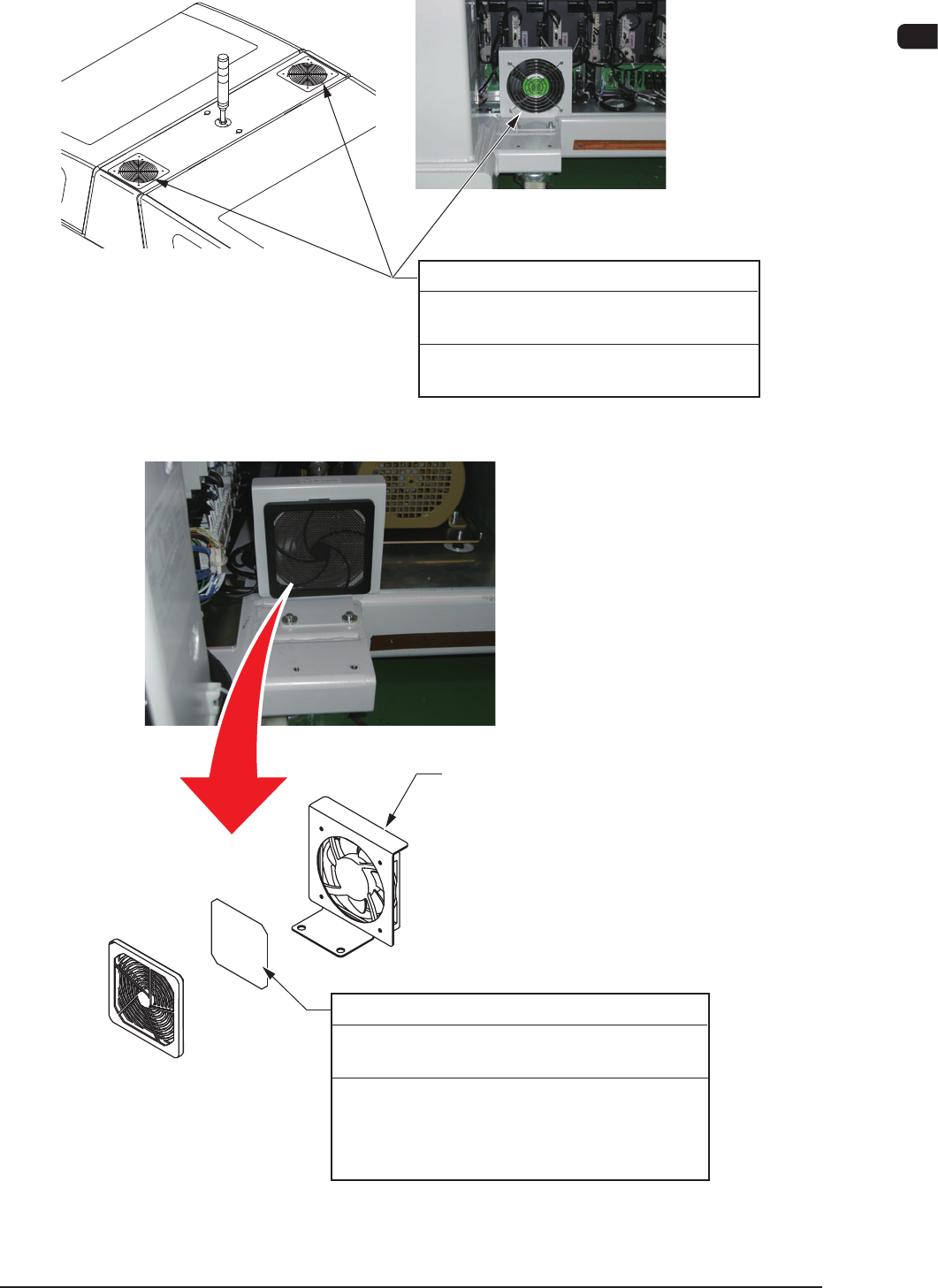

3.2.13 Fans
Every 3 Months Cleaning
Required Time: 10 minutes
Suck dirt and dust from the dust filters with
a vacuum cleaner.
Ventilating Fan (3 locations)
F4A38
Fan
Every 3 Months Cleaning
Required Time: 10 minutes
Air-Intake Fan (Filter)
Remove the screws (3 locations) fixing the fan
guard and remove the fan guard. Then, clean any
debris or dust in the filter using the vacuum
cleaner.
F4A39
