Page +$1:+$ 104 DECAN F2/S2 Single Conveyor (4/4)
Page
+$1:+$
103
DECAN
F2/S2
Page
+$1:+$
104
DECAN
F2/S2
Single Conveyor (4/4)
Page
+$1:+$
105
DECAN
F2/S2
Single Conveyor (4/4)

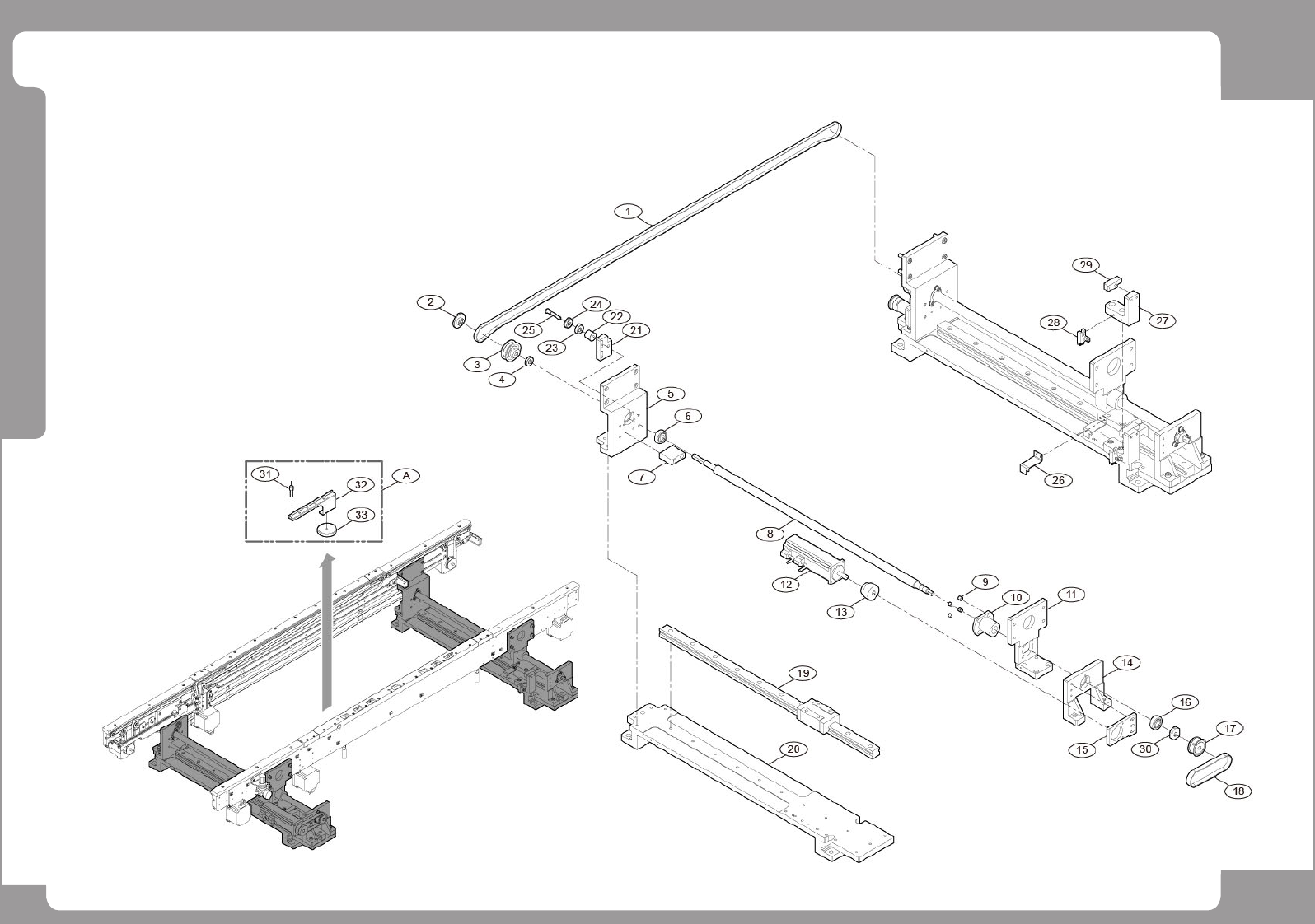

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 MC05-900044 WIDTH-BELT 1
2 J70531109A MANUAL_HANDLE 1
3 MC19-900014 PULLEY-WIDTH 1
4 J7153326A WIDTH-PULLEY-COLLAR 1
5 J71530404B FIX-STAND 1
6 MC03-900008 BALL_BEARING 1
7 J70530748B STOPPER-FRONT 1 J72531022A/ J72531022B
8 MC13-900225 LEAD-SCREW 1
9 J7053128A SPACER_NUT 4
10 MC13-900225 NUT 1
11 J7053677A MOVE STAND 1
12 EP08-900160 SERVO_MOTOR 1
13 MC19-900015 PULLEY 1
14 J7053726A SCREW STAND 1
15 J7053780A BRACKET-SERVO-MOTOR 1
16 MC03-900008 BALL_BEARING 1
17 J7153330A PULLEY SHAFT 1
18 MC05-900026 TIMING_BELT 1
19 MC13-900029 LM-GUIDE 1
20 J7053725A SUPPORT-WIDE ADJUST 1
21 J7053660A TENSION BKT 2
22 J7053661B WIDTH TENSION SPACER 2
23 MC03-900080 BALL BEARING 2
24 MC03-900121 BALL BEARING 2
25 J7053662A TENSION BEARING PIN 2
26 J7053216B DOG-SENSOR 1
27 J70530749B DOG ADJUST 1
28 EP19-900109 PHOTO SENSOR 1
29 J7053695B STOPPER 1
30 J7053194A BEARING NUT 2
A AM03-013063A ASSY,ETC,IMS-LONG_BACK_UP_PIN 4 Option of Single Conv. Extend
