Page +$1:+$ 11 5 DECAN F2/S2 Base Frame (Rear) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference A AM03-01 15 69A ASSY ,ELECTRIC-REAR ELEC P ANEL 1 A AM03-01 1 179A ASSY ,ELECTRIC-R ELEC P ANEL BKT 1…
Page
+$1:+$
114
DECAN
F2/S2

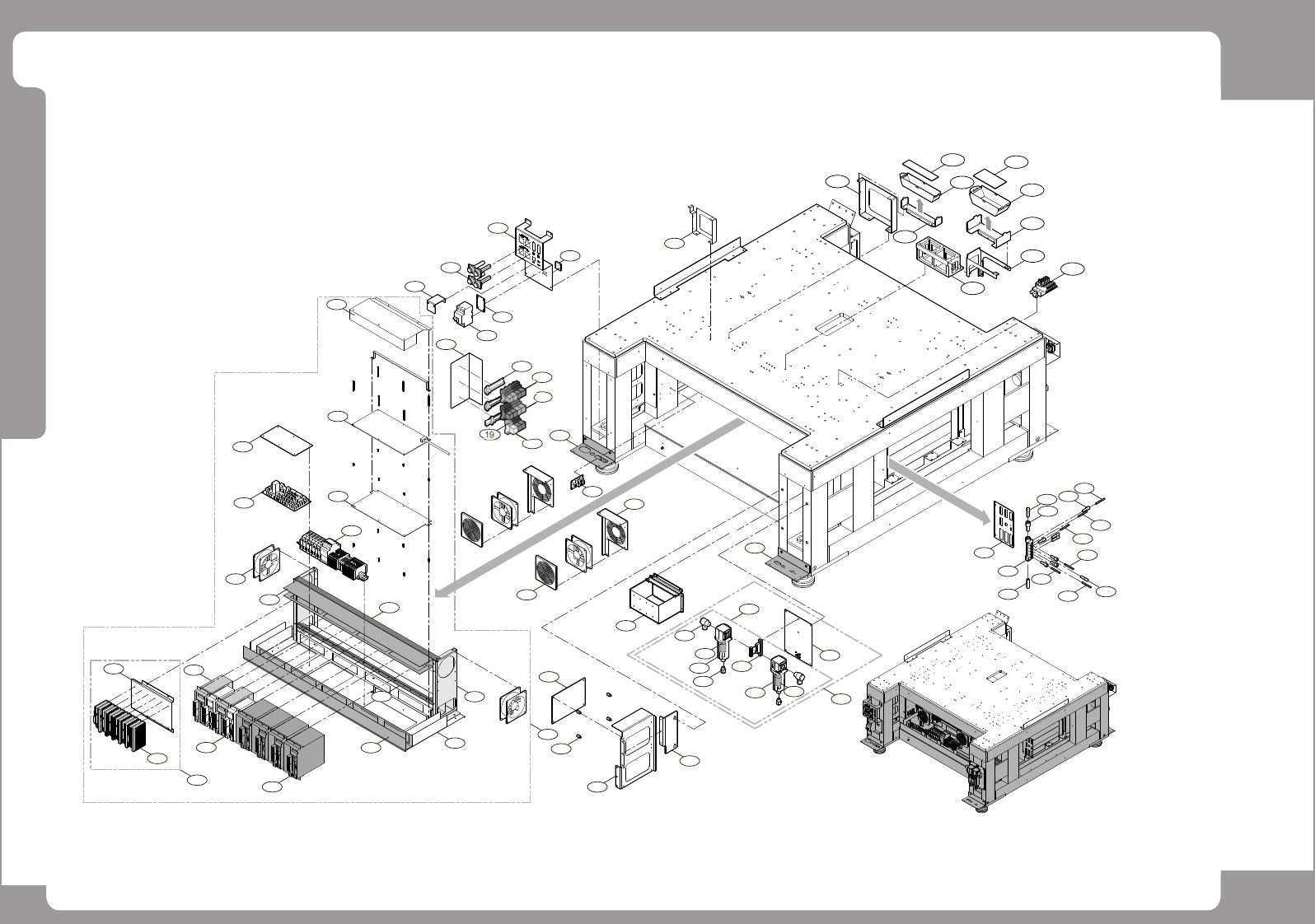

Base Frame (Rear)
3
42
12
11
10
50
40
41
17
48
20
1
31
32
33
56
21
15
43
44
49
46
9
B
29
30
54
55
56
23
24
25
26
27
22
13
6
35
47
7
8
5
36
51
52
4
34
56
55
56
28
16
45
18
A
A
B
39
68
14
2
C
19
62
63
57
59
60
61
64
65
66
58
67
27-1
24-1
Page
+$1:+$
115
DECAN
F2/S2
Base Frame (Rear)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-011569A ASSY,ELECTRIC-REAR ELEC PANEL 1
A AM03-011179A ASSY,ELECTRIC-R ELEC PANEL BKT 1
A AM03-011015A ASSY,CONTROLLER-CONVEYORSTEPDRVV1_0 1
1 FC09-001002 BRACKET-STEP DRIVER 1 FC09-000879A
2 EP06-000540 SERVO CONTROL-DRIVE 2 EP06-000390A
EP06-000540 SERVO CONTROL-DRIVE 4 EP06-000391A
3 EP06-000389 SERVO CONTROL-DRIVE 2 EP06-900170
FC09-000381A BRACKET-S/W DRIVER UPPER BKT 2
FC09-000382A BRACKET-S/W DRIVER BOTTOM BKT 2
4 EP06-000445 SERVO CONTROL-DRIVE 2 EP06-900172
FC09-000385A X-MOTOR DRIVER UPPER BKT 2
FC09-000386A X-MOTOR DRIVER BOTTOM BKT 2
5 EP06-000316 SERVO CONTROL DRIVER 4
FC09-000387A Y-MOTOR DRIVER UPPER BKT 4
FC09-000388A BRACKET-Y-MOTOR DRIVER BOTTOM BKT 4
6 EP07-901508 COOLING FAN 4
7 AM03-001814C ASSY,BOARD-SAFETY_FROP_REV_3.0 1
8 J7251007A BOARD_COVER 1
9 AM03-005825B TERMINAL_BLOCK 1
EP18-900018 MAGNETIC CONTACTOR 1
EP07-000576 BREAKER,CIRCUIT 2
EP07-000731 BREAKER,CIRCUIT 1
J7051105B DIN RAIL 1
EP10-900438 FUSE[250V 5A] 3
EP10-900439 FUSE[250V 10A] 2
EP21-000093 BLOCK,TERMINAL 5
EP21-000094 BLOCK,TERMINAL 10
EP21-000095 BLOCK,TERMINAL 10
EP21-000096 BLOCK,TERMINAL 2
EP21-000097 ACCESSORY,TERMINAL BLOCK-JUMPER BAR 2
EP21-000098 ACCESSORY,TERMINAL BLOCK-JUMPER BAR 6
Page
+$1:+$
116
DECAN
F2/S2
Base Frame (Rear)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
EP21-000099 ACCESSORY,TERMINAL BLOCK-END PLATE 1
EP21-000100 ACCESSORY,TERMINAL BLOCK-END PLATE 2
EP21-000101 ACCESSORY,TERMINAL BLOCK-END PLATE 1
EP21-000102 ACCESSORY,TERMINAL BLOCK-END PLATE 1
EP21-000103 ACCESSORY,TERMINAL BLOCK-END STOP 2
10 FC09-001717A BRACKET-AXIS BOARD TOP COVER 1
11 AM06-000943H ASSY,PCB-AXIS_IO_BOARD_D 1 AM06-000943B/ AM06-000943C
12 FC36-001273A SHEET-AXIO PROTECT COVER 1 FC09-001716A
13 EP07-901528 FAN_FILTER 2
HP04-000075 FILTER,AIR-FAN FILTER METAL 2
14 J91741023A CONVEYOR PWR BOARD 1
15 EP07-901528 INLET FAN BKT 2
16 EP07-900028 MAIN CIRCUIT BREAKER 1
17 AM03-003542A CABLE ASSY-INLINE IN-OUT 1
AM03-010846A CABLE ASSY-INLINE NEXT PRE 1
18 EP21-900008 PANEL 1
19 J37041002A RELAY_HOLD_DOWN_CLIPS 22
20 AM03-011179A REAR ELEC PANEL 1
21 FC30-002551A GROUND TERMINAL 1 J7152027A
22 AM03-011131A SERVO CONTROL-DRIVER-STEP DRIVER 1
23 HP06-900211 ELBOW FITTING 2
24 HP04-000178 AIR FILTER ASSY 1
24-1 HP04-000103A FILTER-ELEMENT 1
25 HP06-900187 FITTING 2
26 FC09-000054 T-BRACKET 1
27 HP04-000179 OIL FILTER ASSY 1
27-1 HP04-001045A FILTER-ELEMENT 1
28 FC09-003400A REAR AIR PANEL 1
29 FC09-003447A LEFT DC BKT 1
30 HP09-000007 MANIFOLD 1
31 FC14-900641 PLUG 1
