DECAN
F2/S2
Docking Cart (1/4)
Page
+$1:+$
27
DECAN
F2/S2
Docking Cart (1/4)

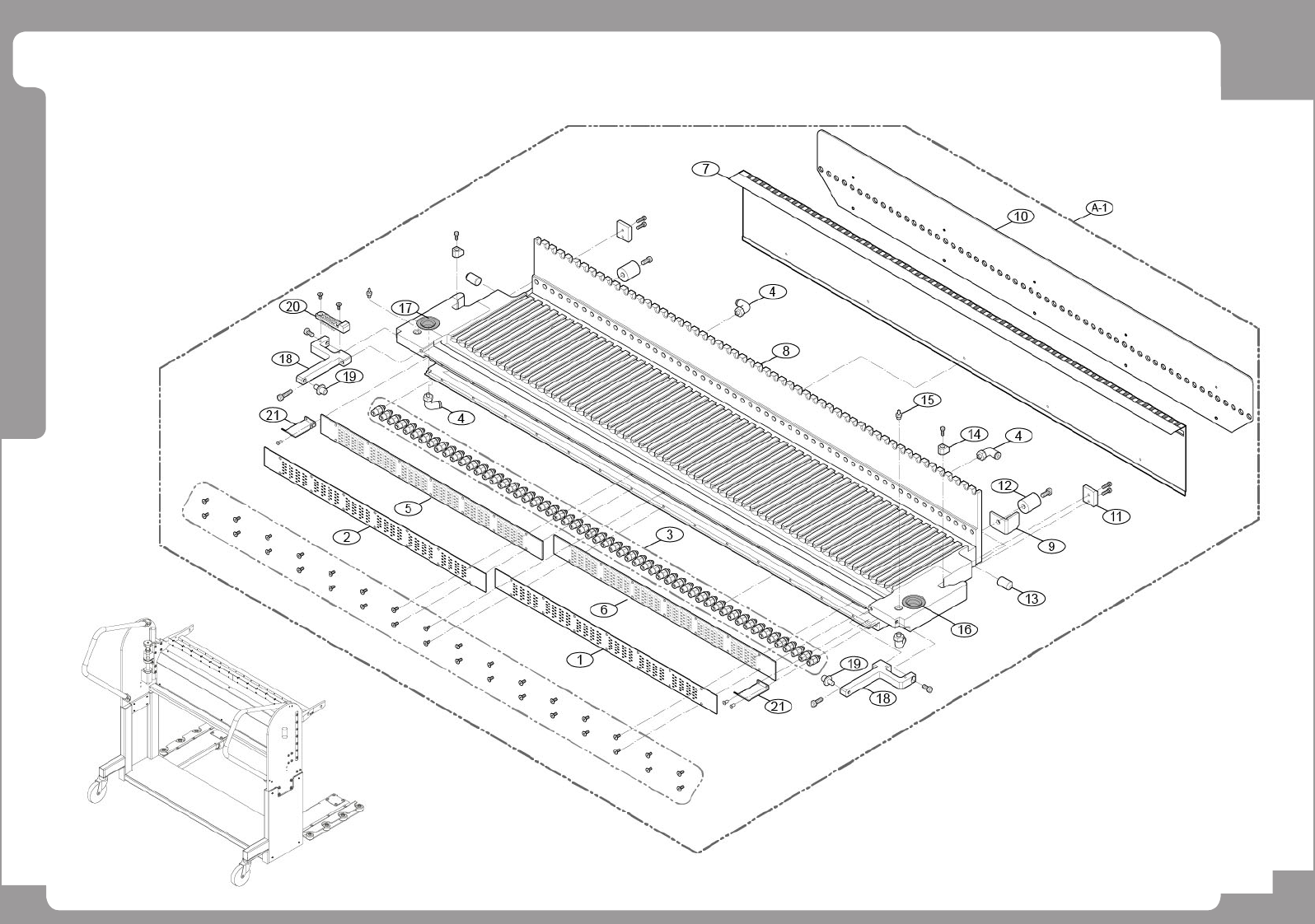

NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90571015A FEEDER_BASE_ASSY_FRONT-DC 1
1 J90600354B FEEDERBASE_RIGHT_COVER_PCB_ND 1
2 J90600353B FEEDERBASE_LEFT_COVER_PCB_ND 1
3 FC14-000876 COUPLER 56 HP06-900169
4 HP06-900027 FITTING 4
5 AM03-0006345A ASSY,BOARD-FBLN 1
6 AM03-0006346A ASSY,BOARD-FBRN 1
7 FC30-001081A TOP PLATE S DCN 1
8 J90571009A DC-FEEDER_BASE_MODULE 1
9 FC09-002060A BRACKET-SME_DC_BKT 2
10 FC30-001080A TOP PLATE B DCN 1
11 J7257009A CUSHION-Y 2
12 FC29-900535 URETHANS 2
13 HP15-900008 BALL PLUNGERS 2
14 J7257013A CUSHION-LOCATION PIN 2
15 HP06-900300 PLUG 2
16 J7057236A SLOT BUSH 1
17 MC06-900001 CIRCULAR BUSH 1
18 J7057237C ANTI-PITCH ARM 2
19 J7057238B ANTI-PITCH PIN 2
20 J7257014A PROBE HOLDER 1
21 J7057239B CABLE HOLDER 2
AM03-001731C CABLE ASSY-DOCKING CART IF CABLE ASSY 1 AM03-001731B
