DECAN_F2_S2_TRM(Ver7.4_CS20.12).pdf - 第186页
Page +$1:+$ 182 DECAN F2/S2 Air (1/6)
Page
+$1:+$
181
DECAN
F2/S2
Cover (2/2)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
60 EP05-000463 ADAPTOR,CONNECTOR-IDEC SWITCH CONNECTOR 6
61 J7452038A MOUSE PAD 1
62 CD04-001024 MOUSE 1
63 FC15-002156A COVER-LCD BASE 45 1 SPECIAL OPTION
64 FC15-002154A COVER-M SUB BKT 45 D 1 SPECIAL OPTION
65 AM03-013511A ASSY,COVER-SAFETY EXT-CV 1
66 FC29-900195 HINGE 3
67 FC15-002787A COVER-ACRYL DOOR EXT-CV 1
68 FC29-900169 HANDLE_BOLT 2
69 FC10-000068 CUSHION,RUBBER 4
70 FC15-002794A COVER-SIDE R EXT-CV 1
71 FC15-002796A COVER-MIDDLE EXT-CV 2
72 FC15-002786A COVER-TOP EXT-CV 1
73 FC15-002795A COVER-BOTTOM EXT-CV 1
74 TO04-001377A JIG-DOOR CLAMPING 2
75 FC15-002788A COVER-SIDE L EXT-CV 1
76 FC09-003569B BRACKET-COVER INNER BKT 2 FC09-003569A
Page
+$1:+$
182
DECAN
F2/S2

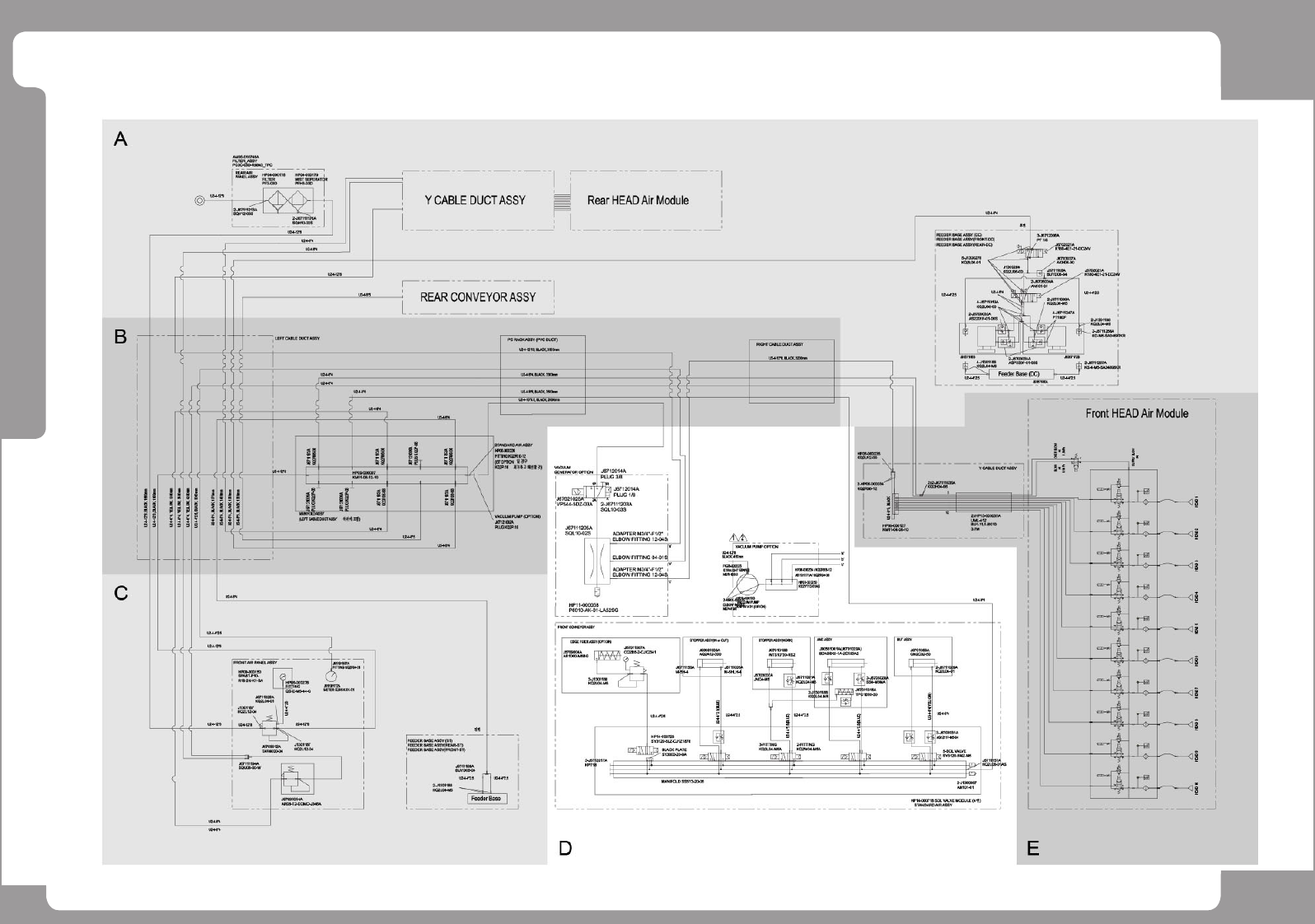

Air (1/6)
Page
+$1:+$
183
DECAN
F2/S2
