680SD BRUSHL ESS SERVO PUM P Inst alling the Cartri dge 26 680SD B rushless Servo Dri v en Pump Fi gu re 8
.
.
.
.
.
680SD BRUSHLESS SERVO PUMP
Installing the Cartridge
Operation and Maintenance Guide 25
Figure 7
Leadscrew
Cartridge Body
Needle
Needle Holder Nut
Feed Tube
2-56 SHCS
680SD BRUSHLESS SERVO PUMP
Installing the Cartridge

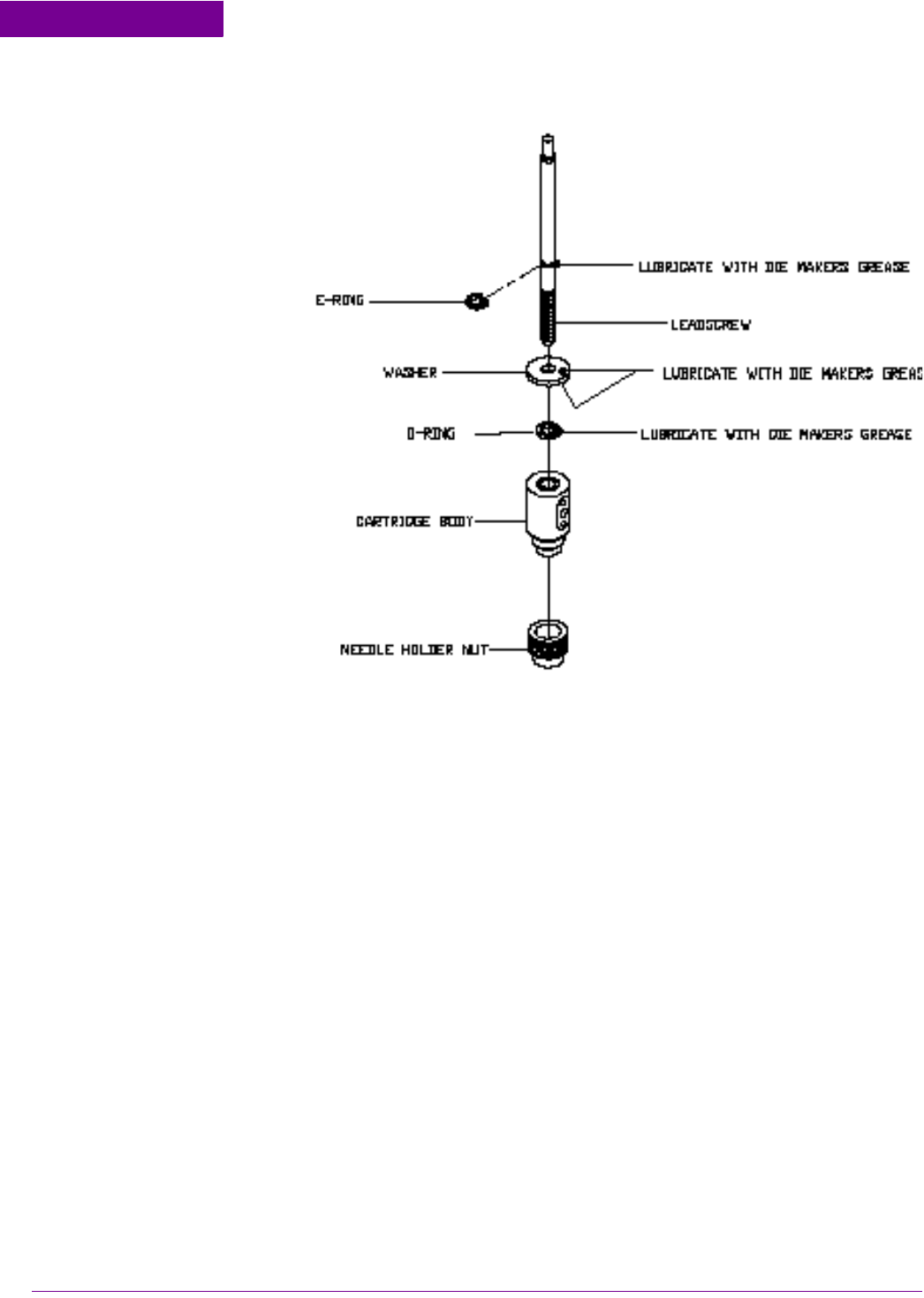

26 680SD Brushless Servo Driven Pump
Figure 8
.
.
.
.
.
680SD BRUSHLESS SERVO PUMP
Support Kit and Spare Parts
Operation and Maintenance Guide 27
Support Kit and Spare Parts
Description The pump support kit contains:
• Special tools which facilitate assembly and disassembly of the pump
• Spare parts that are required for preventive maintenance
• Recommended lubricants used during cleaning
• Cotton swabs and pipe cleaners used during cleaning
• Hose adapters
Speedline provides an “As-Built” document package which includes this manual, a set
of assembly drawings with spare parts lists, a complete list of support kit contents and
schematics where applicable. Please contact your Speedline Field Service
Representative if you are missing any of the above items.
Technical Support
Description Speedline Technologies provides a 24 hour customer support line that is available 365
days a year. Support technicians are available to assist you in setting up, using and
maintaining your pump. They can also help you troubleshoot any problems that may
occur.
You may also use the customer support to obtain replacement parts or arrange for
training on your Camalot equipment.
To contact customer support simply dial 1-800-737-8110 and follow the prompts.
