Note: Safety Guidelines V ersion 3.6 12 GL-541E Maintenance

6. The EMERGENCY STOP Button

In the event of an emergency, press the EMERGENCY STOP button located on the

machine at the position indicated in the figure below.

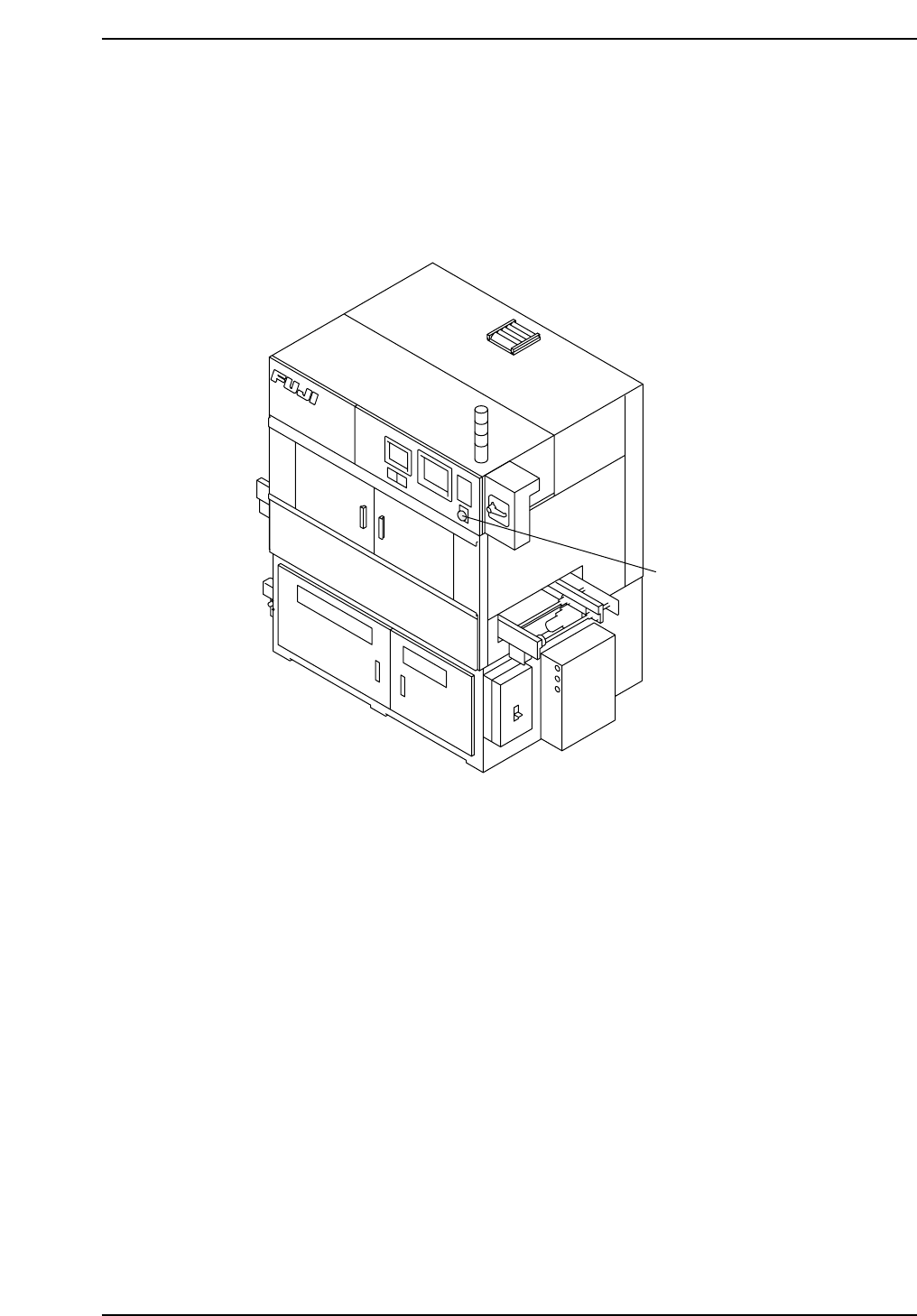

EMERGENCY STOP button on the front of the machine

7. Before Operation

Prior to operating the machine, make sure that no one is near the machine, or that

anyone other than yourself is touching the machine.

8. Do not Leave Tools in or on the Machine

Following maintenance on a machine, make sure that no tools have been left in or on the

machine. Tools that get caught in the machine's moving parts may cause severe damage

to the machine.

EMERGENCY STOP button

GL5MF002

Safety Guidelines

Version 3.6 11 GL-541E Maintenance

Note:

Safety Guidelines

Version 3.6 12 GL-541E Maintenance

1. Changing a Syringe

Purpose

Replace a syringe when the glue runs out, or when a different type of adhesive must be

used.

Procedure

Removal

1. Use the inching operation to inch the syringe head to the center of the machine

where it is easily accessible, then press the EMERGENCY STOP button and cut the

power to the machine.

2. Turn the cap nut clockwise as viewed from above and remove it.

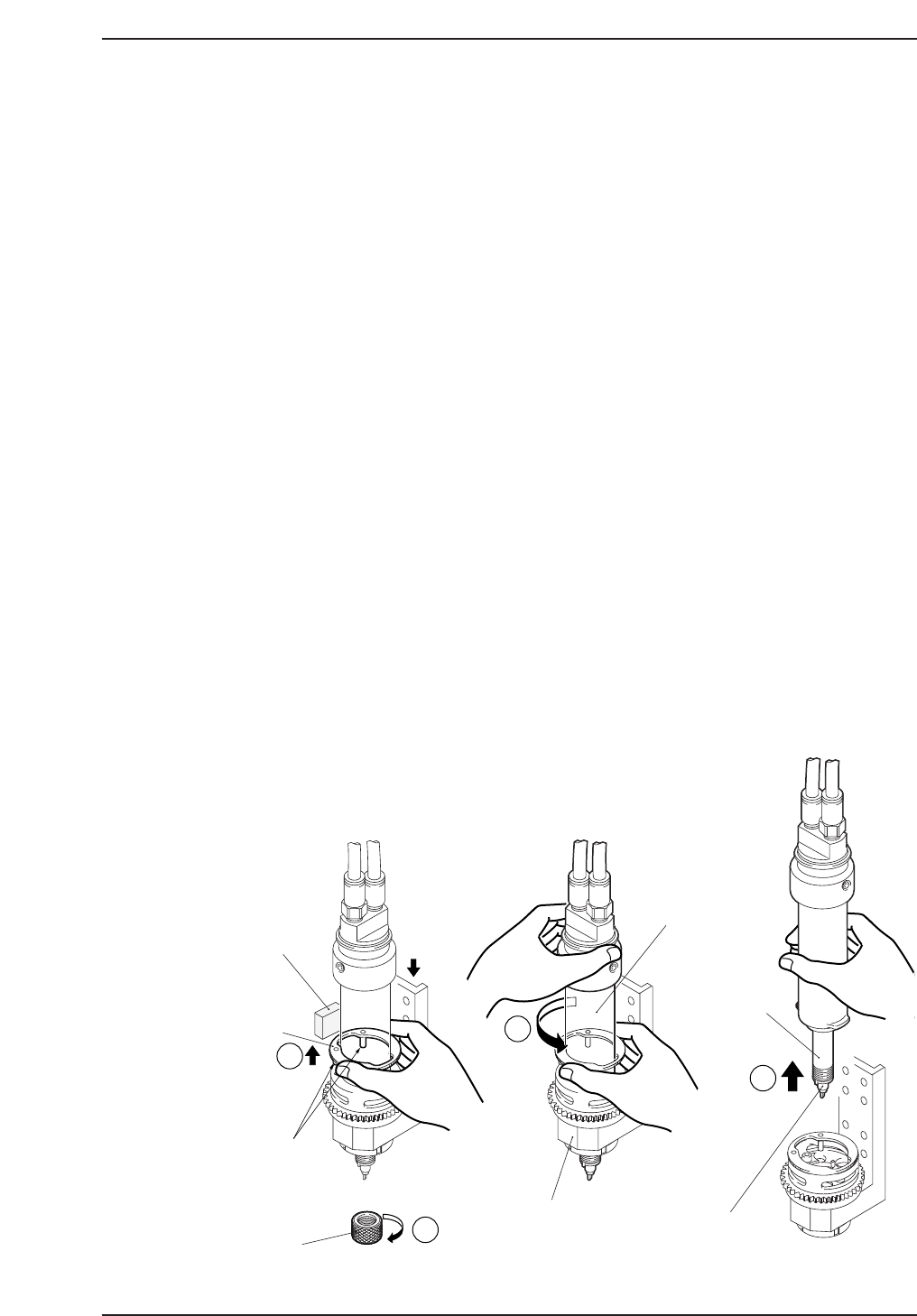

3. Remove the syringe assembly from the head as described below.

(1) While pressing the head down with one hand to keep the glue-level check

sensor out of the way, use the other hand to lift the syringe fixing ring

(black) several millimeters. (Lift until the ring's lock pins detach from the

syringe tab.)

Note: The syringe fixing ring is held onto the syringe holder by a magnet.

(2) Rotate the syringe assembly leftward 90 degrees, then pull the assembly

upward to remove it from the syringe holder.

Note: While lifting the syringe assembly, use one hand to push upward on the

needle side to prevent the adaptor from dropping off.

GL541-m76E

Glue-level

check sensor

Cap nut

Syringe

fixing ring

Lock pins

Needle

Syringe holder

Adaptor

Syringe assembly

Press

head down

Chapter 3 Changeover

Version 3.6 3-1-1 GL-541E Maintenance
