7. Lift the syringe fixing ring (black) several millimeters, rotate the syringe clockwise approximately 90 degrees, then return the syringe fixing ring to its original position to lock the tab. Note: The syringe fixing r…
2. Attach the adaptor to the syringe.
3. When necessary, use the centrifugal deairing device (optional) to inject glue into
the adaptor. (Refer to section 4. "Removing Air Bubbles in the Glue".)
4. Mount the needle on the adaptor.
Note: Mount the needle by aligning the adaptor's locating pin with the needle's notch.
5. Push the rotary joint cap all the way to the top end of the syringe, then rotate it
(approximately 90 degrees) until a clicking sound is heard (this locks the cap).
6. Align the adaptor's notch with the syringe holder's pin position, then insert the
syringe assembly into the holder.
Adaptor
Syringe holder
Syringe
Rotary joint
Pin
Notch
GL541-m82E
Notch
Locating pin
GL541-m81E
Adaptor
Needle
Chapter 3 Changeover
Version 3.6 3-1-3 GL-541E Maintenance
7. Lift the syringe fixing ring (black) several millimeters, rotate the syringe clockwise
approximately 90 degrees, then return the syringe fixing ring to its original
position to lock the tab.
Note: The syringe fixing ring is held on the head by a magnet.
Note: A syringe or adapter taken from the refrigerator must be allowed to reach room
temperature before use in order to prevent condensation, which can cause the
adapter to rust.
Rust prevents
removal.
GL541-m31Ea
GL541-m83E
Syringe fixing ring
Lock pin
Chapter 3 Changeover
Version 3.6 3-1-4 GL-541E Maintenance
8. Install the cap nut.
Notes:
If a head is not used during production, be sure to install an empty syringe (with
adapter attached) and the rotary joint to form an airtight seal. This will prevent air
from escaping and help to maintain the glue temperature.
After installing the needle and before operation, eject approximately 0.2 cc of glue through
the needle to drive out air trapped in the joint.
The syringes are disposable. Fuji recommends using the syringes twice. Further use will
wear down the ridges which are used to lock the syringe into place and the syringe may fall
from the holder.

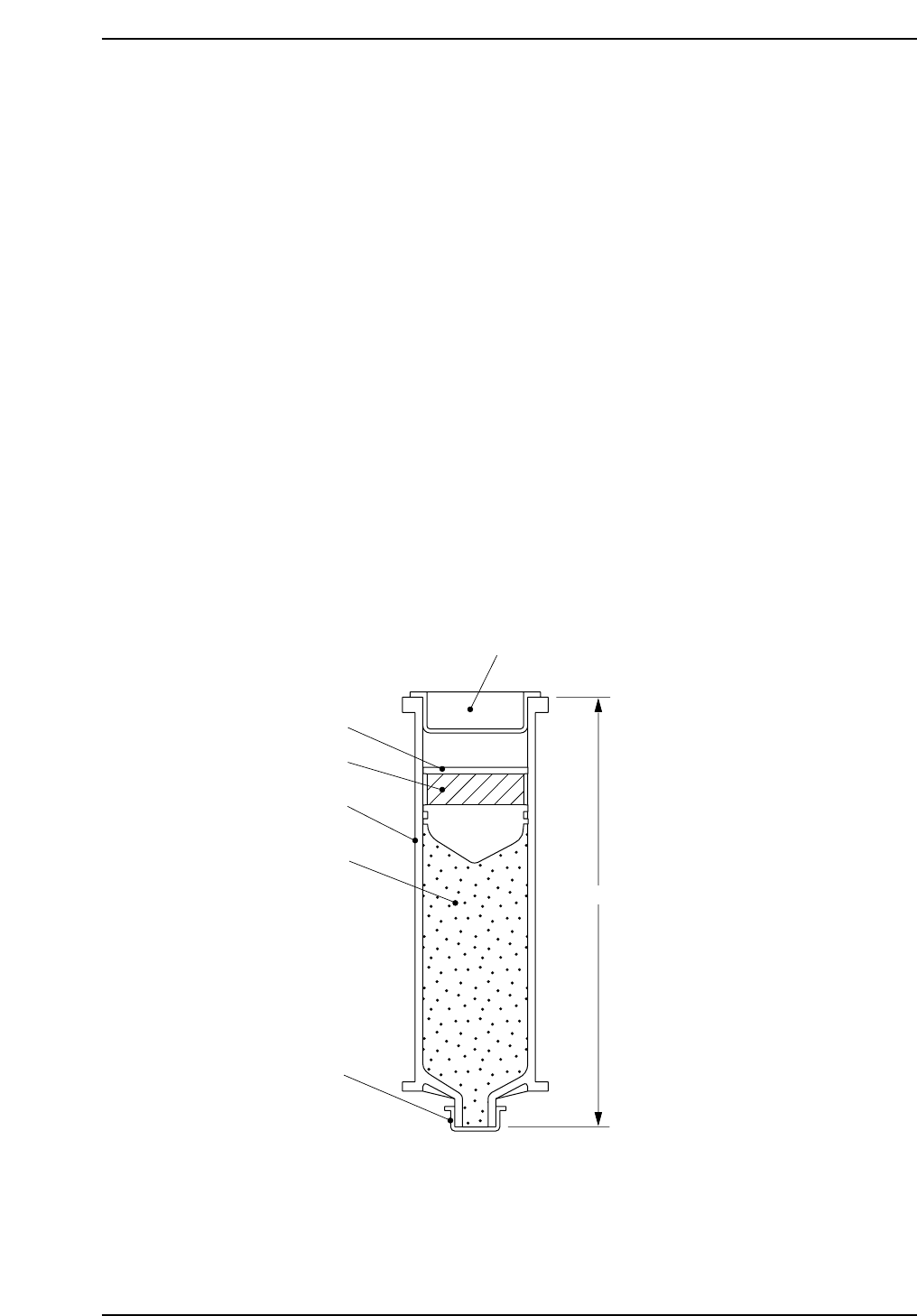

<Reference>
Capacity: 30 cc/syringe
Material: Resin (plastic)
Glue volume: Approx. 30 cc.
The syringes are disposable.
The glue must be free of air.
102
1
4
3
2
GL541-m25E
5
(mm)
6
1. Cap (BTRG0870)
2. Cap (BTRG0880)
3. Adhesive (about 30 cc)
4. Syringe (BTRG0750)
5. Float (BTRG0910)
6. Sensor seal (BTRG0900)
Chapter 3 Changeover
Version 3.6 3-1-5 GL-541E Maintenance
