19 Cause of error Effect / Display Error recovery The food-switch is clear in the moment of synchronization LED not ready Display step Display distance Display cut length blink Switch of the device and switch it on aga…
18
4 Test and Change Device Parts
It will measured with a Oscilloscope in a measurement range of 1 or 5 Volt per scale devision.
cut length
a
b
76
1
2
3a
3b
4a
4b
5
Fig.20 Measurement by Oscilloscope
Pulse sensor Carriage sensor right Carriage sensor left Edge sensor right Edge sensor left
1
----------------------- ----------------------- ----------------------- End Position right -----------------------
2
----------------------- ----------------------- ----------------------- ----------------------- End Position Left
3a
----------------------- Cut stopper (6) ----------------------- ----------------------- -----------------------
2a
----------------------- ----------------------- Cut stopper (6) ----------------------- -----------------------
3b
----------------------- Cut stopper (7) ----------------------- ----------------------- -----------------------
4b
----------------------- ----------------------- Cut stopper 7) ----------------------- -----------------------
5
Start position to the
end of cut
----------------------- ----------------------- ----------------------- -----------------------
Table 4 Sensor peak 1. cut
19
Cause of error Effect / Display Error recovery
The food-switch is clear in the
moment of synchronization
LED not ready
Display step
Display distance
Display cut length
blink
Switch of the device and switch it on
again.
New synchronization
The device is switched on and the
carriage with the upper blade will
moved by hand out of the start position
The carriage with the upper blade
is blocked in operation.
LED not ready blink Press button home
Press the foot-switch and hold it
a Device will run into the start position
Clear the foot-switch
A new activation of the food-switch will
continue the program with a replay of the
last cut.
The food-switch will be clear if the
program is running.
Material is not separated after
program end
Switch of the device and make a new
synchronization .
Chang programing
- More cuts
- Reduce the distance between upper
and lower blade in smaller steps
Pulse sensor fault or wrong adjust Carriage moved short in one
direction and stopt with a jerk.
LED not ready blink
Sensor adjust or replace
Side sensor right/left fault or wrong
adjust
Carriage moved with full speed
on the side and stopt on the
mechanical end. It moved back
a short part and stoppt.
The same procedur like
"carriage or Blade are blocked".
LED not ready blink
Sensor adjust or replace
Carriage sensor right/left fault or
wrong adjust
In spite of other settings
moved the carriage over the
full distance of the possible cut
length.
The operation doesn't stop
and it will not shown an error
message.
Sensor adjust or replace
Table 5 Errors in operation and handling
5 Errors
20

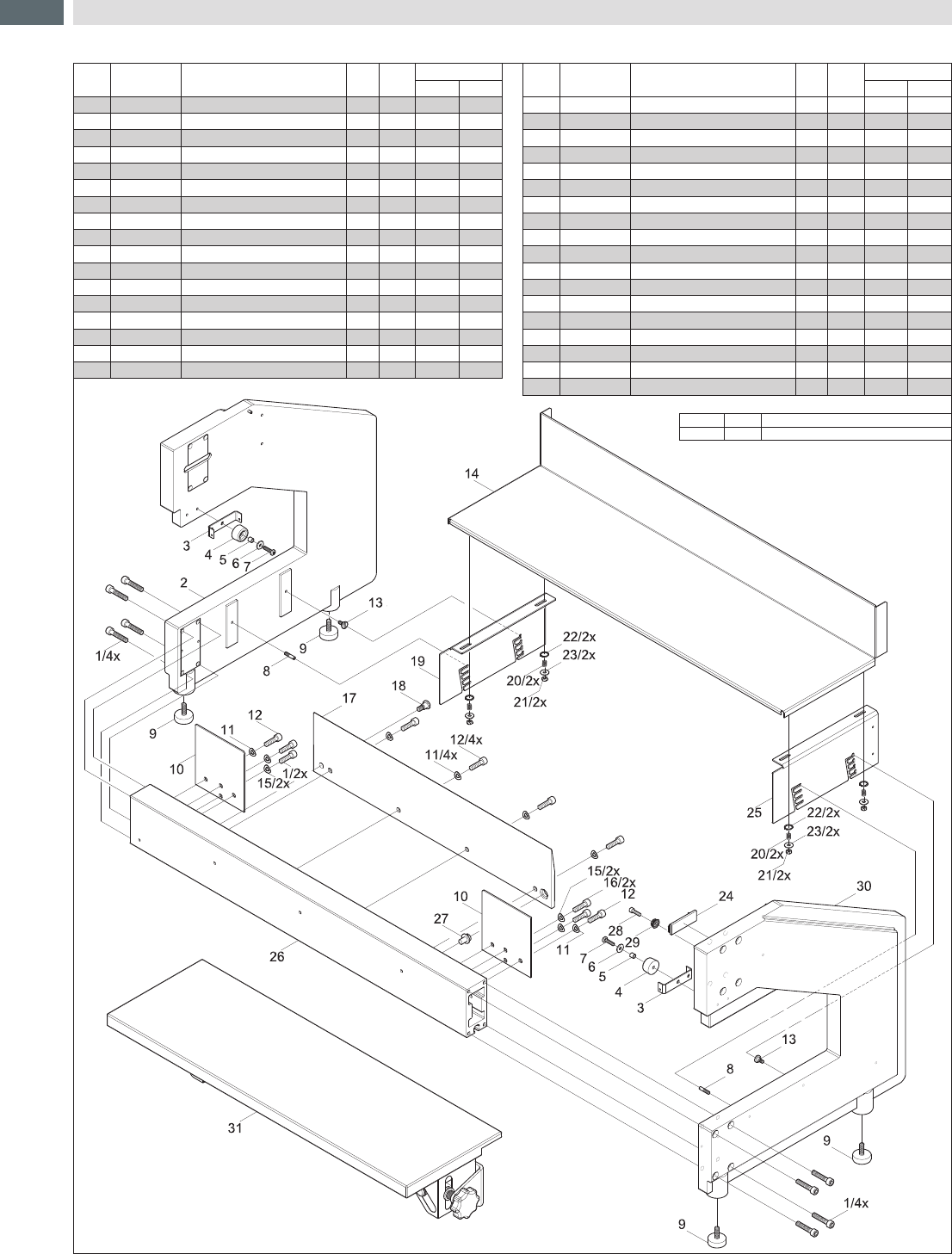

6 Spare Parts Drawings
6.1 Side Parts C Prole, Linear Blade
No Part No. Description PU Note Serial No.
from to
1 5902082.001 Screw DIN912-M6x30 10
2 8936866.001 CProle 1
3 8930823.001 Bracket 1
4 5905141.001 Foot 5
5 8930946.001 Bushing 1
6 5903520.001 Washer DIN7349-4.3 10
7 5902052.001 Screw DIN7985 M4x16 10
8 8930818.001 Set Screw 10
9 5905372.001 Buffer 1
10 8930949.001 Blade Shield 1
11 5903010.001 Spring Washer DIN137-A6 10
12 5902169.001 Screw DIN912-M6x14 10
13 8930646.001 Knurled Screw 1
14.1 8930884.001 Table 1
a
14.2 8931182.001 Table 1
b
15 5903012.001 Spring Washer DIN137-A5 10
16 5902159.001 Screw DIN912-M5x12 10
No Part No. Description PU Note Serial No.
from to
17.1 8933394.001 Linear Blade 1
a
17.2 8933682.001 Linear Blade 1
b
18 5902122.001 Screw DIN923-M6x6 10
19 8930886.001 Comb 1
20 5905079.001 Spring 1
21 5902501.001 Nut DIN934-M4 10
22 5903527.001 Snap Ring DIN471-10x1 10
23 5903005.001 Washer DIN9021-4.3 10
24 5901561.001 Cable Clamp 10
25 8930885.001 Comb 1
26.1 8930959.001 Beam 1
a
26.2 8931185.001 Beam 1
b
27 8930605.001 Eccentric Axle 1
28 5902241.001 Screw DIN7984-M4x10 10
29 5905116.001 Ground Button 1
30 8936864.001 CProle 1
31.1 8931120.001 Adjustable Patform 1
a
31.2 8931186.001 Adjustable Platform 1
b
Note a 450
b 600
