24 No Part No. Description PU Note Serial No. from to 28 5902241.001 Screw DIN7984-M4x10 10 45 5902245.001 Screw DIN933-M3x10 10 46 5903004.001 W asher DIN125-A3.2 10 57.1 8936846.001 Energy T rack 1 a 57.2 8936847.001 E…
22
No Part No. Description PU Note Serial No.
from to
22 5903527.001 Snap Ring DIN471-10x1 10
23 5903005.001 Washer DIN9021-4.3 10
42 5902483.001 Screw DIN6912-M4x10 10
46 5903004.001 Washer DIN125-A3.2 10
58.1 8936822.001 Cover 1
a
58.2 8936862.001 Cover 1
b
59 5902026.001 Screw DIN7985-M3x6 10
60 8930981.001 Cable Grounding 1
61 8936871.001 Bolt 1
62 8936870.001 Control Panel 1
63 8930868.001 Tightener 1
64 8930854.001 Tensioning Wheel 1
65.1 8930961.001 Belt 1
a
65.2 8931181.001 Belt 2
b
66 8936804.001 Cable 1
67 5902304.001 Screw DIN7991-M4x6 10
68 8936834.001 Knurled Screw 1
69.1 8936821.001 Cover 1
a
69.2 8936867.001 Cover 1
b
70 5917167.001 Emergency Switch Push Button 1
71 8936837.001 Stopper 1
72 8936891.001 Washer 1
130 5917168.001 Switch Unit 1
131 8936805.001 Emergency Switch 1
Note a 450
b 600
6 Spare Parts Drawings
6.3 Upper Beam, Control Panel
23
No Part No. Description PU Note Serial No.
from to
28 5902241.001 Screw DIN7984-M4x10 10
54 8936896.001 Bushing 1
57.1 8936846.001 Energy Track 1
a
57.2 8936847.001 Energy Track 1
b
60 8930981.001 Cable Grounding 1
73 5902358.001 Screw DIN7984-M4x6 10
74 5551126.001 Power Supply 1
75 5902510.001 Nut DIN934-M4 10
76 5903033.001 Washer DIN125-A4.3 10
77 5903011.001 Toothed Washer DIN6797-A4.3 10
78 5534176.001 Cable Grounding 1
79 5902047.001 Screw DIN7991-M3x5 10
80 8936850.001 Bracket Power Supply 1
82 8936844.001 Ground Cable 1
83 5903028.001 Washer DIN433-6.4 10
84 5902178.001 Screw DIN912-M6x20 10
85 5902525.001 Nut DIN557-M6 10
86.1 5905183.001 Guide L=640 1
a
86.2 5905347.001 Guide L=780 1
b
131 8936805.001 Emergency Switch 1
Note a 450
b 600
6 Spare Parts Drawings
6.4 Power Supply
24
No Part No. Description PU Note Serial No.
from to
28 5902241.001 Screw DIN7984-M4x10 10
45 5902245.001 Screw DIN933-M3x10 10
46 5903004.001 Washer DIN125-A3.2 10
57.1 8936846.001 Energy Track 1
a
57.2 8936847.001 Energy Track 1
b
79 5902047.001 Screw DIN7991-M3x5 10
87 5902144.001 Screw DIN7984-M3x5 10
88 8936869.001 Cover 1
89 5902521.001 Nut DIN439-M3 10
90 5902056.001 Screw DIN965-M3x8 10
91 8930852.001 Bracket 1
92 8936809.001 Sensor 1
93 8930901.001 Plate 1
94 8930810.001 Fixing 1
95 8936824.001 Bracket 1
96 8936946.001 Carriage 1
97 5902010.001 Screw DIN912-M3x10 10
98 8936808.001 Sensor 1
99 8936890.001 Holder 1
100 5900516.001 Spacer Bushing PA M3x5 10
101 8936817.001 PCB Splitter 1
102 5900073.001 Distance Bolt M3x14 10
103 5904527.001 Set Screw DIN913 M4x30 10
104.1
5902030.001
Screw DIN7991-M3x12 10
4504
104.2
5902010.001
Screw DIN912-M3x10 10
4505
No Part No. Description PU Note Serial No.
from to
105.1
8931628.001
Set Knob 1
4504
105.2
8936943.001
Set Knob 1
4505
106.1
8931627.001
Guide Washer 1
4504
106.2
8936945.001
Guide Washer 1
4505
107.1
8931630.001
Plate 1
4504
107.2
8936944.001
Plate 1
4505
108 8936841.001 Bushing 1
110 8936615.001 Shield 1
111 8936643.001 Eccentric Axle 1
112 8936614.001 Shield 1
113 8930590.001 Screw 1
114 8936833.001 Guiding 1
116 5903026.001 Washer DIN988-15x21x0.1 10
117.1 8930509.001 Circular Blade 1
118 8936886.001 Knurled Nut 1
119 8936843.001 Motor Bracket 1
120 5902137.001 Screw DIN912-M6x12 10
121 5900061.001 Distance Bolt M4x25 10
122 8936888.001 Distance Bolt 1
123 8936778.001 Slipping Clutch 1
124 8936914.001 Motor 1
125 8936807.001 Cable 1
132
8936953.001
Set Knob cpl. 1
Note a 450
b 600
6 Spare Parts Drawings

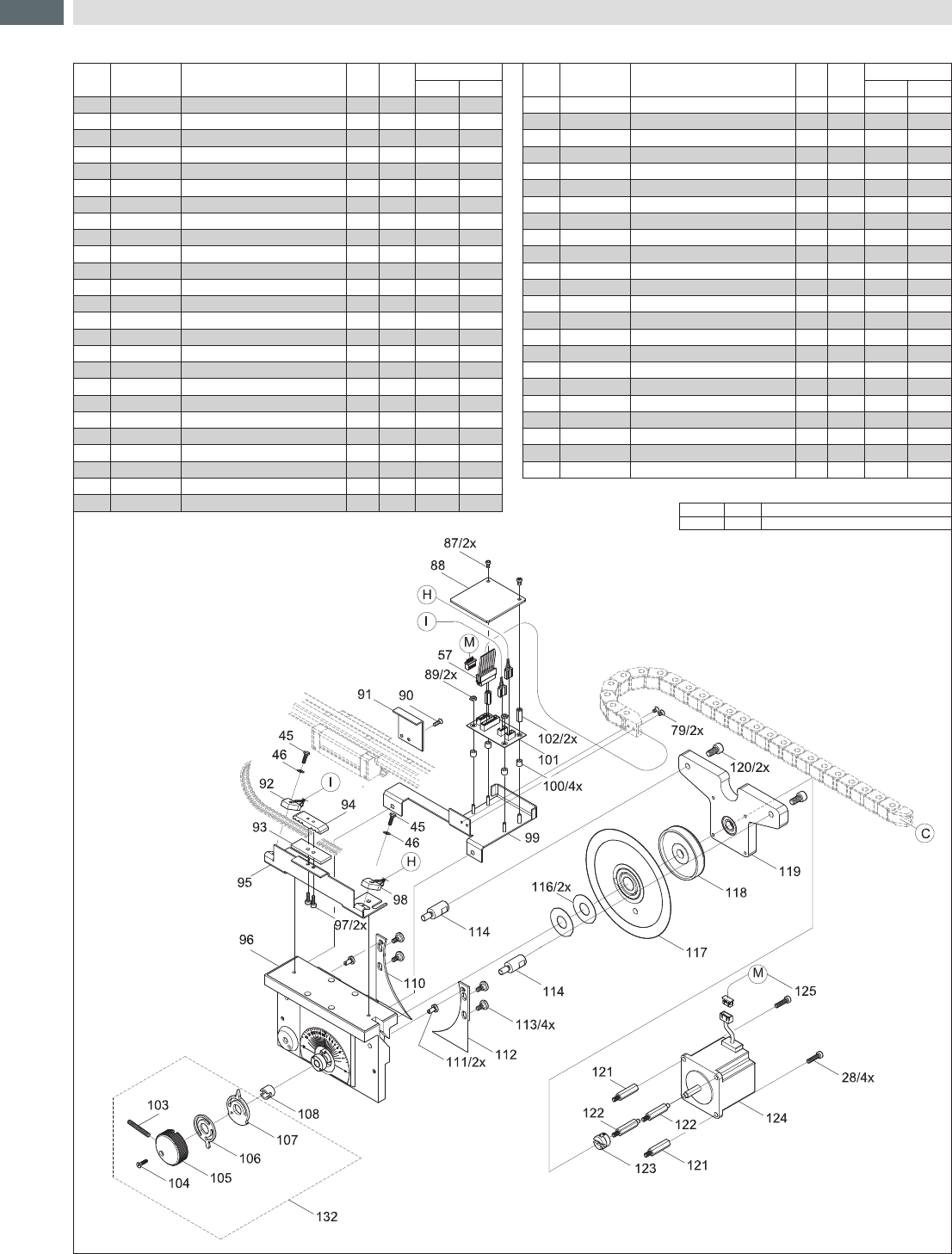

6.5 Carriage With Roller Blade
