6 2 T echnical Data T echnical data 4S/450 4S/600 Separation type Component side: Soldering side: circular blade linear blade Operation motorized and optimized Separation speedt 300/500 mm/sec. switchable Material FR4, A…

• Only connect the device to other devices which have a protective low voltage.

• Switch off all affected devices (e.g. conveyor belt) before connecting or unlinking.

• Risk of hand injury. Wear protective gloves while PCB separating.

• Ensure that people‘s clothing, hair, jewelry etc. do not come into contact with the exposed rotating blade.

• In an emergency situation, actuate the emergency stop switch in the control panel by tight pressing. This inter-

rupts the voltage supply to the device.

• The device may only be used in a dry environment, do not expose it to moisture (sprays of water, mists, etc.).

• Do not use the device in an explosive atmosphere.

• Do not use the device close to high-voltage power lines.

• Work going beyond this may only be performed by trained personnel or service technicians.

• Unauthorized interference with electronic modules or their software can cause malfunctions.

• Otherunauthorizedworkonormodicationstothedevicecanalsoendangeroperationalsafety.

• There are various warning stickers on the device. They draw your attention to dangers.

Warning stickers must therefore not be removed, as then you and other people cannot be aware of dangers and

may be injured.

Danger!

Danger to life and limb from power supply.

 Do not open the device casing.

1 Introduction

2 Technical Data

Technical data 4S/450 4S/600

Separation type Component side:

Soldering side:

circular blade

linear blade

Operation motorized and optimized

Separation speedt 300/500 mm/sec. switchable

Material FR4, Aluminium

Height of components Component side/Soldering side up to 34 mm

Cutting length , continuous F up to 450 mm up to 600 mm

Length D 702 mm 852 mm

Depth storage table 200 mm

Programming

Home Request drive to starting position, Acknowledge

Speed H (High): 500 mm/Sek.

L (Low): 300 mm/Sek.

Program 9

Step (cutting steps) 1 – 5

Distance (between blades) 0,9 mm bis 0,05 mm

Key switch button Release of programming

Mileage (Kilometer counter) up to 99 km

DEL Reset of the kilometer counter

Power switch ON/OFF

Foot switch START Separation

Safety switch Emergency stop

Spannung 100–240 V~ 50/60 Hz

Emission sound pressure level LpA < 70 dB (A)

Temperature / humidity not

condensing

Operation +10–35°C / 10–85%

Stock 0–60°C / 20–80%

Transport -25–60°C / 20–80%

Weight 38 kg 46 kg

Height/Depth 434x425 mm

Width 702 mm 852 mm

Approvals CE, FCC class A

Dimension Maximum Height of components on the cut nut

27 21,5

3434

400...40

10˚

Enlargement of the PCB outside after separation. typical 0,2 mm

30˚

FR 4

0,8-3,2

min. 0,25

max. 0,8

30˚

Alu

0,8-1,5

min. 0,25

max. 0,3

The cut nut could be broken by a cutout.

In case of overlaying components, the linear blad

must be hollowed.

If required request.

Table 1 Technical data

3 Overview

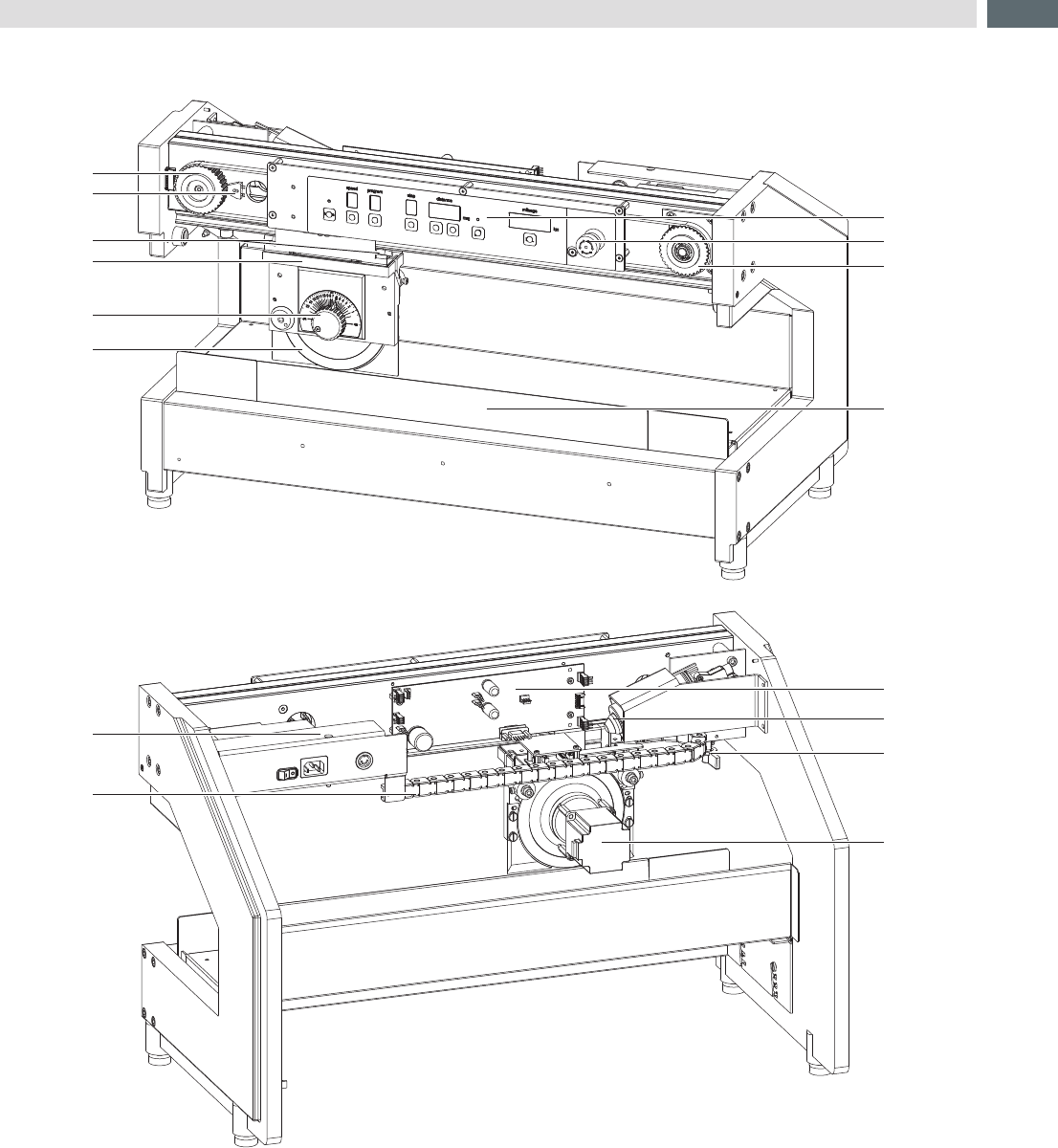

3.1 Views without covers and cable

1 Belt Gear Main Motor 9 Control Panel

2 Pulse Sensor 10 Emergency Switch

3 Carriage Sensor right / Links 11 tension Wheel

4 Carriage 12 Linear Blade

5 Set knob for cutting depth 13 PCB Control

6 Upper Circular Blade 14 Main Motor

7 Power Supply 15 Clutch Main Motor

8 Energy Track 16 Motor Circular Blade

Fig.1 Frontview

Fig.2 Rearview
