Service Manua l WPC5 / WPC6 Page 3- 72 3.7.1.3.2 WPC6 Serien-Nr . < 3xxx: WPC6 – Elektrics_1; Seri en- Nr.: < 3xxx
Service Manual WPC5 / WPC6
Page 3-71

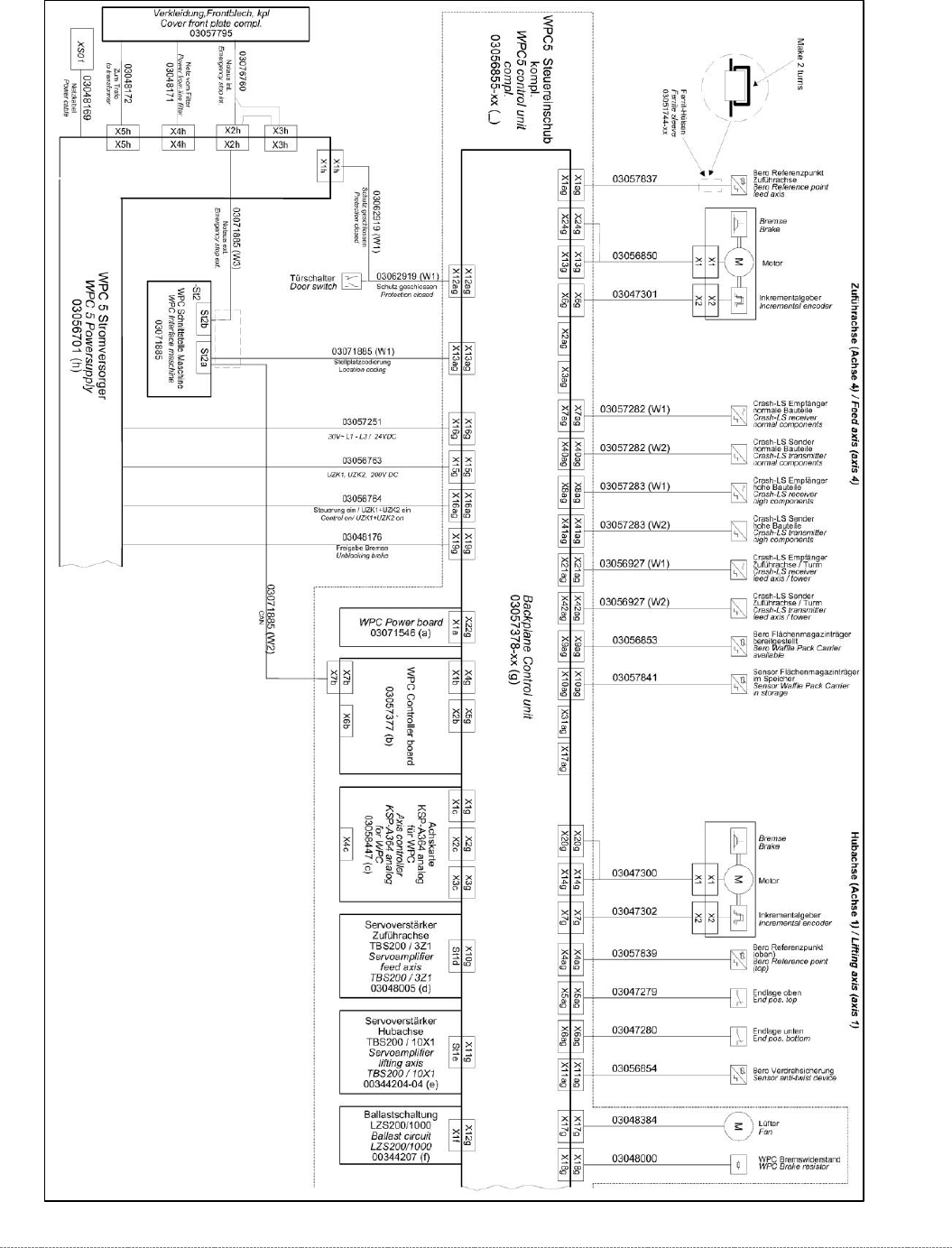

3.7.1.3 Detailed Connections for Limit Switches, Sensors and Light Barriers
3.7.1.3.1 WPC5 Serien-Nr. < 3xxx:
WPC5- Elektrics; Serien-Nr.: < 3xxx
Service Manual WPC5 / WPC6
Page 3-72

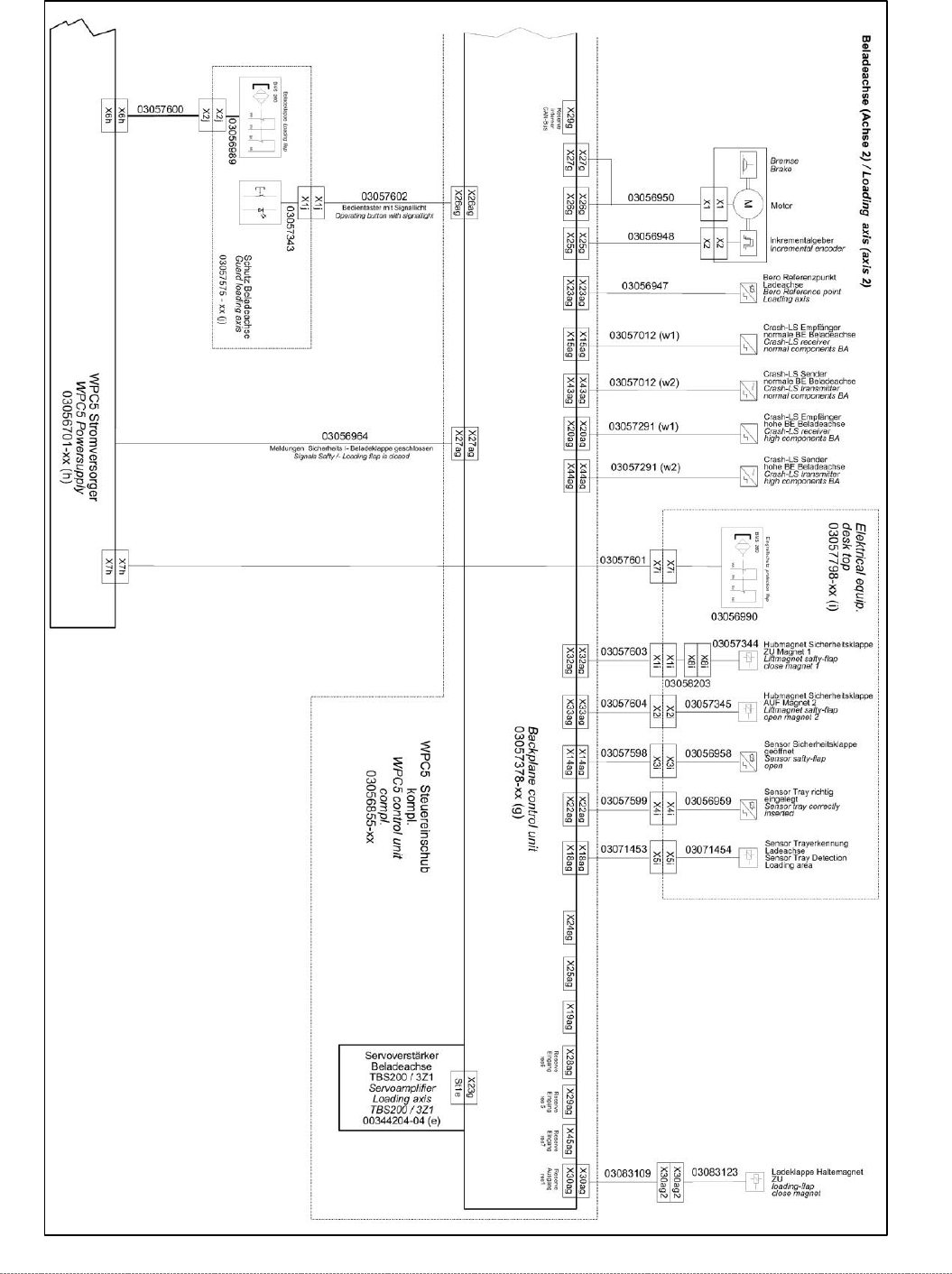

3.7.1.3.2 WPC6 Serien-Nr. < 3xxx:
WPC6 – Elektrics_1;
Serien-Nr.: < 3xxx
Service Manual WPC5 / WPC6
Page 3-73
WPC6 – Elektrics_2;
Serien-Nr.: < 3xxx
