Service Manual WPC5 / WPC6
Page 3-82
Spares
Overview
For the individual WPC types, different CO-Heights to be adjusted.
WPC4: a distinction is the setting for Standard- and High- Components.
Standard: 15mm; High: 23mm.
WPC5/6 < Serial-No. 3xxx:
a distinction is the setting for Standard- and High- Components.
Standard: 15mm; High: 29mm.
Option: On WPC5 from Serial No. B1485 it is possible, in context with a „Very High Force
Pick&Place Modul (VHF-30mm/70N), to set 35mm for high components.
WPC5/6 > Serial-No. 3xxx:
a distinction is the setting for Standard-, High- and Very high- components.
Standard: 15mm; High: 32mm; Very high: 35mm (45mm Optional)
Option: In context with a „Very High Force TWIN-Head (VHF-40mm/70N), the Position Very
high components is set to 45mm.
No.:
LS Type 1:
LS type 2:
Cable for Crash-LB CO Height
Control units
Fibre optic cable
2a/
2b
„Crash light barrier normal
components“
[03057282-xx]
„Crash-LS feed-axis normal
components”
[03108652-xx]
„Fibre opt.sensor WLL180T-M
preconfig SXa“
[03093294-xx]
„Fibre optic cable LL3-TV05
2m“
[03092407-xx]
3a/
3b
„Crash light barrier high
components“
[03057283-xx]
„Crash-LS feed-axis middle
compononents“
[03108654-xx]
„Fibre opt.sensor WLL180T-F
preconfig SXa“
[03093295-xx]
„Fibre optic cable LL3-TV05
2m“
[03092407-xx]
19a/
19b
„Crash-LS load-axis high
components“
[03108656-xx]
„Fibre opt.sensor WLL180T-F
preconfig SXa“
[03093295-xx]
„Fibre optic cable LL3-TV05
2m“
[03092407-xx]
10a/
10b
„Crash-LS normal components
BA“
[03057012--xx]
11a/
11b
„Crash-LS high components BA”
[03057291--xx]
„Crash-LS load-axis middel
components“
[03108658-xx]
„Fibre opt.sensor WLL180T-M
preconfig SXa“
[03093294-xx]
„Fibre optic cable LL3-TV05
2m“
[03092407-xx]
20a/
20b
„Crash-LS Beladeachse hohe
Bauteile WPC6“
[03108659-xx]
„Lichtleiter-Sensor WLL180T-F
vorprog SXa“
[03093295-xx]
„Fibre optic cable LL3-TV05
2m“
[03092407-xx]]
Table 1: Spares Overview Ligth barrier for component height.
Service Manual WPC5 / WPC6
Page 3-83

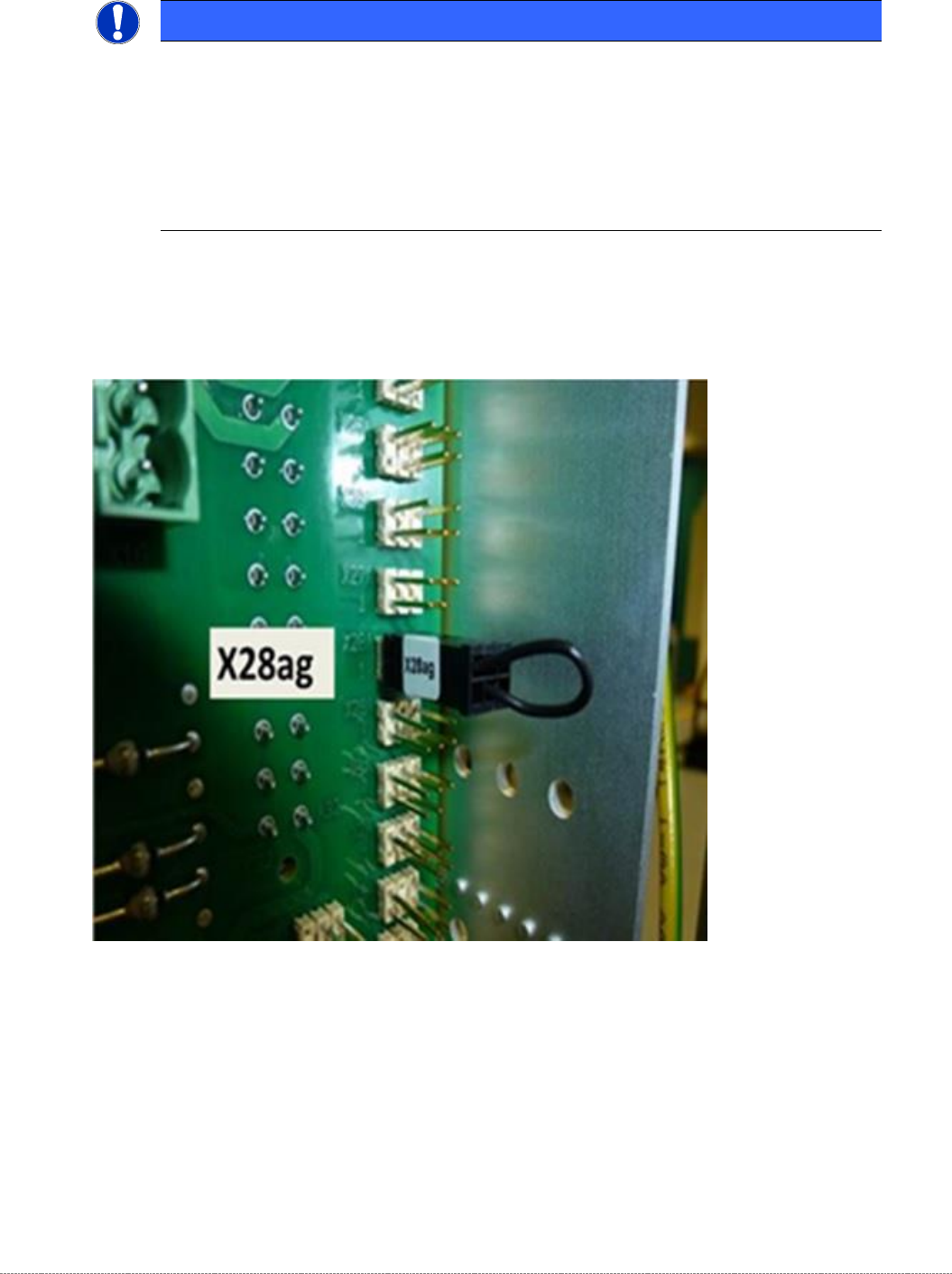

To enable the query of the third light barrier, for use on a "Very High Force TWIN-Head (VHF-
40mm/70N), a coding plug is required, which is plugged into the backplane in the control slot
on X28.
Service Manual WPC5 / WPC6
Page 3-84
At WPC4 and at WPC5 / WPC6 up to serial no. 3xxx-, light barriers with normal electrical conection are in
use, which were directly connected to the WPC control unit (called
LB type 1 in the following).
At WPC5 / WPC6
from serial no. 3xxx-, new light barierer are in use, which are using a fibre optic cable.
Those are connected to a control unit, which is finaly connected to the WPC control unit (called LB type 2 in
the following).
Overview
LB Type 1
1. Fixing screw for Crash light barrier.
2. Fixing angle Crash light barrier (transmitter)
3. Cable fixing Crash light barrier.
4. Crash light barrier normal height Components, with
LED
5. Crash light barrier high components, with
LED.
Overview LB Type 2
1. Fibre optic cables on holders (here Receiver).
2. Fibre optic cables on holders (here
Transmitter).
3. Cable for Crash light barrier CO heights.
4. Control units:
„Fibre opt.sensor WLL180T-M preconfig SXa“
[03093294-01]
„Fibre opt.sensor WLL180T-F preconfig SXa“
[03093295-01]
Data sheet see attachment of this document!
