AV131
MAINTENANCE MANUAL
4.2 Pneumatic Controls
D79MEC-14-030-A0
4.2-1
4.2. Pneumatic Controls
D79MEC-14-030-A0

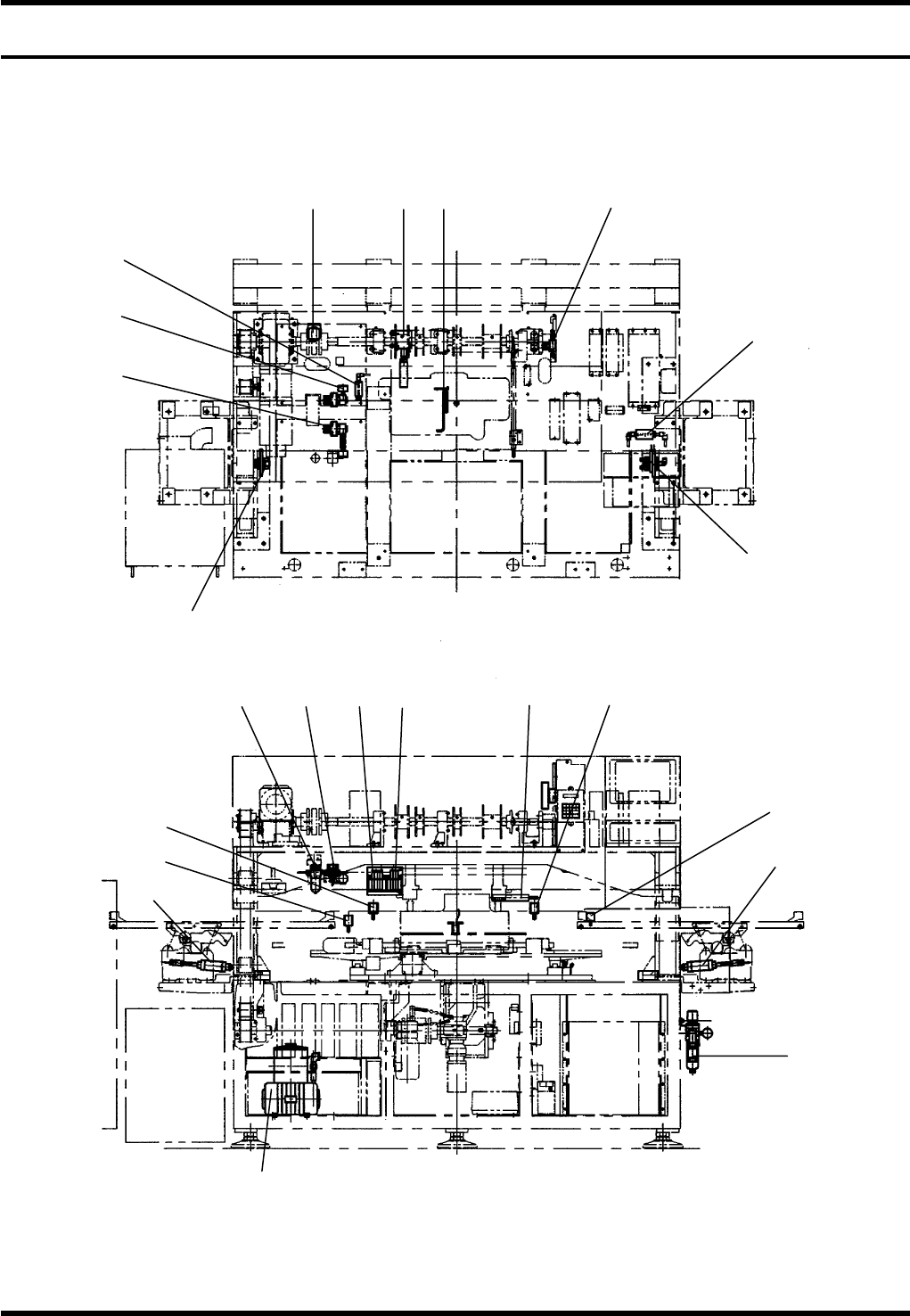

4.2.1 Pneumatic Control Unit Arrangement
1.2.3.
4.
5.
6.
7.8. 9. 10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
11.
22.
AV131
MAINTENANCE MANUAL
4.2 Pneumatic Controls
D79MEC-14-030-A0
4.2-2
1.
1. Air blow
2. Chuck slide stop
3. Exhaust cleaner
4. Solenoid valve for air blow
5. Regulator (For tape cutter)
6. Regulator (For air blow)
7. Solenoid valve for chuck (26 mm)
Solenoid valve for chuck (52 mm)
Transfer pitch
8. Solenoid valve for rotary chuck (1)
Solenoid valve for rotary chuck (2)
Solenoid valve for rotary chuck (3)
Solenoid valve for rotary chuck (4)
9. Change valve
10. Lubricator
11. Cylinder for tape cutter damper
12. Cylinder for positioner
13. Cylinder for left rail
14. Vacuum pump
15. Air set
16. Cylinder for right rail
17. Cylinder for PCB stopper
18. Cylinder for J.W. set
19. Safety valve
20. Solenoid valve for right rail
Solenoid valve for positioner
21. Solenoid valve for left rail
22. Solenoid valve for J.W. set
Solenoid valve for tape cutter damper
Solenoid valve for chuck slide stop
AV131
MAINTENANCE MANUAL
4.2 Pneumatic Controls
D79MEC-14-030-A0
4.2-3
4.2.2 Pneumatic Circuit Diagram
