11 Issue 06, December 2020

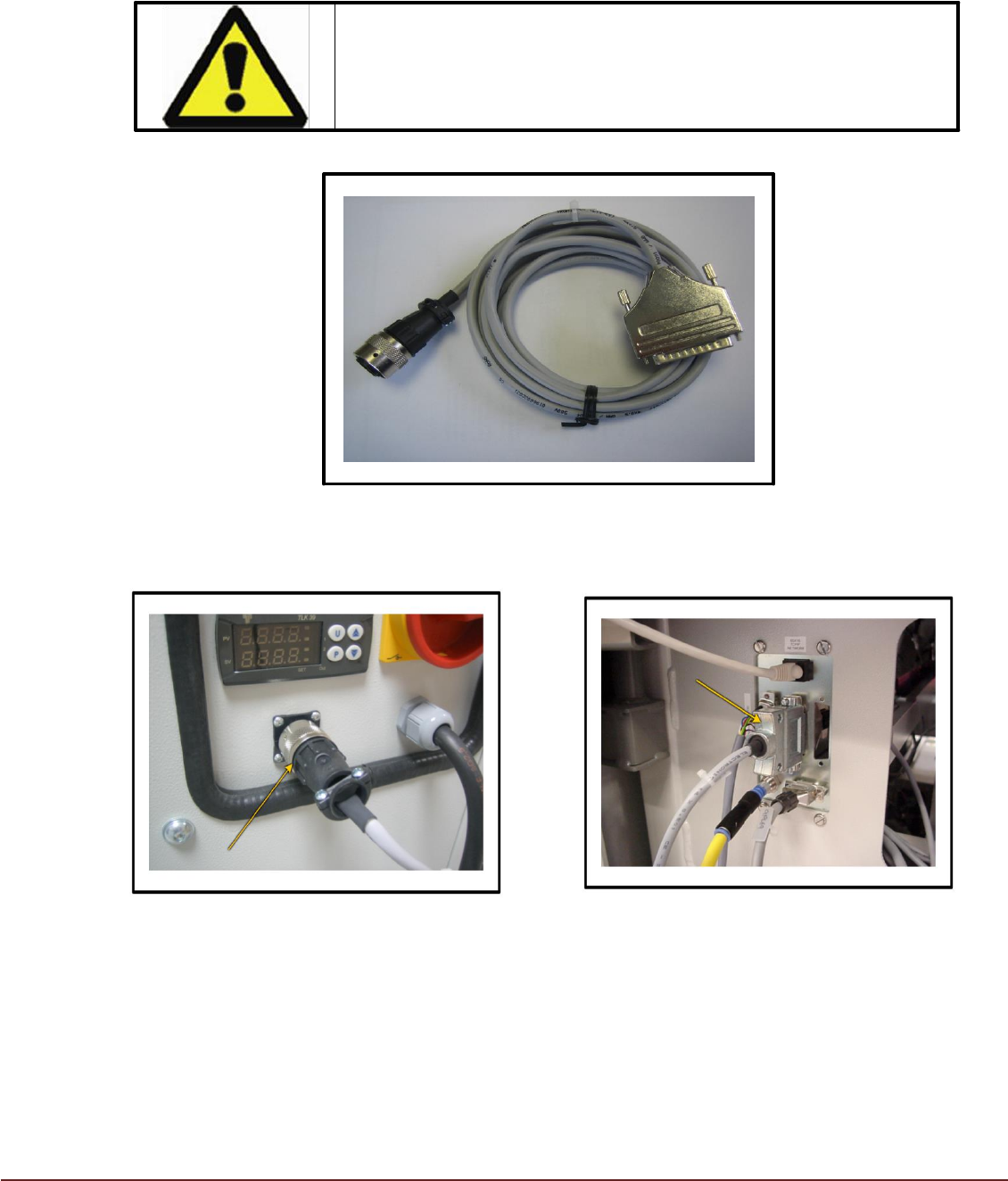

Temperature Sensor loom
WARNING
Temperature Input Signal Voltage = 0 – 10Vdc.
Under no circumstances must voltages exceeding 10Vdc be
applied to the input connection.
FIG 6
Connect the Temperature Sensor Loom between the TCM and the Printer Service Plate
FIG 7 FIG 8
12
Issue 06, December 2020

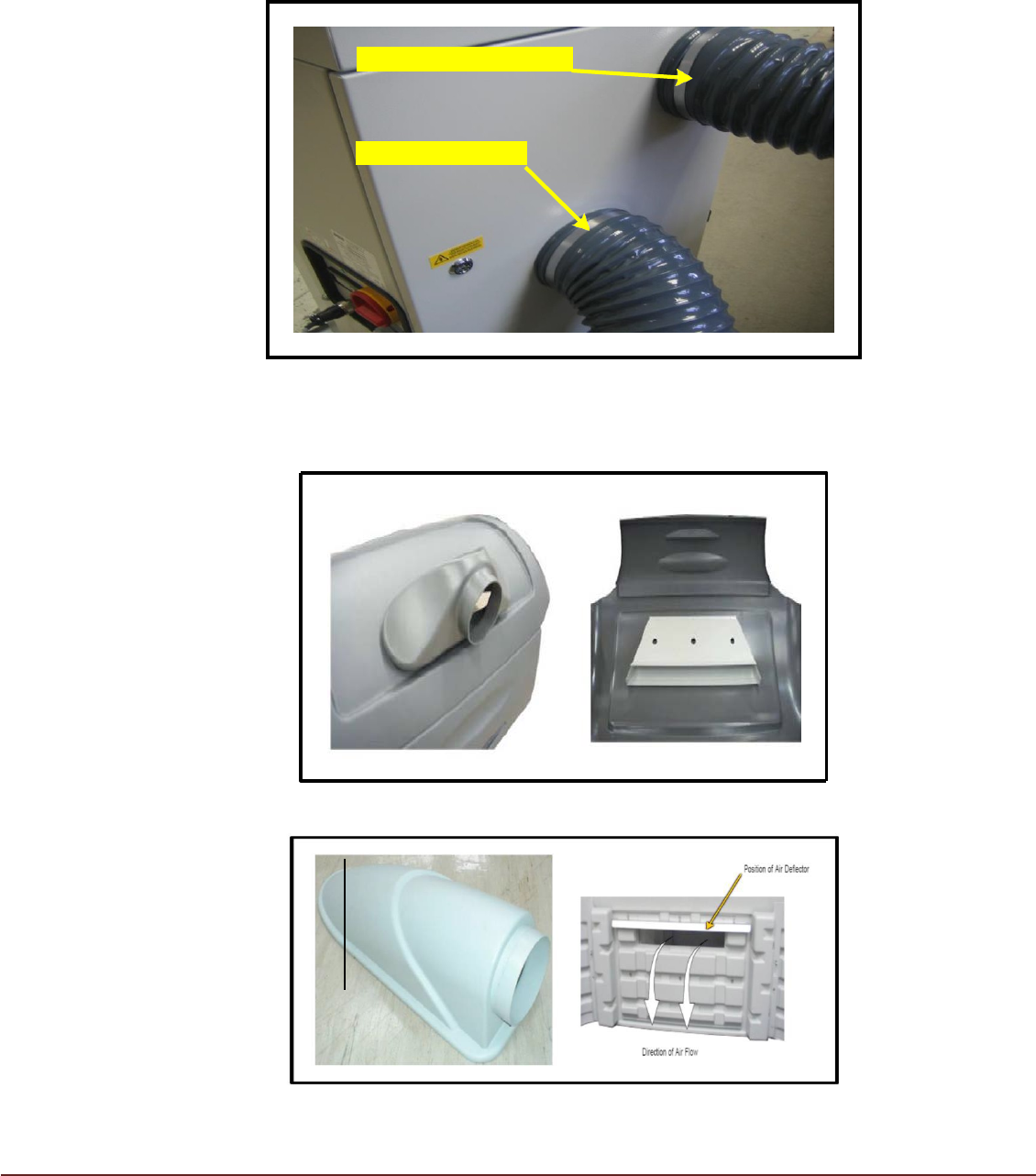

Conditioned Air Outlet
Printer Air Return
Air Ducting Hose
Connect Air Ducting Hoses to the TCM using the supplied hose clips. The upper port is
the conditioned air outlet. The lower port is for air returning from the Printer.
FIG 9
Connect TCM Conditioned Air Outlet ducting to the Printer Air Inlet duct using the
photographs below for reference.
Air Duct A – Outer and Inner
Air Duct B – Outer and Inner
13
Issue 06, December 2020

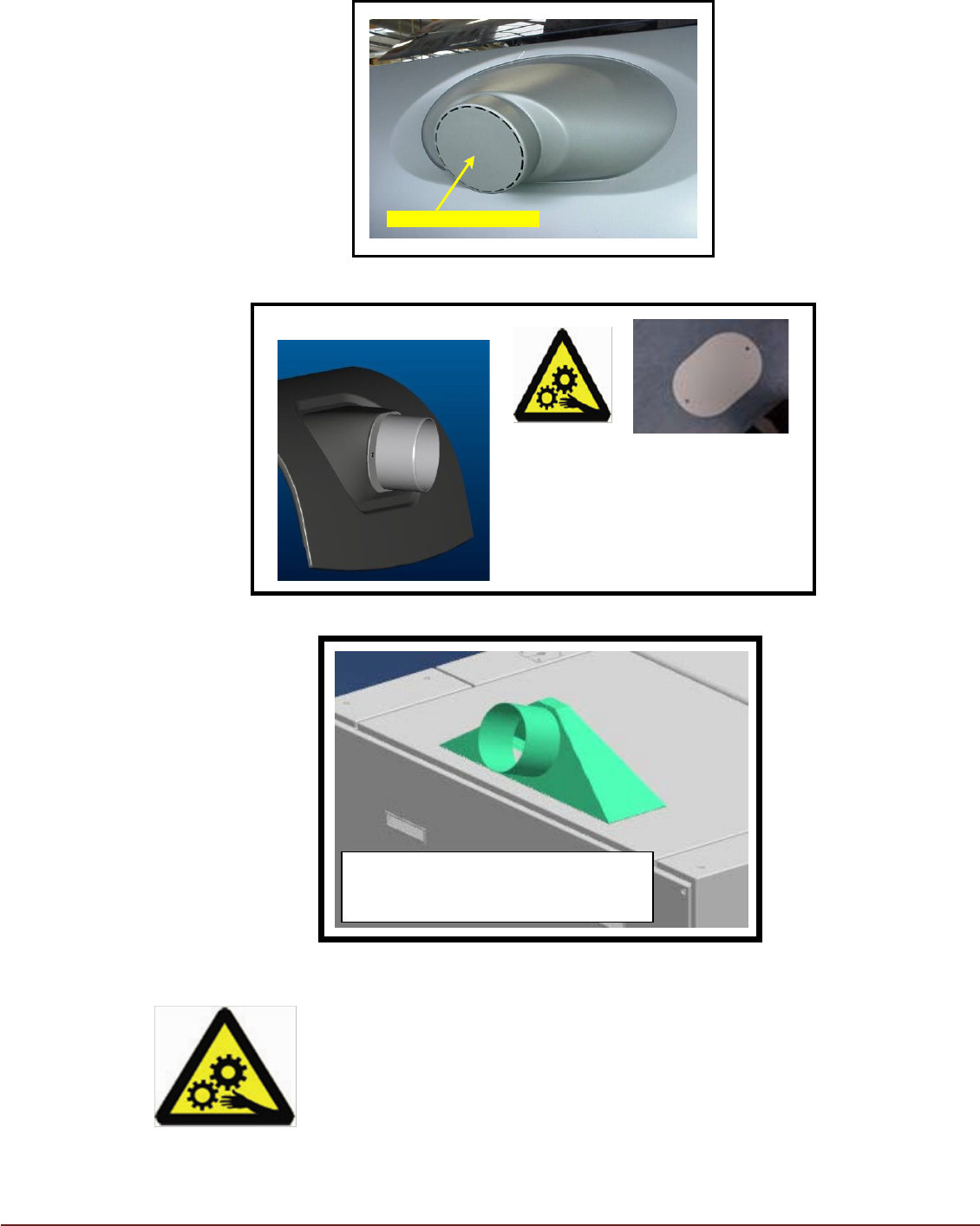

Remove Blanking Plate
WARNING
If TCM or ducting is removed
fit supplied blanking plate
(Part No. 181702) before
operating printer.
WARNING
BEWARE OF MOVING PARTS. Do not operate printer with
blanking plate removed and TCM ducting not fitted.
Air Duct C
Air Duct D
Remove blanking plate and fit Air
In duct and internal air deflector.
Air In Duct E NeoHoz
