8 Issue 06, December 2020
Power Supply Connection
WARNING
All electrical connections should be carried out by suitably
qualified personnel ensuring relevant rules and regulations
are observed.
WARNING
To reduce the risk of fire, electric shock, or injury:
Connect to a properly earthed/grounded outlet.
Use only as described in the manual.
Isolate from power supply before opening covers.
WARNING
LETHAL VOLTAGE. Dangerous voltages exist within this
equipment. Ensure all electrical covers and main machine
covers are fitted before operating equipment.
WARNING
ELECTRICAL HAZARD. If any damage to the electrical cable
is found the unit must not be connected. Installation is to
cease until inspected by a qualified electrician.
1. Check the integrity of the electrical power supply cable.
2. Test the mains input at the isolated supply is the correct voltage and frequency
before proceeding.
3. Connect to the mains supply.
9 Issue 06, December 2020

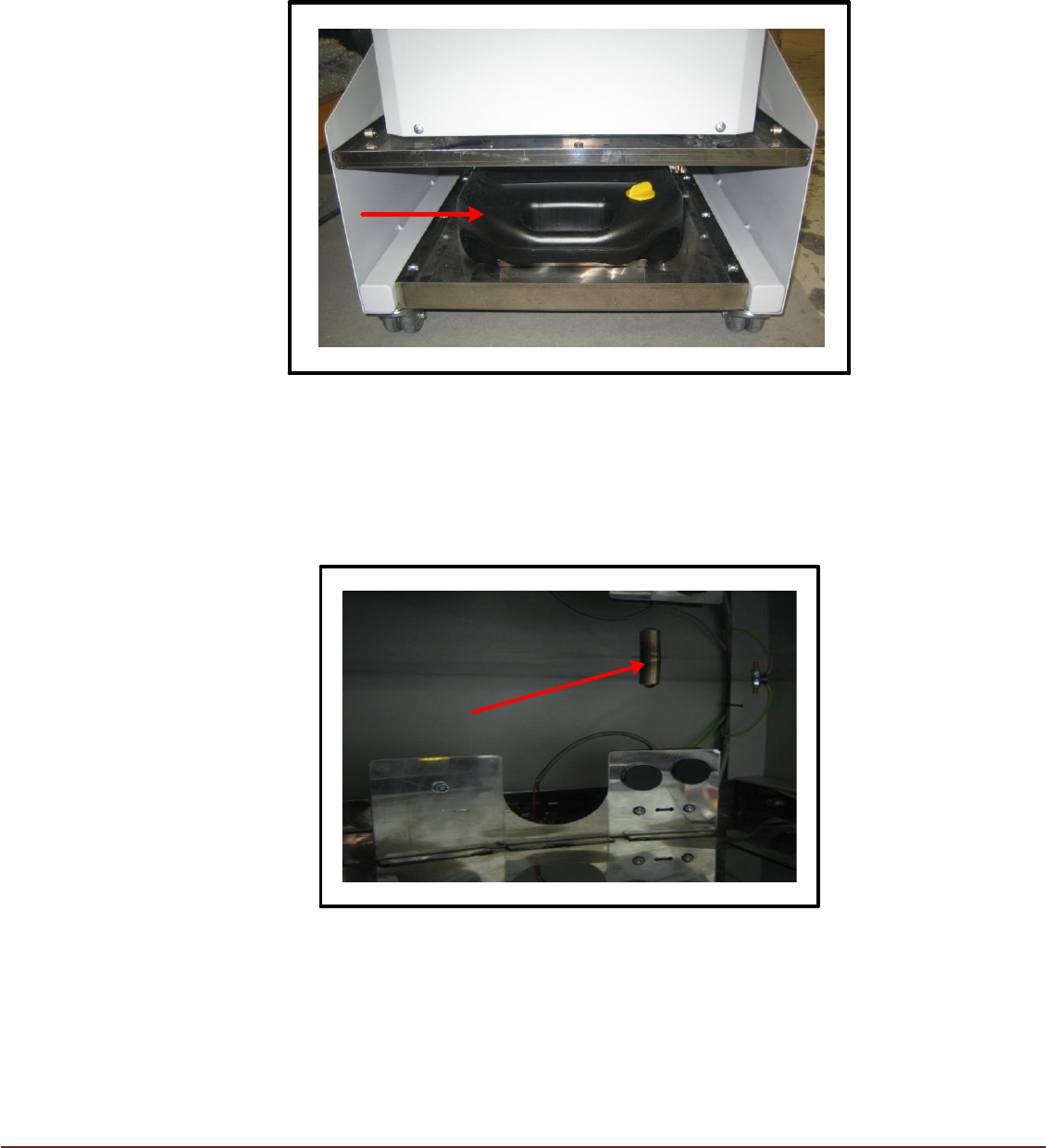

Condensate Collection
Condensate is collected in the plastic container at the base of the machine and is
accessed from the rear (FIG 1).
FIG 1
Alternatively, condensate can be diverted directly to a drain via pipe work (not included)
connected to the spout on the underside of the condensate tray (FIG 2 – Condensate
Collector removed).
FIG 2
10 Issue 06, December 2020

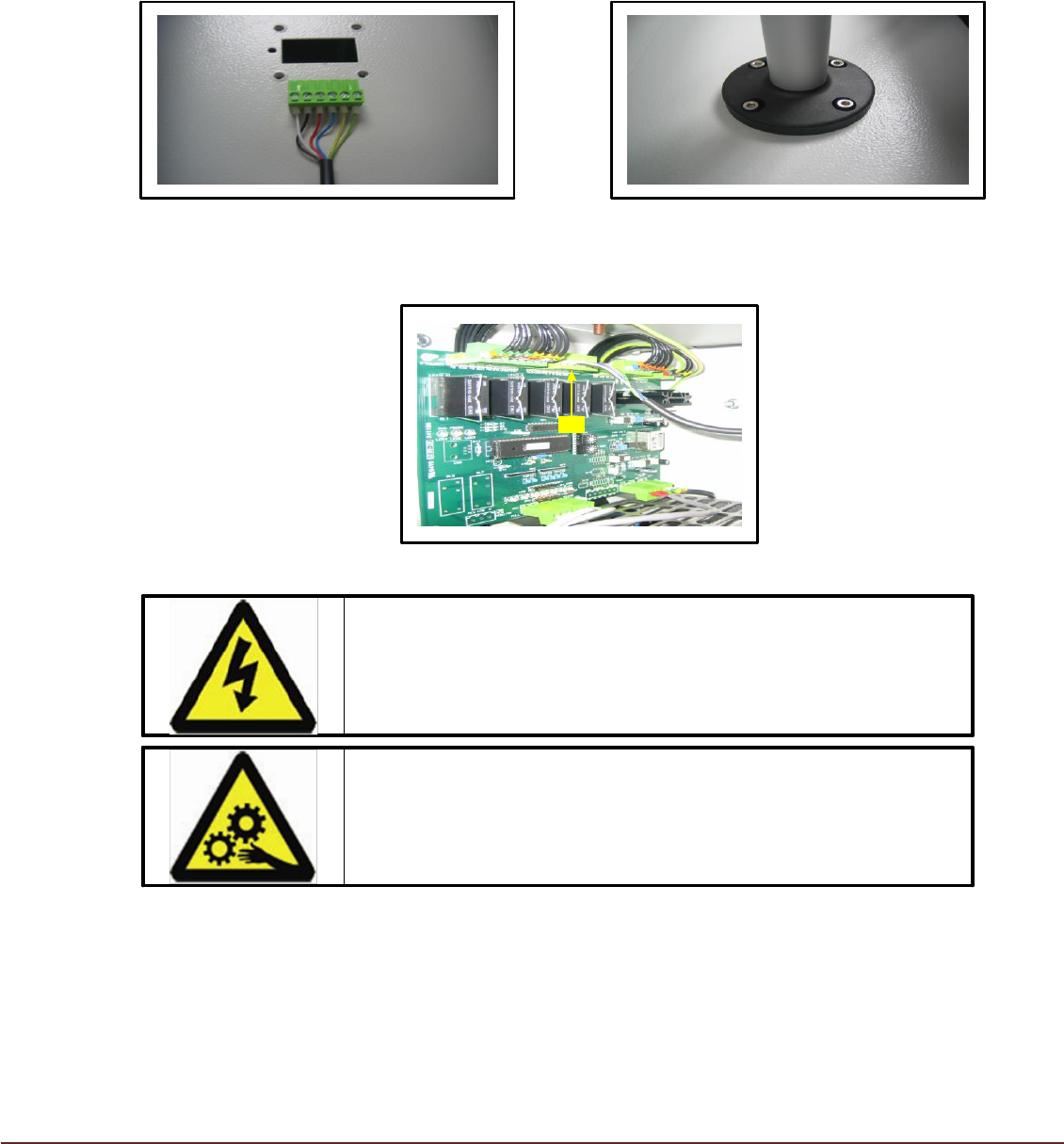

Indicator Beacon
Remove the indicator beacon from its protective packaging. Pass the beacon loom
connector through the plenum base into the electrical compartment (FIG 3) and secure
the beacon with the supplied fasteners (FIG 4).
FIG 3 FIG 4
Connect the beacon loom to the Control PCB connector CN2.
CN2
FIG 5
WARNING
ELECTRICAL HAZARD. Ensure Isolator is in the OFF
position before opening access door.
WARNING
BEWARE OF MOVING PARTS. Allow time for fan rotation to
cease before opening access door.
