23 Issue 06, December 2020
Condenser Fan/Coil
WARNING
BEWARE OF MOVING PARTS. Allow time for fan rotation to
cease before opening access door.
WARNING
ELECTRICAL HAZARD. Ensure Isolator is in the OFF
position before opening access door.
The condenser fan intake grilles should be visually checked on a regular basis to ensure
they are free from obstruction with no impedance to air flow.

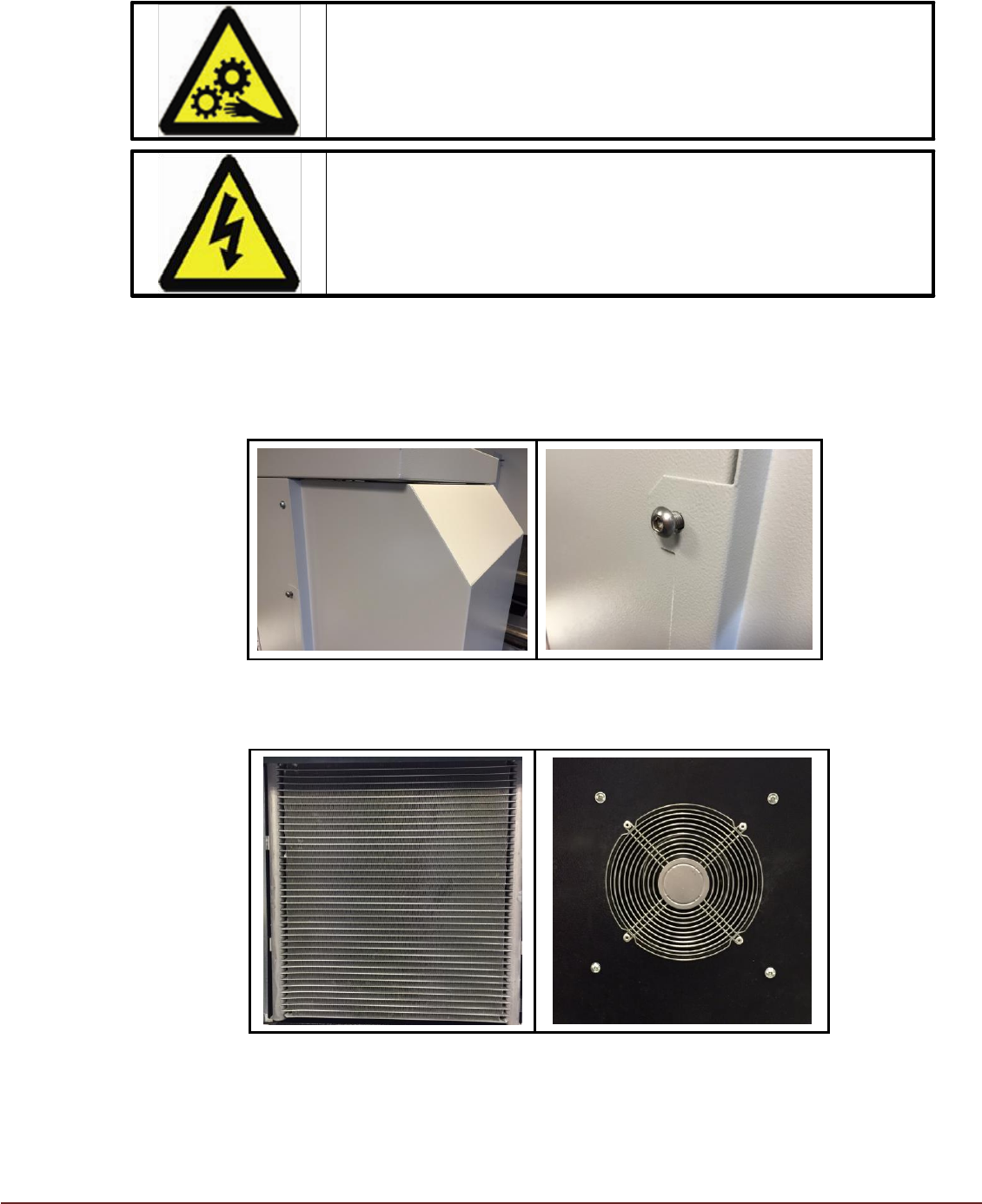

In order to access the Condensing unit, the cover must be removed using the 4x Hex
Socket screws. (Fig 26).
FIG 26
Check that the Condenser Core and fan grille are free from obstruction.
FIG 27
If it is thought likely the underside of the condenser coil may be obstructed, air applied
as shown below may help improve TCM operating performance (FIG 27).
24 Issue 06, December 2020
Scheduled Maintenance
Scheduled Maintenance Task
Frequency
Date
Comments
Engineer
Check/Replace TCM Filter
Monthly
Check/Clean Condenser Fan intake is clear
Monthly
Check Condensate Collector for leaks and level sensors
are in place
Monthly
Check Condensate drainage path is clear
Monthly
Inspect Flexible ducting Connections
Monthly
Check condition of mains input lead
Monthly
Check condition of Temperature sensor Loom
Monthly
Check all earth leads and bonding points are connected
Monthly
Check/Clean Condenser Fan
Yearly
Check/Clean Evaporator Fan
Yearly
Check/Clean Condenser Coil
Yearly
Check/Clean Evaporator Coil
Yearly
25 Issue 06, December 2020
Spare Parts List
ITEM
PART
NUMBER
150mm Ducting Hose Clip
114018
Access Key
173316
Solid State Relay 25A
173729
PID Controller
173731
Condensate Tank
173744
Heater Element 1kW
173772
Beacon Lamp 30V/5W
178761
Filter Printer Air in/TCM Discharge
181944
Control PCB
181984
MCB 6A Type C
181985
MCB 10A Type C
181986
Power Supply 24Vdc
181987
Overflow Tray Cap
181988
Contactor 24Vdc
181989
Condensate Tank Level Sensor
181995
ACU High Pressure Sensor
202315
Relay (Control PCB)
202339
Air Conditioner Module
202340
MCB 1A Type C
202405
