MN-E00372EDW-XX_B(1).pdf - 第130页
CS DWG NO. OF REV DESCRIPTION SHEET DESCRIPTION NO. PART NO. PART INFORMATION AND IS NOT TO BE USED OR DO NOT SCALE REPRODUCED WITH OUT PERMISSION OF THIS DRAWING CON TAINS PROPRIETARY ALL CAPACITORS ARE IN µ F ALL RESIS…
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV

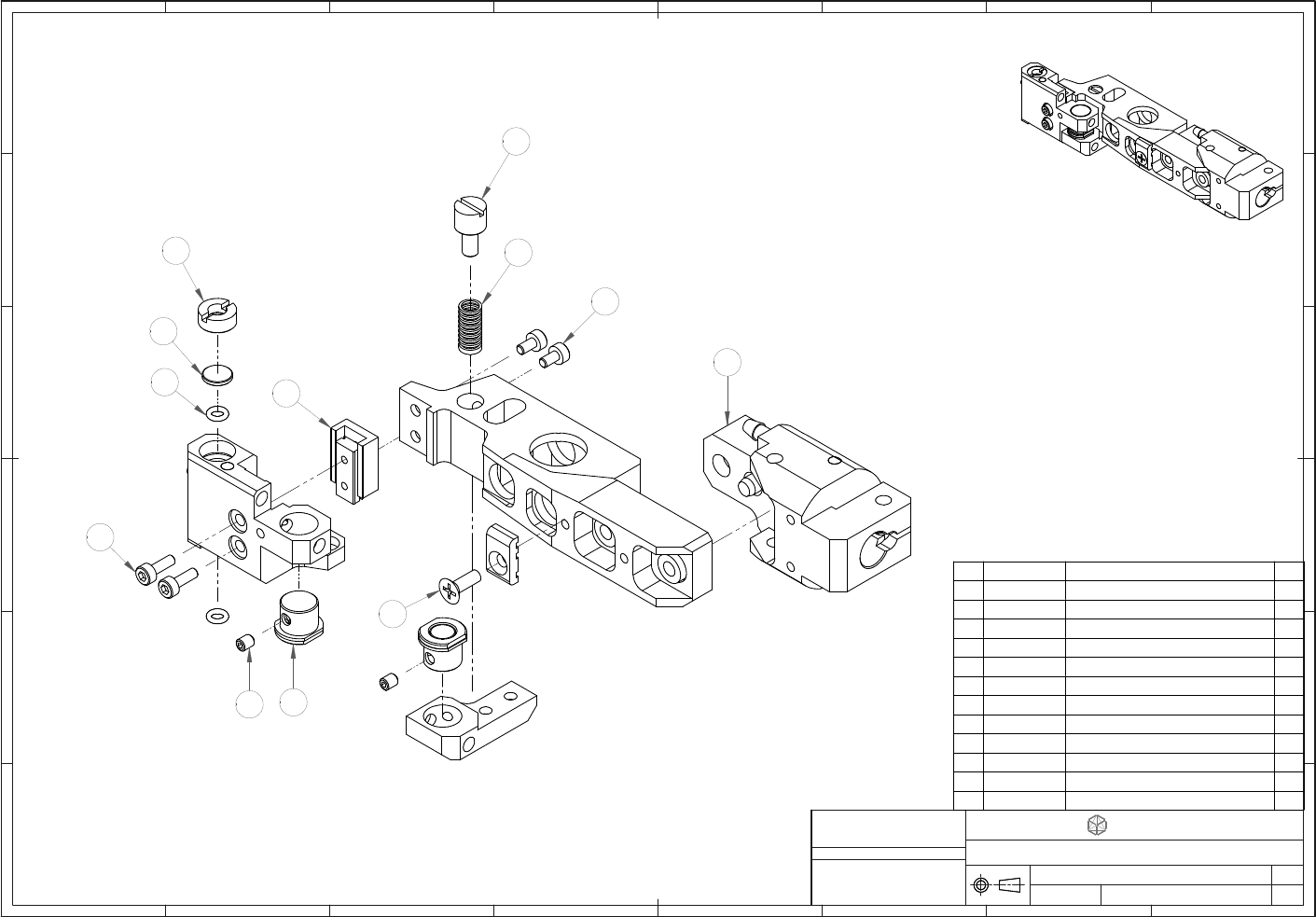

(FA)FLIP ARM
01-E35874
CS-01-E35874
11
FROM: 01-E35874_G_2015.03.25
G1
G
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 01-21248 (BA) CONTACT SNR ASSY (WBCS) 2
2 01-E64311 (FA)FLIP ARM BASE 1
3 20-44435 FLAT HD PHI SCREW M2X6 1
4 20-60423 SOC HD CAP SCREW M1.6X3 2
5 20-60425 SOC HD CAP SCREW M1.6X5 2
6 20-70431 SOC SET CUP SCREW M2 X 2.5 2
7 24-00777 LM GUIDE HSR10R2UUC1M+145LSPM-II 1
8 26-F08397 (FA) PRELOAD ADJUSTING SCREW 1
9 26-G79206 (FA) GLASS LOCKING RING 1
10 36-50004 SAPPHIRE PAD 1
11 72-08002-1 O-RING 0.8 X 1.9 ID. 2
12 75-10079 COMP. SPRING 0.4DX3.60DX12.0LG 1
Assembly View
3
4
5
6
7
8
9
10
11
12
1
2
7-3
(FHFC) FLIP HEAD
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV

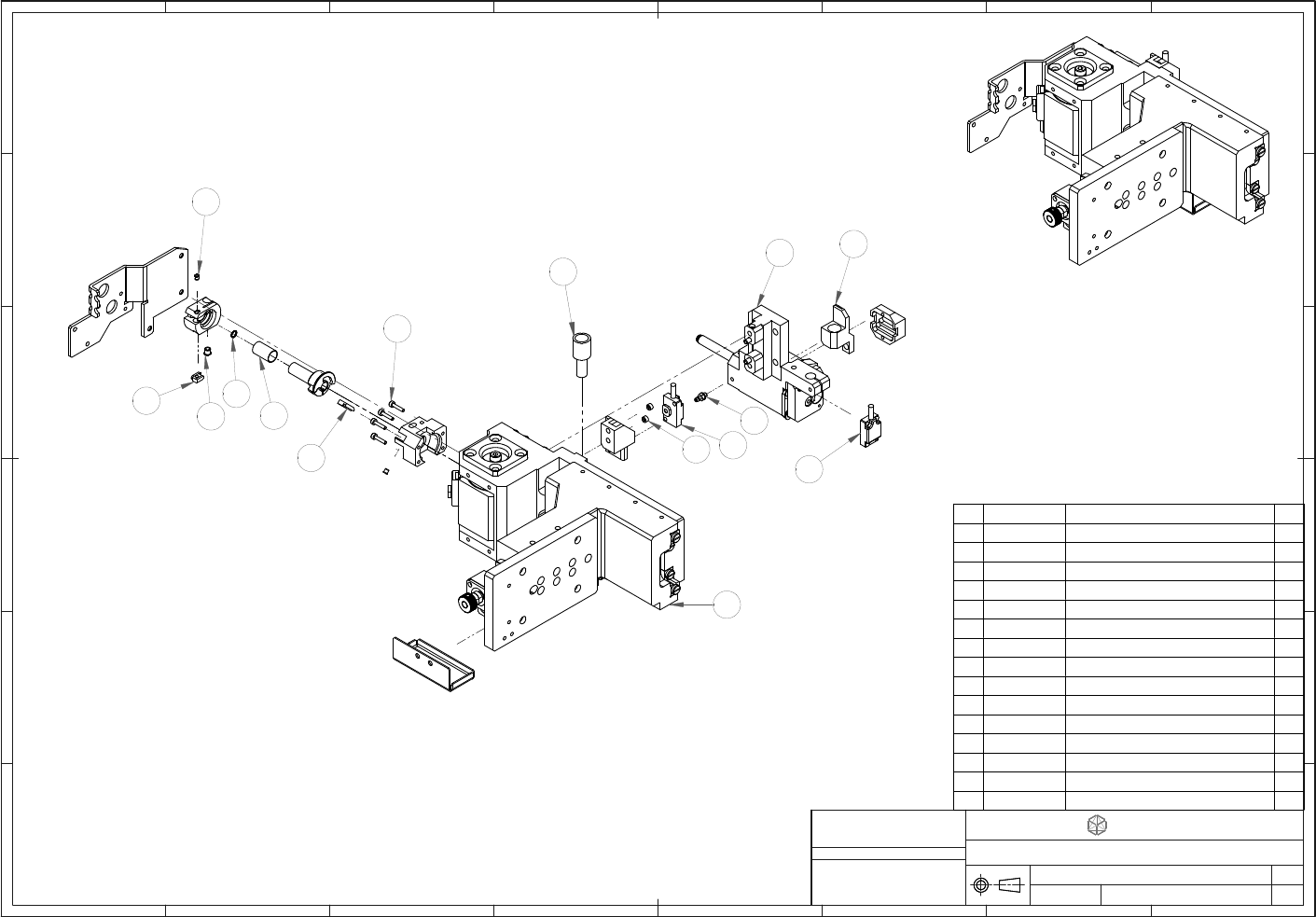

(FH)FLIP HEAD TABLE ASSY
01-E44120
CS-01-E44120
11
FROM: 01-E44120_C_2015.06.15
C1
C
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 01-E16809 (FH)Z MAGNET SPRING 1
2 01-E35882 (FH) Z SCALE ASSY. 1
3 01-E44101 (FH)FLIP HEAD Z/X TABLE 1
4 01-E57328 (FH) Z & ROTATION ASSY 1
5 02-E03332 (FA)MICRO-E ENC 1
6 02-E11958 (FH) Z ENCODER ASSY. 1
7 20-60439 SOC HD CAP SCREW M2 X 10 4
8 26-F68819 (FH)PLASTIC SPACER 1
9 26-F68821 (FH)CABLE CLAMP-A 1
10 26-F68822 (FH)CABLE CLAMP-B 1
11 26-F68823 (FH)INSERT NUT M2 2
12 26-F68824 (FH)INSERT NUT M3 1
13 26-G08794 (FH) Z SLIDE STOPPER 2
14 31-40469 BARB FITTING M-3AU-3 1
15 72-06041 O-RING 0.6X4 ID MM 1
Assembly View
7
9
10
11
12
13
14
15
1
2
3
4
5
NOTE:02-E03332 is included of 01-E57328 in the assembly.
8
6
7-4
(FHFC) FLIP HEAD
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV

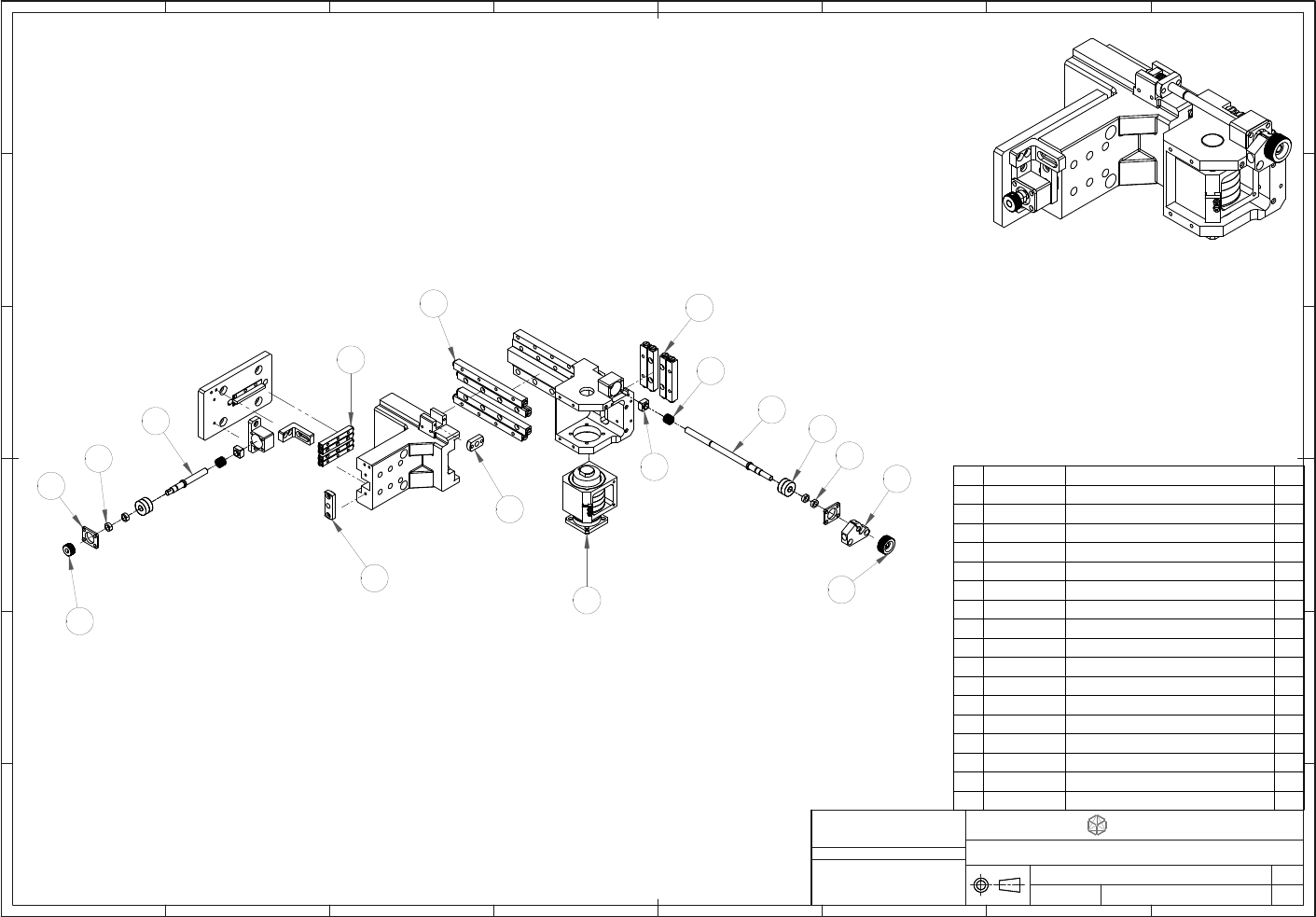

(FH)FLIP HEAD Z/X TABLE
01-E44101
CS-01-E44101
11
FROM: 01-E44101_D_2015.06.15
D1
D
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 07-L00833-02 (FH)Z ROD MOTOR ASSY 1
2 24-00193 ANGULAR CONTACT BEARING AC6-16 2
3 24-00301 CROSS ROLLER WAY CRWG 3-50 1
4 24-00377 CROSS ROLLER WAY CRWG 3-100 1
5 24-40021 CROSS ROLLER WAY G2-45 1
6 26-E40834 A/C BEARING COVER D16 2
7 26-E40853 LOCK NUT M6X0.75 2
8 26-F68686 (FH)ANTI-BACKLASH LEADSCREW NUT 2
9 26-F68688 (FH)KNOB 1
10 26-F68689 (FH)LEADSCREW NUT 1
11 26-F68691 (FH)X LEADSCREW 1
12 26-G31269 (FH)LEADSCREW CLAMP 1
13 26-G52923 (FHFC)LEADSCREW NUT 1
14 26-G52925 FHFC)LOCK NUT M6X0.75 2
15 26-G52926 (FHFC)KNOB 1
16 26-G52927 (FHFC)Y LEADSCREW 1
17 75-00158 COMPRESSION SPRING C0360-032-0380M 2
Assembly View
2
3
4
5
6
7
8
9
11
14
15
16
17
1
10
12
13
7-5
(FHFC) FLIP HEAD
