MN-E00372EDW-XX_B(1).pdf - 第15页
CS DWG NO. OF REV DESCRIPTION SHEET DESCRIPTION NO. PART NO. PART INFORMATION AND IS NOT TO BE USED OR DO NOT SCALE REPRODUCED WITH OUT PERMISSION OF THIS DRAWING CON TAINS PROPRIETARY ALL CAPACITORS ARE IN µ F ALL RESIS…
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV
(MI83)G2 INPUT COMBO MAGAZINE ELEVATOR
01-E38501
CS-01-E38501
22
FROM: 01-E38501_I_2015.06.04
I1
I
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
02-E01678
(MI) BASE MAGAZINE DETECTING SENSOR
02-E01666
(MI) LEVATOR Z HOME SENSOR
02-E01677
(MI) BASE MAGAZINE READY SENSOR
02-E31126
(MI) LF ON TRACK SENSOR
02-E04439
(MI) MAGAZINE BUMPER SENSOR
02-E01666
(MI) INPUT KICKER JAM SENSOR
02-E14608
(MI) LE. MAG. SECURE SENSOR
02-E14603
(MI) MAG Y MOTOR HOME SNR
02-E14817
(SL) PICK HEAD Y HOME SNR
02-E03924
(MI) PICK HEAD Z HOME
(MI) LE. MAG. EXIST IN CLAMP
02-E01669
(MI) STACK LOADER READY SENSOR
02-E01682
(MI) MAG CLAMP LIMIT SNR
02-E01667
(MI) INPUT KICKER HOME SENSOR
02-E14878
(MI) ELEVATOR CLAMP UP SENSOR
02-E14816
(SL) PICK HEAD SAFETY SNR
02-E01668
(MI) STACK LOADER CLOSE SENSOR
02-E01670
(MI) STACK LOADER OPEN LIMIT SENSOR
02-E01671
(MI) UPPER PLATFORM MAG BUFFER FULL SNR
02-E10878
(MI) MAG CLAMP UP SNR
53-00790
REFLECTIVE SENSING FIBER
02-E01685
02-74514
(LL83) METAL LF SNR
1-2
(MI83)G2 INPUT COMBO MAGAZINE ELEVATOR
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV
(MI) G2 COMBO STACK LOADER ASSY.
01-E33259
CS-01-E33259
11
FROM: 01-E33259_F_2015.06.04
F1
F
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 01-E33265 (MI) COMBO LOADER Y ASSY. 1
2 01-E33266 (MI) COMBO LOADER Z ASSY. 1
3 02-E04238 (MI) L/F VAC SOL ASSY 1
4 02-E04240 (MI) L/F WEAK BLOW SOL ASSY 1
5 02-E06952 STACK LOADER VAC SWITCH 1
6 02-E31126 (MI) LF ON TRACK SENSOR ASSY 1
7 33-30003 REGULATOR GRO-M5 1
8 33-40045 VACUUM EJECTOR ZH10DS-01-01-01 1
9 53-00112 PANEL MOUNT ADAPTER ZS-26-B 1
10 S01-E46387 (LL) PICK HEAD AUTO TILT AND FLOAT HEAD 1
Assembly View
1
2
8
7
NOTE:02-E31126 is included of 01-E18704 in the assembly.
9
3
4
5
6
10
1-3
(MI83)G2 INPUT COMBO MAGAZINE ELEVATOR
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV

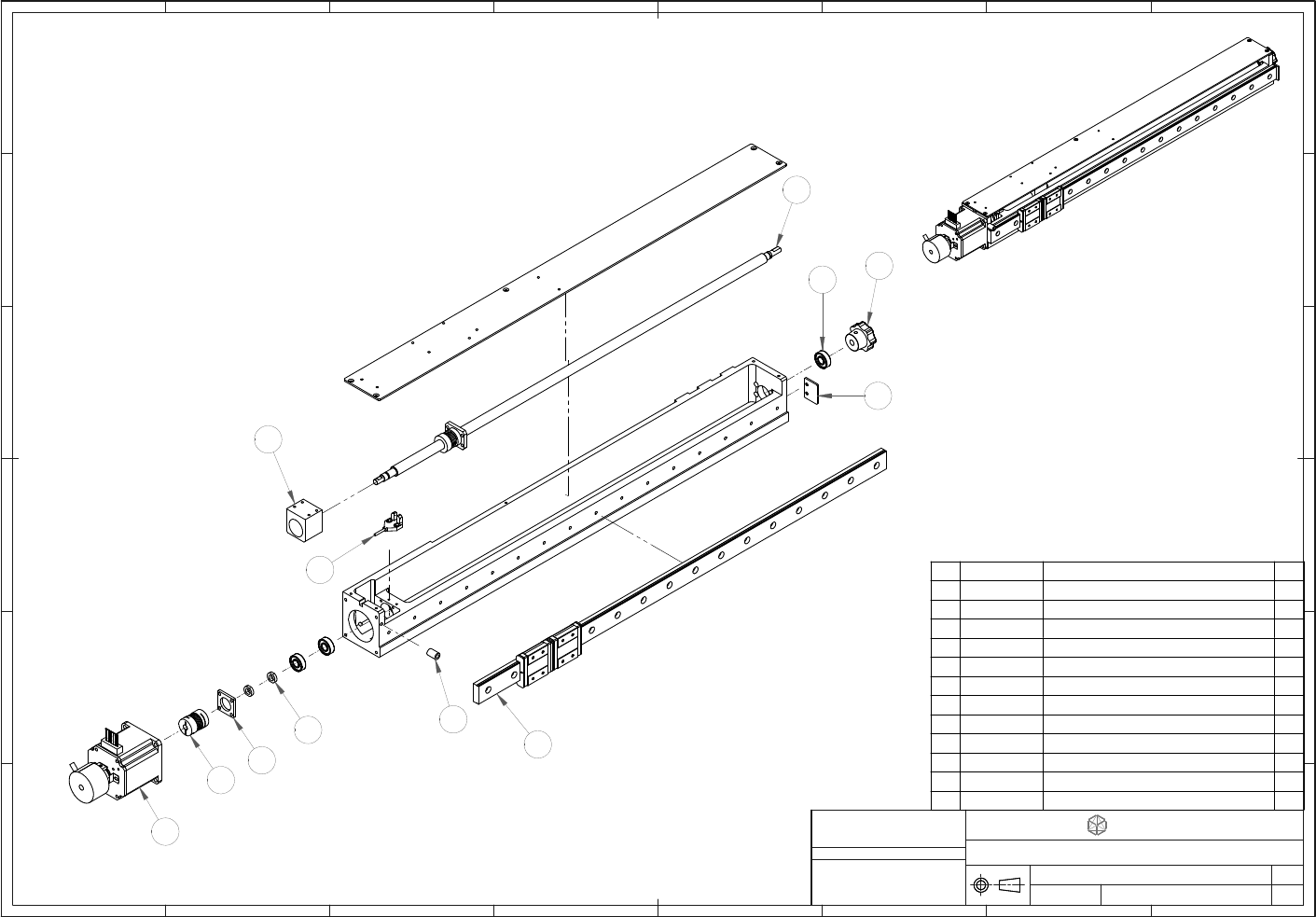

(MI) COMBO LOADER Y ASSY.
01-E33265
CS-01-E33265
11
FROM: 01-E33265_C_2015.03.14
C1
C
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 01-E33278 7/16"-8 LEADSCREW ASSY - 440 1
2 02-E03921 (MI) PICK HEAD Y MOTOR & ENCODER ASSY 1
3 02-E14817 (SL) PICK HEAD Y HOME SNR 1
4 24-11083 BALL BEARING 8X19X6 698ZZ 3
5 26-E37903 STOPPER 1
6 26-E38502 STOPPER 1
7 26-E40855 LOCK NUT M8X1 2
8 26-E70076 BEARING COVER ID16 1
9 26-G22301 (SL) Y LM GUIDE 1
10 26-G22386 (SL) Y NUT 1
11 71-00011 BELLOW COUPLING DKN 15/26-6.35H7-6.35H7 1
12 74-40002 KNOB P-2441W-6.5-32 1
Assembly View
4
5
6
7
8
9
10
11
1
2
3
12
1-4
(MI83)G2 INPUT COMBO MAGAZINE ELEVATOR
